Video to Full HD Mini Display Port Scaler

$175.65
$153.20 USD
Freight Calculator


Availability In Stock
Product No. 764
Condition New
Warranty 12 Months
Manufacturer Cypress Technology
Cypress Technology Product No CVMDP-1080P
Location Australia

Product Description

The Video to Full HD Mini Display Port Scaler is designed to upscale any Composite video (CV)/S-Video (SV) input source into Mini Display Port output with a wide-range of selectable resolutions (up to 1080p). It allows you to display your Composite video/S-Video sources on your TV/Monitor via the Mini Display Port interface.

The Mini Display Port, a smaller version of the Display Port interface, is a digital display interface standard introduced by Apple Computers. Many of Apple's recent products utiliZe the Mini Display Port interface, with many third-party manufacturers also beginning to implement the Mini Display Port interface into their displays.

With this scaler box, you could for example connect your Composite Video source (such as DVD player, Set-top Box etc) to a display with A Mini Display Port (such as Apple's Cinema Display LCD monitors). Selectable video resolutions are VGA, 480p, 576p, 720p, 1080i, and 1080p@50/60, with the unit also transferring audio allowing you to enjoy both High Definition images and sound consistently.

Product Details

Features:

  • Scales up Composite video or S-Video to HDTV 1080p format
  • Automatic lipsync (audio delay) ensures audio video synchronization
  • Input video systems NTSC/PAL
  • Supports 8 bits on Mini Display Port output up to 6M distance
  • HQE (High Quality Image Enhancer) function
  • Digital Noise Reduction – Minimises picture noise, reproducing images true to the original
  • Block Noise Reduction – Effectively minimises all MPEG noise, Improving the digital quality of HDTV broadcasts in particular, where block noise happens most
  • MPEG Noise Reduction – Reduces mosquito noise for MPEG video images without losing detail
  • Motion adaptive 3D Y/C separation comb filter
  • 3D (frame based) motion adaptive noise reduction
  • Advanced 3D motion adaptive de-interlace
  • Automatic 2:2/3:2 film mode detection
  • Composite video / S-Video input selection button
  • Automatic resolution selection and individual resolution selection button
  • Mini Display Port output with RGB colour space design

Specifications:

  • Input Ports: Composite Video, S-Video, Audio R/L, RCA Jack
  • Output Ports: MiniDisplayPort, R/L phone jack
  • Output Resolution: VGA, 480p, 576p, 720p, 1080i, and 1080p@50/60
  • Input Signal Levels: Video at 1 Vp-p, 75Ω, Y: 1.0 Vp-p, 75Ω, C: 0.286 Vp-p, 75Ω, Audio R/L: 0.5Vrms
  • Video System: NTSC, PAL
  • Audio Sampling Rate: 48KHz
  • Power Supply: 5VDC/2.6A (US/EU standards, CE/FCC/UL certified)
  • ESD Protection: ±10kV (air-gap discharge), ±6kV (contact discharge)
  • Dimensions (mm): 100(W) x 157(D) x 25(H)
  • Weight (g): 332
  • Chassis Material: Aluminium
  • Colour: Silver
  • Power Consumption: 5W (max)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20~90% RH (no condensation)

Dimensions and Weight

Depth
12.5 cm
4.92 inches
Width
15.0 cm
5.90 inches
Height
3.0 cm
1.18 inches
Weight
0.450 kg
0.99 lb

Carton Details

Depth
18.0 cm
7.08 inches
Width
28.0 cm
11.02 inches
Height
7.0 cm
2.75 inches
Weight
0.950 kg
2.09 lb
  • Shipping Weight = 0.950 kgs

Product Information

Product Type
Location
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
Connection From
Connection To
Conversion From
Conversion To

Video to Full HD Mini Display Port Scaler Manuals

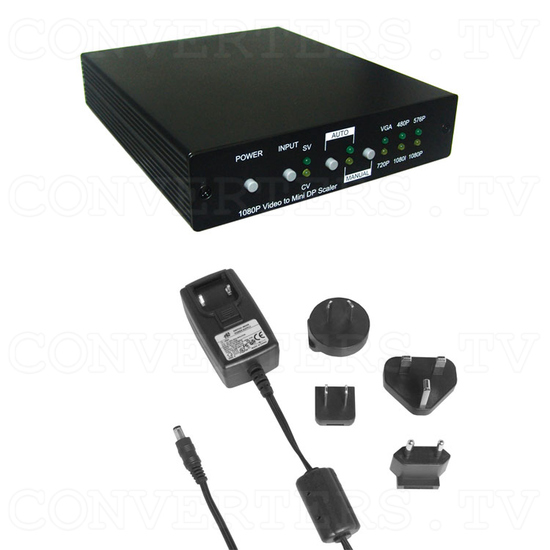

What's Included

  • Video to Full HD Mini Display Port Scaler
  • Video to Full HD Mini Display Port Scaler User Manual

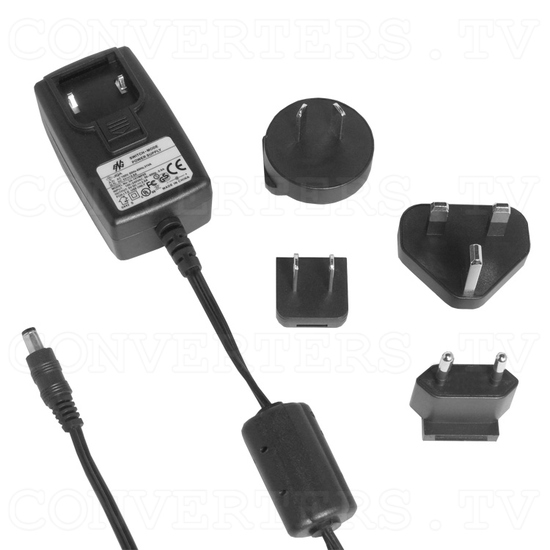

  • Power Supply: 5VDC/2.6A (US/EU standards, CE/FCC/UL certified)
