RGB - CGA, EGA, HD to VGA Converter

Superseded

This product has been replaced by :

RGB, MDA, CGA, EGA to VGA Converter

195.00 USD

More Details

View other products in this category

250V 10A Universal Travel Power Plug Adapter South Africa Model

3.00 USD

More Details

The RGB, CGA, EGA, HD to VGA Converter PCB board is designed for application in Industry and Gaming. Used for the easy upgrade of old monitors to modern display screens. It accepts and converts input signal timings of CGA, EGA, High Definition 480–1080p/i and VGA for output at resolutions of slectable VGA, SVGA, XGA or HDTV.

It has a high compatibility with the majority of Video Systems as found in Industrial CNC machinery and Gaming cabinets. The output will support all CRT, LCD and PDP monitors. Now the retro-fit of older, superceded monitors is easy. The upgrade replacement monitors can also be better utilised for superior display of information and video using OSD options and colour adjustment pots.

Complete with two VGA D-sub outputs, available input connections are RGBS, RGBHV and Component RGB. Manual input selection by on-board push button controls and auto detection of the connected input signal timing allows for easy connection of the video source.

Unit Dimensions:	11.5 x 10.5 x 2.0 cm	Shipping Weight:	0.78 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	5 Years
Certificates :	CE, CTick, UL	Manual :	User Manual (834.54 KB)

RGB - CGA, EGA, HD to VGA Converter - Product Details

Features:

Supports CGA / EGA / VGA / YCbCr / YPbPr signal inputs
Input Connection (selectable): RGBS- 5 pin, RGBHV- 8 pin, VGA- 15 pin, Component RGB– 3AV.
Output Connection: Dual VGA- 15 pin, Dual VGA- 12 pin.
Supports VGA Output : VGA (640x480), SVGA (800x600), XGA (1024x768), HDTV (1360x768)
Input Signal Auto Scan: CGA (14.5-16.5KHz) / EGA (23.5-25.5KHz) / VGA (30.5-32.5KHz)
Input Signal Auto Scan YCbCr / YPbPr: (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
English and Chinese On Screen Display menu.
Supports Output Resolution control, Position control & Zoom control.
Digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all VGA monitors (CRT, LCD, PDP)
Operating Temperature -10C ~ +50C
Supports Gaming: ICB CM99, CYE, Amatic, Jolly Joker, Cuty Line, Dyna X, Psikyo, Bigigo
Supports CNC Machinery: Drilling, EDM's, Lathes, Milling, Routers, Cutting, Welding, Grinding

Specifications:

Power: DC5V 2A ± 0.5v (P7 or P9)

Input CGA signal: 14.5-16.5K Auto scan (P3 or P11 or P10)

Input EGA signal: 23.5-25.5K Auto scan (P3 or P11 or P10)

Input VGA signal: 30.5-32.5K Auto scan (P10 or P11)

Input YPbPr signal: 480p,576p,720p,1080p Auto scan (P2)

Input YCbCr signal: 480i,576i,720i,1080i Auto scan (P2)

Output VGA signal: VGA-640*480, SVGA-800*600, XGA-1024*768, HDTV-1360*768

(P4 and P13)

User control

Menu Key: Input Switch, Image Zoom, Image Position, Output Resolution

RGB gain adjust: RGB VR Pots

Dimensions: 115*105*20mm

Weight: 100 gms

Video and Audio Connection Type

Connects From :	Connects To :
RGB Combined Sync - RGBH+V RGB Separate Sync - RGBHV CGA (15K) VGA 15pin D-Sub (31K+) Component - RGB & YCrCb/YPrPb (HDTV)	VGA 15pin D-Sub (31K+)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) EGA (24K) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i CGA Compatible 15K Video Source RGB Combined Sync - RGBH+V RGB Separate Sync - RGBHV RGB 31K CGA Combined Sync (15khz) CGA Separate Sync (15khz)	VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3)

What is included with RGB - CGA, EGA, HD to VGA Converter

1 x RGB - CGA, EGA, HD to VGA Converter
1 x Power cable - 2 pin connector
1 x Product Manual
2 x VGA Cable
1 x 8 pin RGB cable
1 x Set PCB Mounting Feet (4pcs)
1 x 5 Pin RGB Cable
1 x Open Wire Power Cord
1 x Product Manual

RGB - CGA, EGA, HD to VGA Converter Images

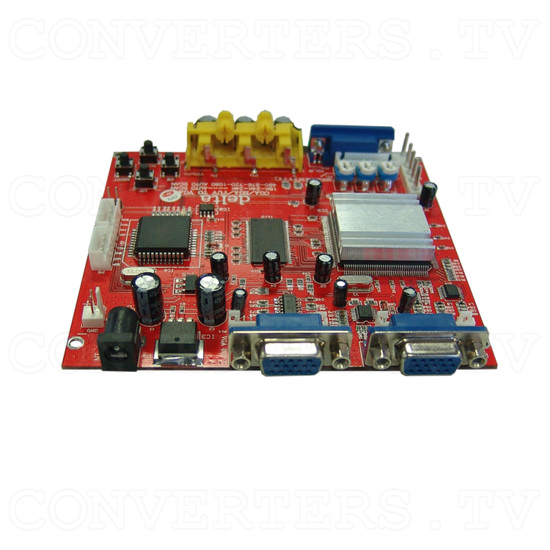

RGB - CGA, EGA, HD to VGA Converter - Full View

RGB - CGA, EGA, HD to VGA Converter - Top View

RGB - CGA, EGA, HD to VGA Converter - Front View

RGB - CGA, EGA, HD to VGA Converter - Back View

RGB - CGA, EGA, HD to VGA Converter - VGA Cable

RGB - CGA, EGA, HD to VGA Converter - 5 Pin RGB Cable

RGB - CGA, EGA, HD to VGA Converter - Open Wire Power Cord

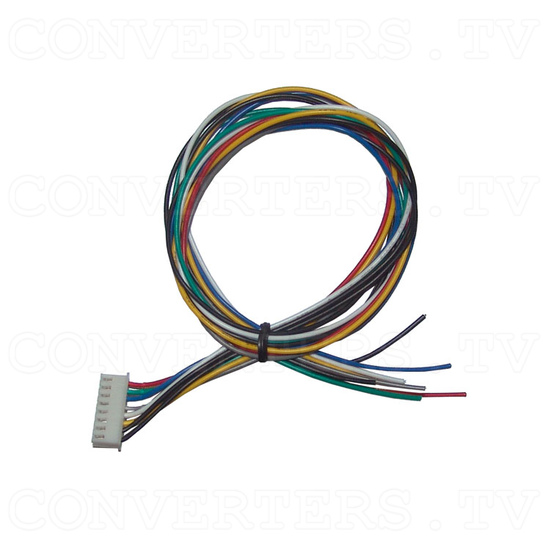

RGB - CGA, EGA, HD to VGA Converter - 8 pin RGB cable

RGB - CGA, EGA, HD to VGA Converter - Power cable - 2 pin connector

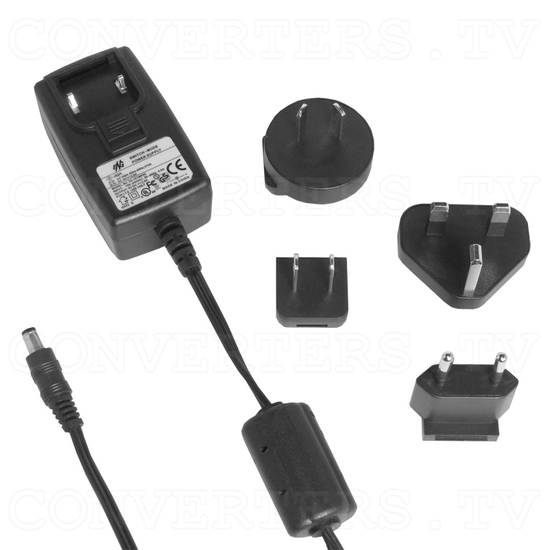

RGB - CGA, EGA, HD to VGA Converter - Power Supply 110v OR 240v

RGB - CGA, EGA, HD to VGA Converter - Full Kit
