PC-HD to PC-HD Scaler w/PC-HD pass-thru

save 33%

Product ID :

00694

Price :

161.70 USD (Change Currency)

RRP: 240.85 USD

(less sale discount 79.15 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

PC-HD to PC-HD Scaler w/PC-HD pass-thru is designed to upscale PC and Component HD resolutions to other selectable PC or Component HD resolutions. PAL 50Hz and NTSC 60Hz output timing formats can also be selected, allowing for PAL/NTSC or NTSC/PAL conversion. A wide range of selectable resolutions are available, for PC from VGA up to WUXGA and for Component HD from 480i/p up to 1080i/p. Connect your PC to your HD Component TV to display up to full high definition 1080p. Alternately, connect your Component source to any PC monitor and display up to WUXGA resolution.

The PC-HD to PC-HD Scaler w/PC-HD pass-thru can take a PC RGBHV or Component Y/Pb/Pr input and scale it to other selectable PC and Component resolutions. The PC-HD to PC-HD Scaler w/PC-HD pass-thru will up-scale/down-scale PC resolutions such as VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA and WUXGA to any other PC or Component HD resolution. Or up-scale/down-scale Component HD resolutions such as 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz and 1080i/p@50/60Hz to any other Component HD or PC resolution.

Simple adjustment of the output resolution by using the On Screen Display menu and Menu/+/- buttons. Adjust and change other picture display options, such as the Aspect Ratio Size for Full, Overscan, Underscan, Letterbox or Panscan display. Adjust picture settings for Fine-tuning, H & V Position, Brightness and Contrast allowing you to control all aspects for the best possible picture display. Connect to your PC monitor using standard VGA 15 pin to 15 pin D-sub connector cable and use VGA 15 pin D-sub to Component RGB cable to connect to your HDTV.

Simple to instal and easy to operate, the PC-HD to PC-HD Scaler w/PC-HD pass-thru is an ideal solution to allow equipment with different PC and Component formats to be used together.

Unit Dimensions:	16.0 x 10.2 x 2.5 cm	Shipping Weight:	1.01 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (214.12 KB)

PC-HD to PC-HD Scaler w/PC-HD pass-thru - Product Details

Features:

Auto detection if PC or Component HD input (Auto-detect RGBHV or YPbPr input)
Select PC or Component HD output using Menu/± buttons (select RGBHV or YPbPr output)
Scales any PC/HD input resolution to selectable PC (VGA ~ WUXGA) or Component HD (480i ~ 1080p) output resolution
Format convert PAL to NTSC (50/60Hz) or NTSC to PAL (60/50Hz)
Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (colour tone) level
Provides Aspect Ratio Sizes: Full, Overscan, Underscan, Letterbox and Panscan
Supports high resolution input: PC VGA ~ WUXGA (@56/60/72/75/85Hz) and Component HD 480/576i/p ~ 1080i/p (@50/60Hz)
Supports high resolution output: PC (@60Hz): VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA; SD/HD (@50/60Hz): 480i@60Hz, 576i@50Hz, 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Full function OSD menu (select and navigate using front panel mounted buttons)
Output set function: press 'menu' & '-' to set Y/Pb/Pr output; use 'menu' & '+' to set VGA PC output

Specifications:

Input Ports: 1 x PC + Component RGB (shared 15 pin D-sub fem)
Output Ports: 1 x PC + Component RGB (shared 15 pin D-sub fem) , 1 x PC/HD Bypass (15 pin D-sub fem)
PC: RGB 4.4.4.
HD: YUV 4.4.4.
8 bit colour
3 x menu control buttons
Dimensions (mm): 157(d) x 102(w) x 25(h)
Weight (g): 332
Power: 100-240vAC to 5vDC 2.5A Universal Switch-mode
Power Consumption: 6.35w (0.05A) (max)
Chassis material: Aluminium
Colour: Silver
Operating temperature: 0°C ~ 40°C

Accepted Input PC Resolutions:

640*480@60/72/75/85Hz
800*600@56/60/72/75/85Hz
1024*768@60/70/75/85Hz
1280*960@60/85Hz
1280*1024@60/75/85Hz
1366*768@50/60Hz
1600*1200@60Hz
1920*1200@60Hz

Accepted Input Component HD Resolutions:

720*480i@59/60Hz
720*480p@59/60Hz
1280*720p59/60Hz
1920*1080i@59/60Hz
1920*1080p@59/60Hz
720*576i@50Hz
720*576p@50Hz
1280*720p@50Hz
1920*1080i@50Hz
1920*1080p@50Hz

Output PC Resolutions:

640*480@60Hz VGA
800*600@60Hz SVGA
1024*768@60Hz XGA
1280*1024@60Hz SXGA
1600*1200@60Hz UXGA
1280*720@60Hz WXGA
1680*1050@60Hz WSXGA
1920*1200@60Hz WUXGA

Output Component HD Resolutions:

480i@50/60Hz
480p@50/60Hz
576i@50/60Hz
576p@50/60Hz
720p@50/60Hz
1080i@50/60Hz
1080p@50/60Hz

Power Supplies:

Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive

Video and Audio Connection Type

Connects From :	Connects To :
VGA 15pin D-Sub (31K+) Component - Y/Pb/Pr	VGA 15pin D-Sub (31K+) Component - Y/Pb/Pr

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WXGA HD (1280 x 720 @ 16:9) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i	VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WXGA HD (1280 x 720 @ 16:9) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i

What is included with PC-HD to PC-HD Scaler w/PC-HD pass-thru

1 x PC-HD to PC-HD Scaler w/PC-HD pass-thru
1 x VGA 15 pin D-sub Cable
1 x VGA to Component HD 3 RCA
1 x Product Manual

Additional Features

PC Bypass
HD Bypass

PC-HD to PC-HD Scaler w/PC-HD pass-thru Images

PC-HD to PC-HD Scaler w/PC-HD pass-thru - Full View

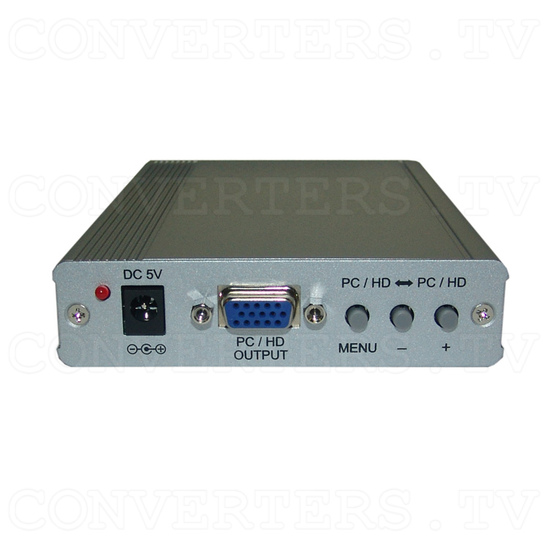

PC-HD to PC-HD Scaler w/PC-HD pass-thru - Front View

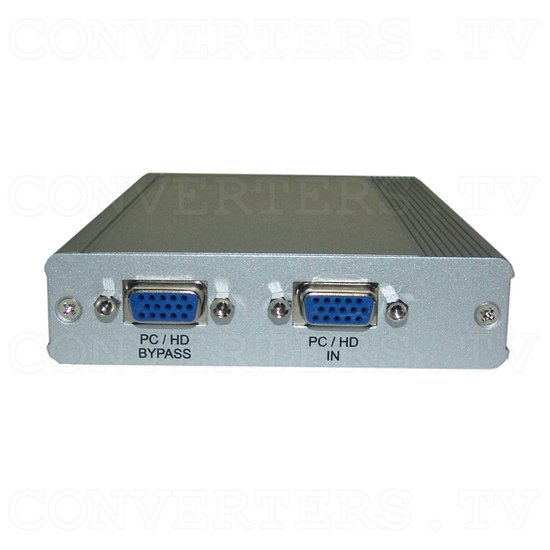

PC-HD to PC-HD Scaler w/PC-HD pass-thru - Back View

PC-HD to PC-HD Scaler w/PC-HD pass-thru - VGA Cable

PC-HD to PC-HD Scaler w/PC-HD pass-thru - VGA to 3 RCA

PC-HD to PC-HD Scaler w/PC-HD pass-thru - Full Kit
