HDMI Video Receiver over Cat5 Cable - 250m

save 51%

Product ID :

00541

Price :

177.20 USD (Change Currency)

RRP: 361.40 USD

(less sale discount 184.20 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

Used in conjunction with the HDMI Video Transmitter over Cat5 Cable, the HDMI Video Receiver over Cat5 Cable - 250m receives a HDMI signal from the transmitter utilising Category 5 cable and then re-transmits it to your HDTV display. The HDMI Video Receiver over Cat5 Cable - 250m is used to extend the overall HDMI signal distance by up to 250 metres.

One limitation of HDMI connections is length, with the HDMI signal rapidly deteriorating over large distances. The HDMI Video Receiver over Cat5 Cable - 250m solves this common problem, and can extend the HDMI signal by up to 250 metres. The HDMI Video Receiver over Cat5 Cable - 250m would suit those who are suffering from HDMI signal loss due to long distance, including those with a large distance in between their HDMI input source and their HDTV display.

To function correctly, the HDMI Video Receiver over Cat5 Cable - 250m unit must be paired with the HDMI Video Transmitter over Cat5 Cable unit. Setting up the unit is quick and easy. You simply connect the transmitter to your HDMI source (DVD Player, Digital Set Top Box, PS3, XBox 360 etc) with a HDMI cable. The transmitter unit is connected to the receiver unit via Cat5 cable, and the Receiver unit is in turn connected to your HDTV display via HDMI cable.

Two separate input links available, one for HDMI Video reception via Cat5 cable and the other is for receiving DDC (Display Data Channel) information when needed.
Where DDC or HDCP data are known for the HDMI source and the display, you can use a single Cat5 cable to connect the Video ports of the Transmitter and Receiver units.

The HDMI Video Receiver over Cat5 Cable - 250m can be used with DVI appliances by utilising a standard DVI to HDMI / HDMI to DVI cable converter.

Unit Dimensions:	12.5 x 12.3 x 3.0 cm	Shipping Weight:	0.71 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, UL	Manual :	User Manual (74.97 KB) User Manual (174.5 KB)

HDMI Video Receiver over Cat5 Cable - 250m - Product Details

Practical Applications:

The HDMI Video Receiver over Cat5 Cable - 250m is ideal for use in:

Lecture Halls and Auditoriums.
Educational Facilities such as Schools and Universities.
Shopping Malls and Large Retail Shops.
Sports Stadiums and Gymnasiums.
Recreational Resort and Accommodation Facilities.
Industrial Complexes.
Commercial Office Buildings.
Private Family Homes.

The HDMI Video Receiver over Cat5 Cable - 250m is ideal for use by:

Professional Advertisers.
Lecture Professors, Public and Private Teachers.
Industrial Manufacturers.
Commercial Shop owners.
Resort and Motel/Hotel Managers
Sports Organisers.
Concert, Stage and Theatre groups.
Private Home Owners.

Features:

Supports High Definition Video input up to 1080p (Output = Input)
Operates up to a distance of 250 meters on Cat5 cable.
Distance Control Switches used for optimal setting of distance. (50, 100, 150 & 250 meters)
Equaliser Adjust for fine tuning received signal.
Gain Adjust for brightness
Compact and Durable silver casing.
LED indicator for Power On/Off.
Easy to understand Front and Rear panel Layout and Labelling.
Compatible for use with any HDMI and DVI Video appliance.
Easy and simple installation and operation.
Low power consumption.

Specifications:

Supports HDMI Resolutions: 480p, 480i, 576p, 576i, 720p (50/60Hz), 1080p and 1080i (50/60HZ)
Supports Cables: Cat5, Cat5E and Cat6 of various manufacture.
Complies to HDMI 1.2, HDCP 1.1 and DVI 1.0 specs.
HDMI output connector: 1 x Female (Type A)
Cat5 input connectors: 2 x RJ45 ports. (1 for Video, 1 for DDC information)
Universal Switch-Mode Power Supply 100-240vAC 50/60Hz to 5vDC 2.6Amp
Dimensions (cm's): 12.5(w) x 12.3(d) x 3.0(h)
Weight: 350 grams

Accepted DVI/HDMI Resolutions:

640*480@60/72/75Hz
800*600@56/60/72/75Hz
1024*768@60/70/75Hz
1280*1024@60/75Hz
1366*768@60Hz
1600*1200@60Hz
1920*1200@60Hz
720*480i@59/60Hz
720*576i@50Hz
720*576p@50Hz
720*480p@59/60Hz
1280*720p@59/50/60Hz
1920*1080i@59/50/60Hz
1920*1080p@59/50/60

Power Supplies:

Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV) RJ-45 Control Telnet/WebGUI CAT5 / CAT6 Cable RJ-45	HDMI (HDTV) RJ-45 Control Telnet/WebGUI CAT5 / CAT6 Cable RJ-45

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i CAT5/6 Protocol	VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i CAT5/6 Protocol

What is included with HDMI Video Receiver over Cat5 Cable - 250m

1 x HDMI Video Receiver over Cat5 Cable - 250m
1 x Product Manual
1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

HDMI Video Receiver over Cat5 Cable - 250m Images

HDMI Video Receiver over Cat5 Cable - 250m - Full View

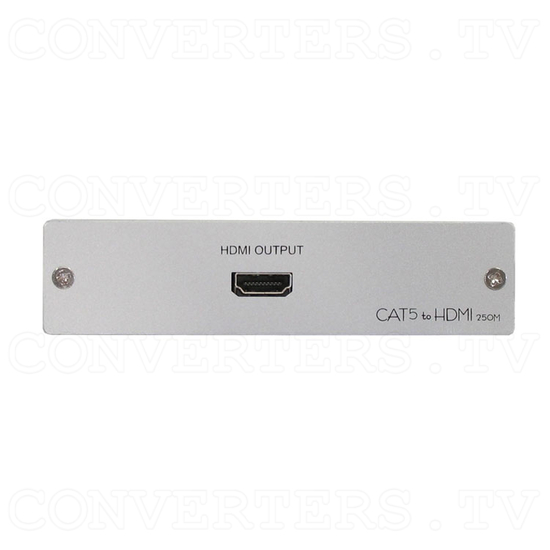

HDMI Video Receiver over Cat5 Cable - 250m - Front View

HDMI Video Receiver over Cat5 Cable - 250m - Back View

HDMI Video Receiver over Cat5 Cable - 250m - Side View

HDMI Video Receiver over Cat5 Cable - 250m - Power Supply 110v OR 240v

HDMI Video Receiver over Cat5 Cable - 250m - Full Kit
