HDMI Digital scaler with ultra high bandwidth

save 37%

Product ID :

00443

Price :

239.80 USD (Change Currency)

RRP: 379.25 USD

(less sale discount 139.45 USD )

Available :

Stock

Freight Quote On Sale Extended Warranty Contact Staff

A professional HDMI Digital scaler with ultra high bandwidth, for PC, Component, HDMI as well as audio to HDMI. This model can handle input and output signals upto 205MHz. It accepts both analog and digital input and outputs a variety of scaled HDMI resolutions.

A DVI Input is accepted by using a DVI to HDMI adapter plug(not included in package)

Unit Dimensions:	17.8 x 2.4 x 13.3 cm	Shipping Weight:	1.50 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	24 Months
Certificates :	CE	Manual :	User Manual (1 MB)

HDMI Digital scaler with ultra high bandwidth - Product Details

Features:

Both digital and analog inputs are format converted and pixel re-scaled through the Unit. It outputs a big range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality.
Analog RGB Compliant input:
Supports PC RGB input up to WUXGA @60Hz.
Supports HDTV RGB/YPbPr/YCbCr up to 1080p @60Hz
HDMI 1.2 compliant
Operates up to 165Mhz (Up to UXGA @60Hz)
Supports digital PC RGB output up to WUXGA @60Hz.
Supports digital HD output up to 1080p.
Integrated 8-bit triple-ADC/PLL.
Integrated HDCP/HDMI compliant receiver.
Dual high quality scaling engines.
Dual 3-D motion video adaptive de-interlacers with adaptive edge- oriented adaptive algorithm for smooth low-angle edge.
Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
The Proprietary Advanced Color Engine technology gives:
Brilliant and fresh color.
Intensified contrast and details.
Vivid skin tone.
Sharp edge.
Accurate and independent color control.
3D noise reduction.
Operates through on-screen OSD menu control and remote control.

Specifications:

Input format (Up to 165MHz)

Component input YPbPr:

480p @50/60Hz
576p @50Hz
720p @50/60Hz
1080i @50/60Hz
1080p @50/60Hz

Component input YCbCr:

480i @60Hz
576i @60Hz

PC Input RGBHV:

VGA @60/72/75/85
SVGA @56/60/72/75/85
XGA @60/70/75/85
SXGA @60/75/85
UXGA @60
WXGA @60(1280x800)
WSXGA @60(1680x1050)
WUXGA @60(1920x1200)
1360x768

HDMI Input Digital:

VGA @60/72/75/85
SVGA @56/60/72/75/85
XGA @60/70/75/85
WXGA @60(1280x800)
SXGA @60/75/85
WSXGA @60(1680x1050)
UXGA @60
WUXGA @60(1920x1200)
1360x768

HDMI Output RGB Format SD/HD:

480i
480p
576i
576p
720p @50/60
1080i @50/60
1080p @50/60

HDMI Output RGB Format PC:

VGA @60
SVGA @60
XGA @60
WXGA @60
SXGA @60
WSXGA @60
UXGA @60
WUXGA @60
Power Supply 5V DC 2.6A (Center Positive)

Power Supplies:

Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive

Video and Audio Connection Type

Connects From :	Connects To :
VGA 15pin D-Sub (31K+) HDMI (HDTV) Component - RGB & YCrCb/YPrPb (HDTV)	HDMI (HDTV)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) PAL B NTSC M - NTSC 3.58 NTSC N - NTSC 4.43 PAL D PAL N PAL G PAL H PAL I PAL K PAL M SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WXGA HD (1280 x 720 @ 16:9) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i RGB 31K	VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WXGA HD (1280 x 720 @ 16:9) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i

What is included with HDMI Digital scaler with ultra high bandwidth

1 x CP-255H
1 x VGA Cable (Male to Male)
1 x Component Cable
1 x Remote
1 x Product Manual
1 x Product Manual
1 x Product Manual
1 x Product Manual
1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

HDMI Digital scaler with ultra high bandwidth Images

HDMI Digital scaler with ultra high bandwidth - Full View

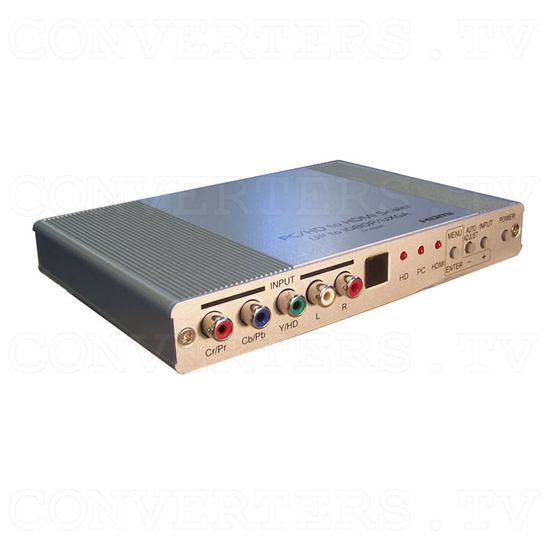

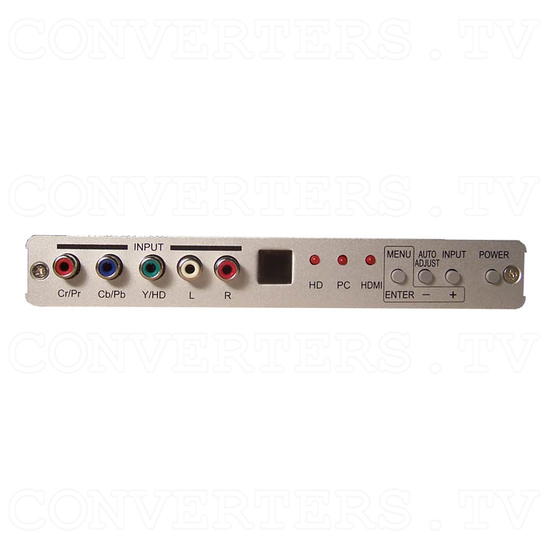

HDMI Digital scaler with ultra high bandwidth - Front View

HDMI Digital scaler with ultra high bandwidth - Back View

HDMI Digital scaler with ultra high bandwidth - VGA Cable

HDMI Digital scaler with ultra high bandwidth - Component Cable

HDMI Digital scaler with ultra high bandwidth - Remote

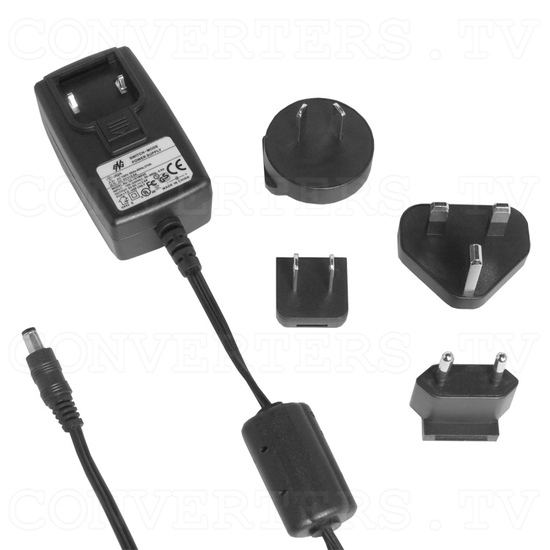

HDMI Digital scaler with ultra high bandwidth - Power Supply 110v OR 240v

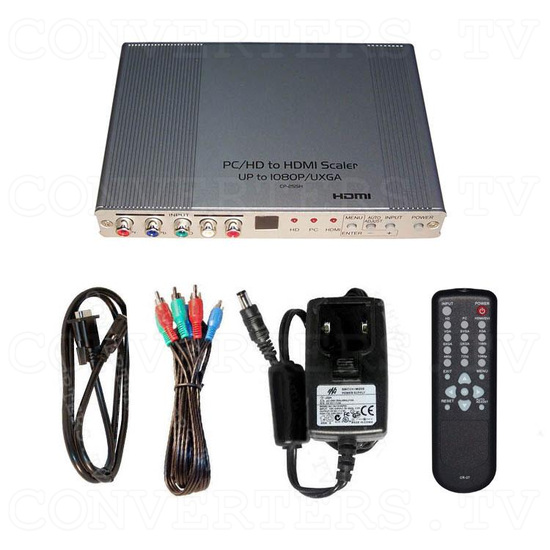

HDMI Digital scaler with ultra high bandwidth - Full Kit
