HDMI 1 In 8 Out Splitter directs one HDMI video/audio input stream into eight equal HDMI output streams. Each output is equal in quality and strength, working up to a distance of 15 metres without interference. Supports HD resolution WUXGA/1080p@8/12 bit colour, 3D video and up to 7.1 channels of high definition lossless audio: LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio transmission. Compatible with DVI systems using a DVI to HDMI adaptor cable or converter. Compatible with DVI systems using a DVI to HDMI adaptor cable or converter. The HDMI 1 In 8 Out Splitter has 3Gbps in Bandwidth, allowing support for PAL and NTSC SD and HD video formats from VGA ~ WUXGA, 480i/p ~ 1080i/p@50/60Hz 8/12bit colour and standard 3D formats like Frame Packing, Side by Side, Top and Bottom. Audio formats 2CH LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio are transmitted along with the video signal without loss or degradation. Functional EDID (Extended Display Identification Data) support matches the connected Monitors to display at the best resolution to suit. Slimline black casing with accessible and clearly designated ports for easy connection and setup of cables makes installation very easy. Once the cables are in place and power applied, the HDMI 1 In 8 Out Splitter automatically detects and links with the connected monitors. Ii is ideal for use with Showroom displays, Professional and Educational demonstrations, Commercial applications and private Home Entertainment Centres.
HDMI 1 In 8 Out Splitter

HDMI 1 In 8 Out Splitter

  save 16%

Made In Taiwan

Product ID : 15130
Price : 255.80 USD (Change Currency)

RRP: 305.25 USD (less sale discount 49.45 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


HDMI 1 In 8 Out Splitter directs one HDMI video/audio input stream into eight equal HDMI output streams. Each output is equal in quality and strength, working up to a distance of 15 metres without interference. Supports HD resolution WUXGA/1080p@8/12 bit colour, 3D video and up to 7.1 channels of high definition lossless audio: LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio transmission. Compatible with DVI systems using a DVI to HDMI adaptor cable or converter. Compatible with DVI systems using a DVI to HDMI adaptor cable or converter.

The HDMI 1 In 8 Out Splitter has 3Gbps in Bandwidth, allowing support for PAL and NTSC SD and HD video formats from VGA ~ WUXGA, 480i/p ~ 1080i/p@50/60Hz 8/12bit colour and standard 3D formats like Frame Packing, Side by Side, Top and Bottom. Audio formats 2CH LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio are transmitted along with the video signal without loss or degradation. Functional EDID (Extended Display Identification Data) support matches the connected Monitors to display at the best resolution to suit.

Slimline black casing with accessible and clearly designated ports for easy connection and setup of cables makes installation very easy. Once the cables are in place and power applied, the HDMI 1 In 8 Out Splitter automatically detects and links with the connected monitors. Ii is ideal for use with Showroom displays, Professional and Educational demonstrations, Commercial applications and private Home Entertainment Centres.


Unit Dimensions: 24.0 x 10.5 x 3.0 cm Shipping Weight: 1.15 kg
Location: NSW, Australia Item Type: HDMI Converters
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (203.4 KB)


HDMI 1 In 8 Out Splitter - Product Details


Features:

  • HDMI v1.3a HDCP 1.1 and DVI 1.0
  • Supports DVI Systems: Use DVI to HDMI cable or converter
  • Supports SD/HD Resolutions: VGA ~ WUXGA, 480i/p ~ 1080i/p
  • Supports 3D formats: Side by Side, Frame Packing, Top and Bottom
  • Supports 7.1 channels of LPCM, Dolby TrueHD, DTS, and DTS-HD Master Audio transmission
  • Supports Dolby Digital, Dolby Digital Plus, DTS Digital Audio transmission (32 ~ 192kHz Sampling Rate)
  • Supports 8bit and 12bit Deep Colour
  • Supports Transmission Distances: Input and Output = 15m@8bit, 10m@12bit
  • Supports EDID switch setting: STD/TV
  • Supports Cascading: Extend one output to the input of next Splitter, max 3

Specifications:

  • Input Ports: 1 x HDMI Female Type A; 1 x mini-USB (Service Access)
  • Output Ports: 8 x HDMI Female Type A
  • Video Bandwidth: 225MHz / 6.7Gbps
  • Input/Output Resolutions: PC VGA ~ WUXGA; HDMI 480i/p ~ 1080i/p@50/60Hz & 1080p@23/24Hz; 3D Side by Side, Frame Packing, Top and Bottom
  • Colour Bit Rates: 8bit and 12bit
  • Audio: 7.1 channels of LPCM, Dolby TrueHD, DTS, and DTS-HD Master Audio transmission, Dolby Digital, Dolby Digital Plus, DTS Digital Audio transmission (32 ~ 192kHz Sampling Rate)
  • EDID Switch: Select STD or TV
  • Power Supply: 100-240vAC to +5vDC 1A (US/EU standards, CE/FCC/UL certified)
  • Power (watts): 4.8w 47mA
  • Dimensions (cm's): 24.0(l) x 10.5(w) x 3.0(h)
  • Weight (grams): 750g
  • Chassis: Black metal
  • ESD Protection Human Body Model: -/+8kV (air-gap discharge); -/+4kV (contact discharge)
  • Operating Temp: 0c ~ 40c / 32f ~ 104f
  • Storage Temp: -20c ~ 60c / -4f ~ 140f
  • Relative Humidity: 20% - 90% RH (non-condensing)

Accepted PC HDMI/DVI Timings:

  • 640*480@60/72/75Hz
  • 800*600@56/60/72/75Hz
  • 1024*768@60/70/75Hz
  • 1280*960@60Hz
  • 1280*1024@60/70/72Hz
  • 1366*768@50/60Hz
  • 1600*1200@60Hz
  • 1920*1200@60Hz

Accepted HD HDMI/DVI Timings:

  • 720*480i@59/60Hz (Not DVI@50/60Hz)
  • 720*480p@59/60Hz
  • 720*576p@50/60Hz (Not DVI@50Hz)
  • 1280*720p@50/59/60Hz
  • 1920*1080i@50/59/60Hz
  • 1920*1080p@23/24/50/59/60Hz (Not DVI@23/24Hz)

Power Supplies:

  • Multi-Voltage Power Supply : 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive) Screw Connector


Video and Audio Connection Type


Connects From : Connects To :
  • DVI - D (HDTV)
  • HDMI (HDTV)
  • DVI - D (HDTV)
  • HDMI (HDTV)


Video and Audio Signal Conversion


Converts From : Converts To :
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • WSXGA (1680x1050 @ 16:10)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • HDTV 480i
  • HDTV 576i
  • 3D
  • WXGA (1360 X 768 @ 16:9)
  • WUXGA (1920 X 1200 @ 16:10)
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • WSXGA (1680x1050 @ 16:10)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • HDTV 480i
  • HDTV 576i
  • 3D
  • WXGA (1360 X 768 @ 16:9)
  • WUXGA (1920 X 1200 @ 16:10)


What is included with HDMI 1 In 8 Out Splitter


  • 1 x HDMI 1x8 Splitter
  • 1 x Product Manual
  • 1 x Product Manual
  • 1 x Product Manual
  • 1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive) Screw Connector

HDMI 1 In 8 Out Splitter Images


HDMI 1 In 8 Out Splitter - Full View
HDMI 1 In 8 Out Splitter - Full View

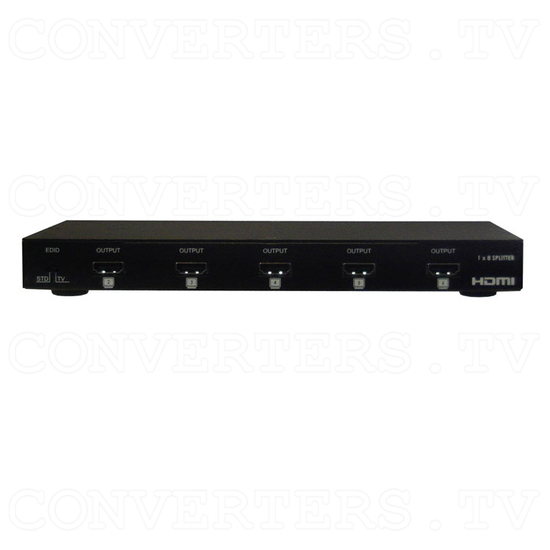

HDMI 1 In 8 Out Splitter - Front View
HDMI 1 In 8 Out Splitter - Front View
HDMI 1 In 8 Out Splitter - Back View
HDMI 1 In 8 Out Splitter - Back View
HDMI 1 In 8 Out Splitter - Power Supply 110v OR 240v
HDMI 1 In 8 Out Splitter - Power Supply 110v OR 240v

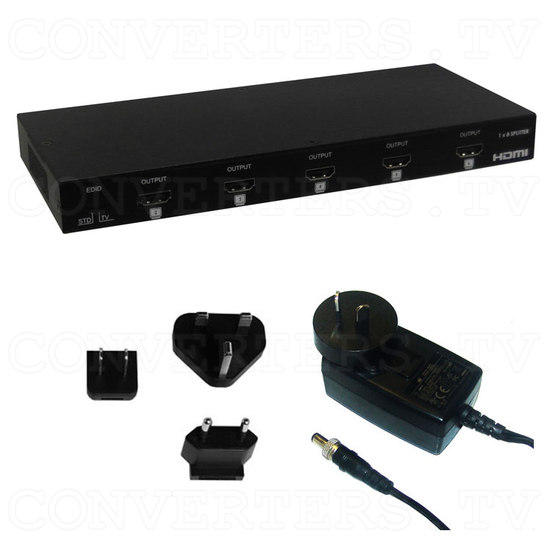

HDMI 1 In 8 Out Splitter - Full Kit
HDMI 1 In 8 Out Splitter - Full Kit
