DVI to HDMI Converter with Digital Audio

$228.05
$123.60 USD
Freight Calculator


Availability In Stock
Product No. 728
Condition New
Warranty 12 Months
Manufacturer Cypress Technology
Cypress Technology Product No CP-268S
Location Australia

Product Description

The DVI to HDMI Converter with Digital Audio is designed to combine and convert a DVI (digital video) signal and an SPDIF (digital audio) signal to one combined HDMI output signal, allowing Users to connect a DVI video source and a digital audio source to an HDMI digital display.

DVI to HDMI Converter with Digital Audio supports high resolution input and output resolutions, for PC up to UXGA, and for HDMI up to Full HD 1080p. Coaxial audio input supports LPCM 2CH, Dolby Digital 5.1CH and DTS 5.1CH digital audio signals and the incoming TMDS data is re-shaped and re-amplified before transmission of an optimal quality HDMI video/audio signal to the HDTV.

This product is very similar to our ID#432 converter product. The main difference between the two products is that this version has a different chip-set with improved processing power and more stable operation.

Product Details

Features:

  • HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant
  • Supports DVI/Coaxial input and HDMI output
  • Input format auto detection: Digital RGB or YPbPr
  • Coaxial input supports LPCM 2CH, Dolby Digital 5.1CH and DTS 5.1CH digital audio
  • Full HDCP compliant
  • Operation Frequency: 165MHz
  • Frequency Bandwidth: 1.65Gbps (single link)
  • Supports audio sampling frequencies: 32, 44.1 and 48kHz
  • Supports high resolution input/output: PC: VGA@60/72/75/85Hz, SVGA@60/72/75/85Hz, XGA@60/70/75/85Hz, SXGA@60/75/85Hz, UXGA@60Hz, SD/HD: 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz, 1080i@50/60Hz and 1080p@24/50/60Hz
  • Easy to install and to operate

Specifications:

  • Input ports: 1 x DVI (only DVI-D supported) , 1 x Coaxial (S/PDIF)

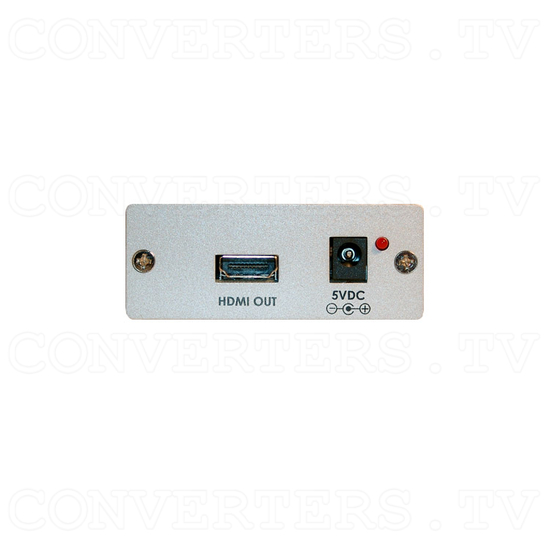

  • Output port: 1 x HDMI
  • Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
  • Dimensions (mm): 105(W) x 76(D) x 30(H)
  • Weight(g): 188
  • Chassis Material: Aluminium
  • Colour: Silver
  • Operating Temperature: 0°C ~ 40°C

Test Input Resolutions: Accepted DVI & HDMI signals:

  • 640*480@60/72/75Hz
  • 800*600@56/60/72/75Hz
  • 1024*768@60/70/75/85Hz
  • 1280*960@60Hz
  • 1280*1024@60/75Hz
  • 1600*1200@60Hz
  • 1920*1200@60Hz
  • 720*480i@59/60Hz (not available for DVI signal)
  • 1280*720p@59/60Hz
  • 1920*1080i@59/60Hz
  • 1920*1080p@59/60Hz
  • 720*576i@50Hz (not available for DVI signal)
  • 720*576p@50Hz
  • 1280*720p@50Hz
  • 1920*1080i@50Hz
  • 1920*1080p@50/23/24Hz
  • 1366*768@60/50Hz

Dimensions and Weight

Depth
3.0 cm
1.18 inches
Width
7.5 cm
2.95 inches
Height
10.0 cm
3.93 inches
Weight
0.150 kg
0.33 lb

Carton Details

Depth
21.0 cm
8.26 inches
Width
11.5 cm
4.52 inches
Height
6.0 cm
2.36 inches
Weight
0.450 kg
0.99 lb
  • Shipping Weight = 0.450 kgs

Product Information

Product Type
Location
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
Connection From
Connection To
Conversion From
Conversion To

DVI to HDMI Converter with Digital Audio Manuals

What's Included

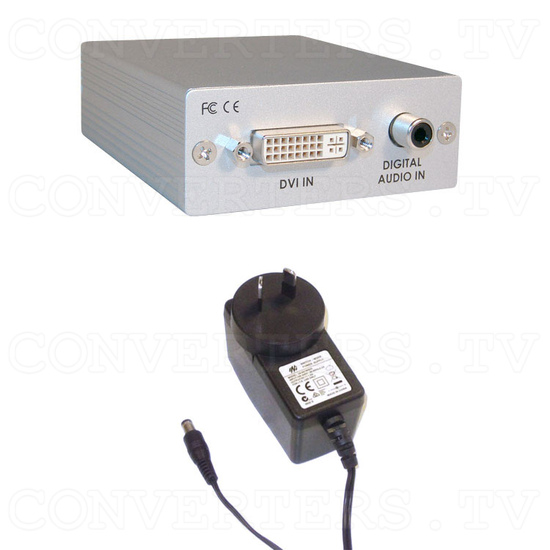

  • DVI to HDMI Converter with Digital Audio
  • DVI to HDMI Converter with Digital Audio User Manual
  • 100~240VAC to 5V DC 1A Switch Mode Power Supply (Centre Positive)
