  Home - VGA+ Converters - VGA+ To VGA+ Converters - DVI over CAT5e/6 Transmitter and Receiver Last Update: Tue 30th May 2023
The DVI over CAT5e/6 Transmitter and Receiver, using a DVI Extender over single CAT5e/6 cable, allows uncompressed video and audio from a DVI source to be transmitted over distances of up to 60m to a DVI or HD display (provided the HD display has DVI output). This device is useful for a number of applications, including home entertainment, lecture displays, retail sales or commercial advertising displays, or business/educational presentations. For example, if you were doing a presentation for a project, you could connect your DVI source (such as a laptop) via the DVI-I connection to the Transmitter (DVI-D to CAT5e/6), which will connect to the Receiver (CAT5e/6 to DVI-D) using a CAT5e or CAT6 cable, and connect your DVI display (such as a screen or projector) to the other end of the Receiver. You can sit comfortably at a desk while you give your presentation or be in another room while your audience watches. The DVI over CAT5e/6 Transmitter and Receiver allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters at 1080p and 3D with High-Definition Audio up to 7.1CH (with HDMI to DVI adaptor). Designed with HDBaseT technology for greater flexibility in custom installations with full DVI signal transfer over a single CAT5e/6 cable. Features: - Complies with the HDBaseT-Lite class - Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m (with HDMI to DVI adaptor) - Full HD resolution support (1080p@60 Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6 cable - Compact size with stylish design
DVI over CAT5e/6 Transmitter and Receiver

DVI over CAT5e/6 Transmitter and Receiver

  save 20%

Made In Taiwan

Product ID : 15180
Price : 159.85 USD (Change Currency)

RRP: 199.90 USD (less sale discount 40.05 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


The DVI over CAT5e/6 Transmitter and Receiver, using a DVI Extender over single CAT5e/6 cable, allows uncompressed video and audio from a DVI source to be transmitted over distances of up to 60m to a DVI or HD display (provided the HD display has DVI output). This device is useful for a number of applications, including home entertainment, lecture displays, retail sales or commercial advertising displays, or business/educational presentations.

For example, if you were doing a presentation for a project, you could connect your DVI source (such as a laptop) via the DVI-I connection to the Transmitter (DVI-D to CAT5e/6), which will connect to the Receiver (CAT5e/6 to DVI-D) using a CAT5e or CAT6 cable, and connect your DVI display (such as a screen or projector) to the other end of the Receiver. You can sit comfortably at a desk while you give your presentation or be in another room while your audience watches.

The DVI over CAT5e/6 Transmitter and Receiver allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters at 1080p and 3D with High-Definition Audio up to 7.1CH (with HDMI to DVI adaptor). Designed with HDBaseT technology for greater flexibility in custom installations with full DVI signal transfer over a single CAT5e/6 cable.

Features:
  • Complies with the HDBaseT-Lite class
  • Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m (with HDMI to DVI adaptor)
  • Full HD resolution support (1080p@60 Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
  • Compact size with stylish design


Unit Dimensions: 8.8 x 5.5 x 2.3 cm Shipping Weight: 0.83 kg
Location: NSW, Australia Item Type: DVI over CAT5e/6/7
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (255.58 KB)


DVI over CAT5e/6 Transmitter and Receiver - Product Details


Specifications:

  • Video Bandwidth: 300 MHz/10.2 Gbps
  • Transmitter
  • Input: 1x DVI-I
  • Output: 1x RJ45
  • Receiver
  • Input: 1x RJ45
  • Output: 1x DVI-I
  • ESD Protection: Human Body Model
  • +-8kV (air-gap discharge)
  • +-4kV (contact discharge)
  • Power Supply: 100-240vAC to +5vDC 2.6A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 3w (TX), 5.5w (RX)
  • Chassis Material and Silkscreen color: Plastic; White
  • Operating Temperature: 0 C~40 C/ 32 F~104 F
  • Storage Temperature: -20 C~60 C/ -4 F~140 F
  • Relative Humidity: 20~90% RH (non-condensing)

Power Supplies:

  • Multi-Voltage Power Supply : 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive) Screw Connector


Video and Audio Connection Type


Connects From : Connects To :
  • DVI - I (HDTV)
  • CAT5 / CAT6 Cable RJ-45
  • DVI - I (HDTV)
  • CAT5 / CAT6 Cable RJ-45


Video and Audio Signal Conversion


Converts From : Converts To :
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • WSXGA (1680x1050 @ 16:10)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • WUXGA (1920 x 1080 @ 16:10)
  • HDTV 480i
  • HDTV 576i
  • CAT5/6 Protocol
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • WSXGA (1680x1050 @ 16:10)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • WUXGA (1920 x 1080 @ 16:10)
  • HDTV 480i
  • HDTV 576i
  • CAT5/6 Protocol


What is included with DVI over CAT5e/6 Transmitter and Receiver


  • 1 x DVI over CAT5e/6 Transmitter and Receiver
  • 1 x Product Manual
  • 1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive) Screw Connector

DVI over CAT5e/6 Transmitter and Receiver Images

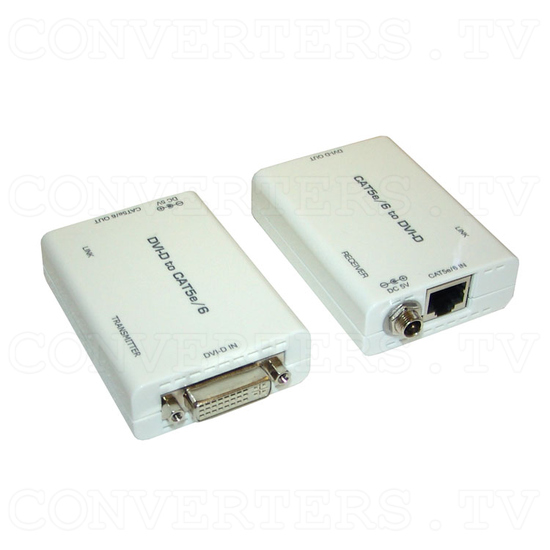

DVI over CAT5e/6 Transmitter and Receiver - Full View
DVI over CAT5e/6 Transmitter and Receiver - Full View

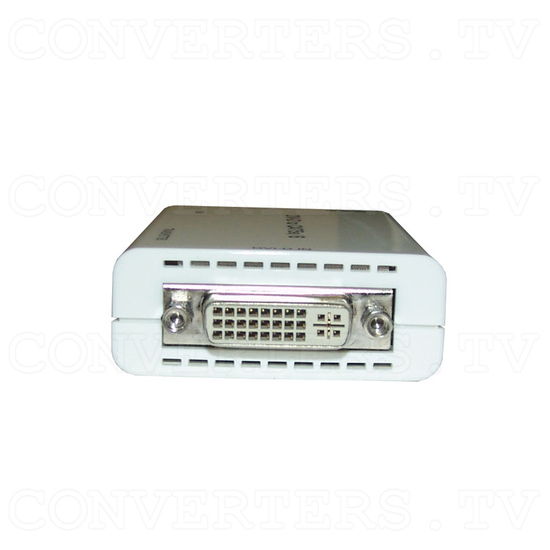

DVI over CAT5e/6 Transmitter and Receiver - Transmitter - Front
DVI over CAT5e/6 Transmitter and Receiver - Transmitter - Front
DVI over CAT5e/6 Transmitter and Receiver - Receiver - Front
DVI over CAT5e/6 Transmitter and Receiver - Receiver - Front

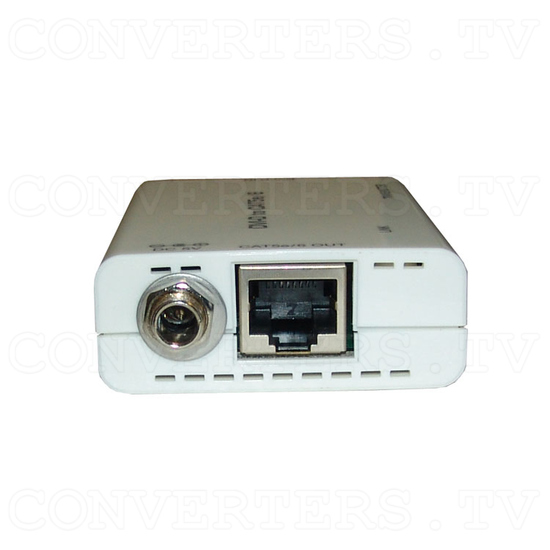

DVI over CAT5e/6 Transmitter and Receiver - Transmitter - Back
DVI over CAT5e/6 Transmitter and Receiver - Transmitter - Back
DVI over CAT5e/6 Transmitter and Receiver - Receiver - Back
DVI over CAT5e/6 Transmitter and Receiver - Receiver - Back
DVI over CAT5e/6 Transmitter and Receiver - Power Supply 110v OR 240v
DVI over CAT5e/6 Transmitter and Receiver - Power Supply 110v OR 240v

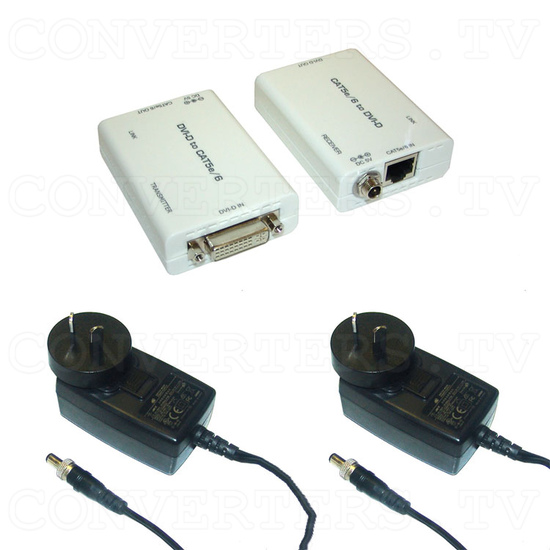

DVI over CAT5e/6 Transmitter and Receiver - Full Kit
DVI over CAT5e/6 Transmitter and Receiver - Full Kit
