  Home - VGA+ Converters - VGA+ To VGA+ Converters - DVI Over CAT5 Receiver Box - 250 meters Last Update: Tue 30th May 2023
Used in conjunction with the DVI Over CAT5 Transmitter, the DVI Over CAT5 Receiver Box - 250 meters receives a DVI signal from the transmitter utilizing a Category 5 (CAT5) cable, and then outputs via DVI to your display. The device is used to extend the overall DVI signal distance by up to 250 meters without any signal loss or degradation. The unit receives the HD image signal via CAT5, and outputs via DVI. One benefit of using a CAT5 cable instead of other cables (eg HDMI) for long cable runs is its inexpensive price, making long cable runs more cost effective than ever before. It also offers Left/Right and Coaxial audio output ports for the transfer of analog/digital audio signals. Through the dedicated DDC port, the device also supports HDCP and CEC. If the HDCP and DDC status are known for the source and display, then the following scenarios will apply: -If source and display support HDCP, users just need to use 1 CAT5/6 cable. -If source and display don't support HDCP, users need to use 2 CAT5/6 cables. -If display supports HDCP but source doesn't, users just need to use 1 CAT5/6 cable. -If source supports HDCP but display doesn't, there's no result. The DVI Over CAT5 Receiver Box supports high definition input up to 1080P/UXGA, with output resolution following input resolution. The unit is suitable for anyone who wishes to further extend a DVI signal, and has many practical uses including digital signage, advertising, and home theatre integration.
DVI Over CAT5 Receiver Box - 250 meters

DVI Over CAT5 Receiver Box - 250 meters

  save 14%

Made In Taiwan

Product ID : 00751
Price : 171.70 USD (Change Currency)

RRP: 199.90 USD (less sale discount 28.20 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


Used in conjunction with the DVI Over CAT5 Transmitter, the DVI Over CAT5 Receiver Box - 250 meters receives a DVI signal from the transmitter utilizing a Category 5 (CAT5) cable, and then outputs via DVI to your display. The device is used to extend the overall DVI signal distance by up to 250 meters without any signal loss or degradation.

The unit receives the HD image signal via CAT5, and outputs via DVI. One benefit of using a CAT5 cable instead of other cables (eg HDMI) for long cable runs is its inexpensive price, making long cable runs more cost effective than ever before. It also offers Left/Right and Coaxial audio output ports for the transfer of analog/digital audio signals. Through the dedicated DDC port, the device also supports HDCP and CEC.

If the HDCP and DDC status are known for the source and display, then the following scenarios will apply:

  • If source and display support HDCP, users just need to use 1 CAT5/6 cable.
  • If source and display don't support HDCP, users need to use 2 CAT5/6 cables.
  • If display supports HDCP but source doesn't, users just need to use 1 CAT5/6 cable.
  • If source supports HDCP but display doesn't, there's no result.

The DVI Over CAT5 Receiver Box supports high definition input up to 1080P/UXGA, with output resolution following input resolution. The unit is suitable for anyone who wishes to further extend a DVI signal, and has many practical uses including digital signage, advertising, and home theatre integration.


Unit Dimensions: 12.5 x 13.0 x 3.0 cm Shipping Weight: 1.00 kg
Location: NSW, Australia Item Type:
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (348.55 KB)


DVI Over CAT5 Receiver Box - 250 meters - Product Details


Features:

  • Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications
  • Supports Equalizer, Gain, CTI (Colour Transient Improvement) adjustment
  • Supports high definition input up to 1080P/UXGA - output resolution follows input
  • Easy to install and simple to operate
  • Connect CAT 5 back to DVI without signal loss after 250 meters transmission
  • Supports DDC/HDCP signal transferring through DDC cable
  • Built-in EDID at transmitter
  • Support both external Coaxial and Stereo Sound

Specifications:

  • Transmitter Input port: 1 x DVI-I female port (Accept DVI-D signal only), 1 x Coaxial, 1 x L/R Audio
  • Transmitter Output port: 2 x CAT5 RJ 45 8pin
  • Receiver Input port: 2 x CAT5 RJ 45 8pin
  • Receiver Output port: 1 x DVI-I female port, 1 x Coaxial, 1 x L/R Audio
  • Resolution: HD- 480i/p 60, 576p 60, 720P 50/60, 1080i 50/60Hz, 1080p 50/60Hz, PC- 640 x 480=VGA72, VGA75, VGA85, 800 x 600=SVGA56, SVGA60, SVGA72, SVGA75, SVGA85, 1024 x 768=XGA60, XGA70, XGA75, XGA85, 1280 x 1024=SXGA60, SXGA75, SXGA85, 1600 x 1200=UXGA60, 1920 x 1200=Reduced blanking WUXGA
  • Power Supply: 5V / 2.6A DC power supply
  • Dimensions (mm): 125 x 130 x 30 / each
  • Weight (g): 700 /each
  • Material: Aluminium
  • Colour: Silver

Power Supplies:

  • Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive


Video and Audio Connection Type


Connects From : Connects To :
  • DVI - I (HDTV)
  • Coaxial RCA S/PDIF
  • Analog Stereo L/R Jacks
  • CAT5 / CAT6 Cable RJ-45
  • DVI - I (HDTV)
  • Coaxial RCA S/PDIF
  • Analog Stereo L/R Jacks
  • CAT5 / CAT6 Cable RJ-45


Video and Audio Signal Conversion


Converts From : Converts To :
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • WUXGA (1920 x 1080 @ 16:10)
  • HDTV 480i
  • HDTV 576i
  • CAT5/6 Protocol
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • WUXGA (1920 x 1080 @ 16:10)
  • HDTV 480i
  • HDTV 576i
  • CAT5/6 Protocol


What is included with DVI Over CAT5 Receiver Box - 250 meters


  • 1 x DVI over CAT5 Receiver Box at 250m
  • 1 x Product Manual
  • 1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

DVI Over CAT5 Receiver Box - 250 meters Images


DVI Over CAT5 Receiver Box - 250 meters - Full View
DVI Over CAT5 Receiver Box - 250 meters - Full View

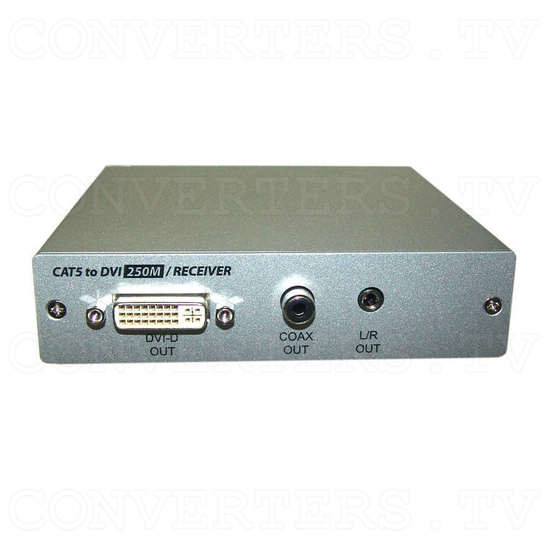

DVI Over CAT5 Receiver Box - 250 meters - Front View
DVI Over CAT5 Receiver Box - 250 meters - Front View

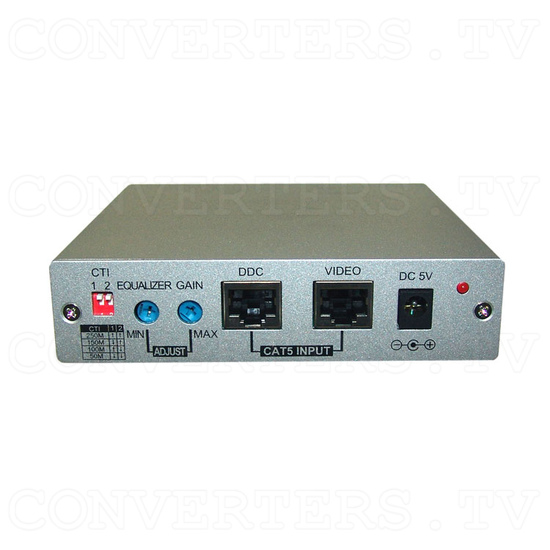

DVI Over CAT5 Receiver Box - 250 meters - Back View
DVI Over CAT5 Receiver Box - 250 meters - Back View
DVI Over CAT5 Receiver Box - 250 meters - Power Supply 110v OR 240v
DVI Over CAT5 Receiver Box - 250 meters - Power Supply 110v OR 240v
DVI Over CAT5 Receiver Box - 250 meters - Full Kit
DVI Over CAT5 Receiver Box - 250 meters - Full Kit
