OSD Menu:
- Read only vertical (not adjustable)
- Read only horizontal (not adjustable)
- SYNC adj (user adjustable)
- Horizontal shift (factory preset)
- Vertical shift (factory preset)
- Horizontal width (factory preset)
- Vertical width (user adjustable)
- Clock skew (factory preset)
- Contrast (user adjustable)
- Interlace adj (user adjustable)
Other Information
- Has CE certification
- Complies with FCC

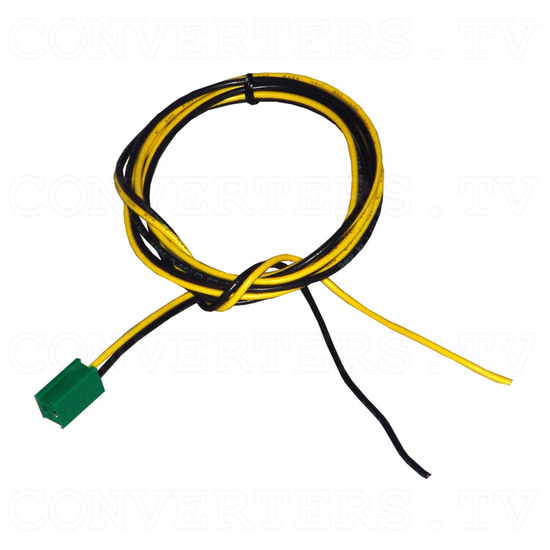

- Power: +12VDC @ 0.3A
Conversion Table (all frequencies are RGB Analog)
- Input of 15.750kHz(cga) can be converted to 25khz(ega) or 31.5 kHz(vga)
- Input of 25khz(ega) can be converted to 15.750kHz(cga) or 31.5 kHz(vga)
- Input of 31.5 kHz(vga) can be converted to 15.750kHz(cga) or 25khz(ega)

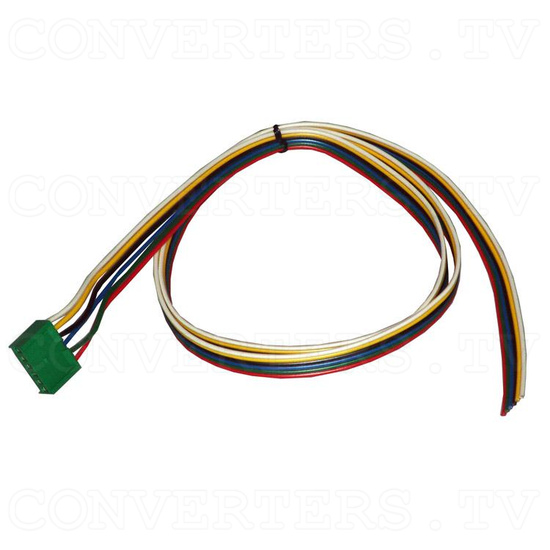

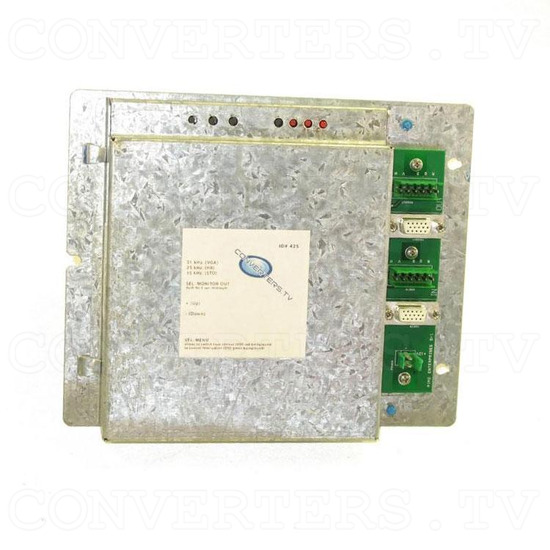

CGA / EGA Connection pinout:
- Pin 1 - R (red)
- Pin 2 - G (green)
- Pin 3 - B (blue
- Pin 4 - (ground)
- Pin 5 - V (vertical sync)
- Pin 6 - H (horizontal sync)
VGA Connection pinout:
- Pin 1 - R (red)
- Pin 2 - G (green)
- Pin 3 - B (blue)
- Pin 5 - (ground)
- Pin 6 - ( " )
- Pin 7 - ( " )
- Pin 8 - ( " )
- Pin 13 - H (horizontal sync)
- Pin 14 - V (vertical sync)
To Reset:
The Operation Manual has the original settings for each Output Monitor listed on the last page. Please refer to this.
Select the Output Monitor data panel for the monitor you are using. (RGB@15kHz, RGB@25kHz or VGA).
Then select the Input Signal type column that your source equipment is sending into the ID#425. ( VGA, DOS, 25kHz, 15kHz NI, 15kHz 50Hz NI, 15kHz 60Hz I ).
Disconnect your input source from the ID#425. Leave your monitor connected. The menu should now appear.
Simply put the data in from the corresponding column of the Output Monitor and Input Signal type.
Once data is input, reconnect your input source to the ID#425.
