4k2k HDMI EDID Emulator

Product ID :

15227

Price :

95.50 USD (Change Currency)

RRP: 89.00 USD

(less discount USD )

Available :

Stock

Freight Quote On Sale Contact Staff

4k2k HDMI EDID Emulator is designed to allow adjustment of an HDMI or DVI display's EDID (Extended Display Identification Data) information. This is the information provided to the source device (eg DVD player or Set Top Box) so that the best video and audio signal can be automatically selected for display. It also supports EDID Emulation and By-pass Modes.

The 4k2k HDMI EDID Emulator aims to simplify the technical complications involved with Video/Audio system integration of Home Theatre installations and with testing and experimentation using electronic video and audio equipment. The 4k2k HDMI EDID Emulator can 'read' and 'write' an equipments EDID with simple button opertion and a PC software program allows for the storage and retrieval of collected EDID information.

Applications:

HDMI / DVI EDID manipulation
Video/Audio system integration
Home Theatre installation
Video and Audio equipment testing
EDID preset management

Unit Dimensions:	7.1 x 7.5 x 2.3 cm	Shipping Weight:	0.28 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (564.5 KB)

4k2k HDMI EDID Emulator - Product Details

Features:

HDMI and DVI compliant
Supports HDMI features:
High video bandwidth up to 300MHz / 9Gbps
Resolutions up to 1080p@60Hz and 4k2k@24/25/30Hz
12-bit Deep Colour
LPCM 7.1CH, Dolbt TrueHD, Dolby Digital Plus and DTS-HD Master Audio (sample rates: 32kHz ~ 192kHz)
Supports 4 different EDID functions:
Read: Reads the TV/Display's EDID information
Write: Overwrites the TV/Display's EDID information (TV/Display must support overwrite function)
Emulator: allows the source device to read the selected EDID information from the unit's Default or Learned EDID memory
Bypass: allows the source device to read the EDID information directly from the TV/Display
Supports up to 8 sets of default EDID settings
Supports DVI sources by using a DVI / HDMI adaptor
Supports CEC (Consumer Electronics Control)) and EDID pass-through
Supports power sources from USB or compatible HDMI input

Specifications:

Video Bandwidth: 300Mbps / 9 Gbps
Input Ports: 1 x HDMI, 1 x mini-USB (power only)
Output Port: 1 x HDMI
HDMI input cable distance: 10m@1080p/12-bit, 5m@4k2k
HDMI output cable distance: 10m@1080p/12-bit, 5m@4k2k
Resolutions: VGA ~ WUXGA; 1080p@60Hz; 4k2k@24/25/30Hz
Power: USB +5vDC 500ma
Power consumption (w): 2.5w
Dimensions (cm): 7.1(l) x 7.1(w) x 2.3(h)
Weight (g): 108g
Chassis: Black Metal
Operating Temp: 0c ~ 40c
Relative Humidity: 20% ~ 90% RH (non-condensing)
ESD Protection: Human Body Model: ±8kV (air-gap); ±4kV (contact)

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV)	HDMI (HDTV)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i 4K x 2K WXGA (1280 X 768 @ 5:3)	VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i 4K x 2K WXGA (1280 X 768 @ 5:3)

What is included with 4k2k HDMI EDID Emulator

1 x 4k2k HDMI EDID Emulator
1 x User Manual
1 x USB to USB-D Plug
1 x Product Manual

4k2k HDMI EDID Emulator Images

4k2k HDMI EDID Emulator - Full View

4k2k HDMI EDID Emulator - Front View

4k2k HDMI EDID Emulator - Back View

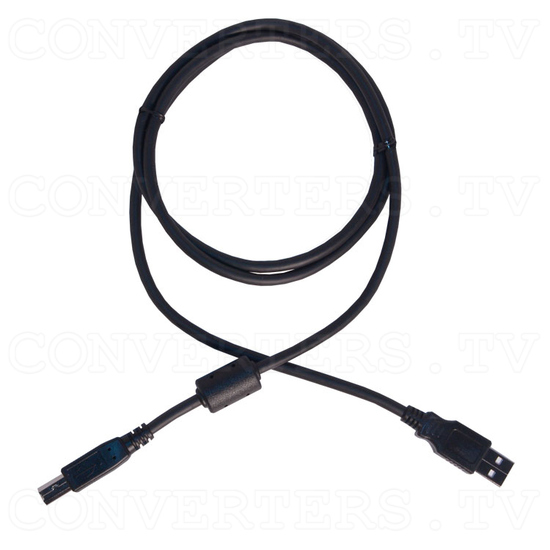

4k2k HDMI EDID Emulator - USB to USB-D Plug
