The 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is a 2012 model TFT-LCD monitor from our range of LCD based Industrial style RGB to VGA converters. Specifically designed for the retrofit of older style CRT monitors commonly found in CNC machinery and Arcade Game cabinets, the simple open frame panel construction with a detachable controller ensures easy installation and connection. Inbuilt automatic detection of the source signal allows for quick and easy connection while a comprehensive OSD menu allows for total control of image size, position and overall appearance. The 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is rated for upscale to SXGA resolution and accepts various CGA, EGA and VGA display timings. Video signal input to the panel is via a 15 pin D-sub connector. A special RGB adaptor is supplied for connection of CGA and EGA RGB combined and separate sync circuitry. The RGB adaptor also allows control over colour intensity and impedance matching. With the addition of a Resistive Touch-screen panel, the 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel becomes a very powerful tool when used in Industrial, Commercial or Educational applications. The touch screen can be operated by finger or stylus contact and gives easy, accurate control over displayed screen functions. The 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel display has a full 16.7M colour range with 5:4 aspect ratio and a wide viewing angle.
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel

19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel



Made In Taiwan

Product ID : 15249
Price : 610.00 USD (Change Currency)
Available : Stock


  Freight Quote
Contact Staff


The 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is a 2012 model TFT-LCD monitor from our range of LCD based Industrial style RGB to VGA converters. Specifically designed for the retrofit of older style CRT monitors commonly found in CNC machinery and Arcade Game cabinets, the simple open frame panel construction with a detachable controller ensures easy installation and connection. Inbuilt automatic detection of the source signal allows for quick and easy connection while a comprehensive OSD menu allows for total control of image size, position and overall appearance.

The 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is rated for upscale to SXGA resolution and accepts various CGA, EGA and VGA display timings. Video signal input to the panel is via a 15 pin D-sub connector. A special RGB adaptor is supplied for connection of CGA and EGA RGB combined and separate sync circuitry. The RGB adaptor also allows control over colour intensity and impedance matching.

With the addition of a Resistive Touch-screen panel, the 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel becomes a very powerful tool when used in Industrial, Commercial or Educational applications. The touch screen can be operated by finger or stylus contact and gives easy, accurate control over displayed screen functions. The 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel display has a full 16.7M colour range with 5:4 aspect ratio and a wide viewing angle.


Unit Dimensions: 40.6 x 33.2 x 4.4 cm Shipping Weight: 4.50 kg
Location: NSW, Australia Item Type: CRT + LCD Monitors
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL


19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Product Details


Features:

  • Easy to instal Open Frame construction
  • Simple to connect and operate
  • Lightweight and sturdy full metal construction
  • Detachable Control bar
  • Plug'n'Play functionality with DDC (Display Data Channel) support for EDID (Extended Display Identification Data)
  • 3M Resistive Touch Screen controller in-built
  • Input Mode: CGA, EGA, VGA
  • Input Syncs: Combined (HV); Separate (H+V) and SoG (Sync on Green)
  • Input Connection: VGA 15pin D-sub or RGB Adaptor PCB
  • Auto input signal detect and adjustment
  • Max Output Resolution: SXGA (1280*1024)
  • Full OSD interface for image display quality
  • In-built Power Saver function ('sleeps' when idle, 'awake' when operated)
  • Screen Treatment: Anti-Glare; Hard Coating (3H)

Specifications:

  • Screen Size(diag): 19 Inch TFT
  • Screen Size(cm): 37.8 (w) x 30.1 (h)
  • Panel Size(cm): 40.6 (w) x 33.2 (h) x 4.4 (d)
  • Pixel Pitch(mm): 0.098*RGB(H)mm x 0.294(V)mm
  • Blacklight: 2 x CCFL
  • Cell Type: TN
  • Scan Frequency (H): 15 ~ 85kHz
  • Scan Frequency (V): 48 ~ 75Hz
  • Colours: 16.7M (6 bits + FRC)
  • Colour Config: R.G.B. Stripe
  • Aspect Ratio: 5:4
  • Contrast Ratio: 700:1(min) 1000:1(typ)
  • Max Resolution: SXGA (1280*1024)
  • Viewing angle: Viewing Angle Free [ R/L 140(Typ.), U/D 140(Typ.) ]
  • Bandwidth: 130MHz Dot Clock
  • Brightness: 250cd/m2
  • Weight: 4.325kg
  • Power: 100-240vAC to 12vDC 5A (centre positive)
  • Power Consumption(watts): Total 21.05Watt(Typ.), (2.45Watt @VLCD, 18.60 @[Lamp=6.5mA])
  • Operating Temperature: 0C ~ 50C
  • Storage Temperature: -20C ~ 60C
  • Humidity: 10 ~ 90%
  • ROHS Compliant

CGA + EGA + VGA + SVGA Input Specifications:

  • CGA - 15.4kHz x 58.8Hz (Resolution - 640x198 @ 58)
  • CGA - 15.1kHz x 57.6Hz (Resolution - 640x215 @ 57)
  • CGA - 15.7kHz x 60Hz (Resolution - 640x215 @ 60)
  • CGA - 16.0kHz x 61Hz (Resolution - 640x215 @ 61)
  • CGA - 16.3kHz x 62Hz (Resolution - 640x215 @ 62)
  • CGA - 16.6kHz x 63.4Hz (Resolution - 640x215 @ 63.4)
  • CGA - 16.80kHz x 64Hz (Resolution - 640x215 @ 64)
  • CGA - 15.6kHz x 50.3Hz (Resolution - 640x265 @ 50)
  • EGA - 21.8kHz x 58.9Hz (Resolution - 640x350 @58)
  • EGA - 24.4kHz x 59.5Hz (Resolution - 645x355 @59)
  • EGA - 23.5kHz x 52Hz (Resolution - 720x378 @52)
  • EGA - 26.4kHz x 57.4Hz (Resolution - 720x400 @57)
  • VGA - 31.469kHz x 70.087Hz (Resolution - 640x400 @ 70)
  • VGA - 31.469kHz x 59.940Hz (Resolution - 640x480 @ 60)
  • VGA - 37.861kHz x 72.809Hz (Resolution - 640x480 @ 72)
  • VGA - 37.500kHz x 75.000Hz (Resolution - 640x480 @ 75)
  • SVGA - 35.156kHz x 56.250Hz (Resolution - 800x600 @ 56)
  • SVGA - 37.879kHz x 60.317Hz (Resolution - 800x600 @ 60)
  • SVGA - 48.077kHz x 72.188Hz (Resolution - 800x600 @ 72)
  • SVGA - 46.875kHz x 75.000Hz (Resolution - 800x600 @ 75)

Other Supported Resolutions:

  • 640*350@70Hz
  • 640*480@59/60/66/72/75Hz
  • 800*600@35/37/46/48/56/60/72/75Hz
  • 1024*768@60/70/75Hz
  • 1280*960@60Hz
  • 1280*1024@60/75Hz
  • 1366@768@50/60Hz

Power Supplies:

  • Multi-Voltage Power Supply : Power Supply 100-240V 50-60hz 1.2A - 12v 5000mA


Video and Audio Connection Type


Connects From : Connects To :
  • USB (PC) Type A Device Ports
  • VGA 15pin D-Sub (15k/24k/31kHz)


Video and Audio Signal Conversion


Converts From : Converts To :
  • VGA (640 x 480 @ 4:3)
  • EGA (24K)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • RGB (15K Video)
  • RGB Sync on Green RGsB
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • RGB 31K
  • CGA Combined Sync (15khz)
  • CGA Separate Sync (15khz)
  • CGA Sync on Green (15khz)
  • SXGA (1280 x 1024 @ 5:4)


What is included with 19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel


  • 1 x 19 Inch Delta CGA EGA Multi-Frequency to SXGA Res-Touch Screen LCD
  • 1 x VGA Cable
  • 1 x USB cable
  • 1 x 6 Pin Header Plug
  • 1 x 250V Power Cord
  • 1 x RGB PCB Interface Board
  • 1 x Power Supply 100-240V 50-60hz 1.2A - 12v 5000mA

19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel Images


19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Full View
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Full View
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Front View
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Front View

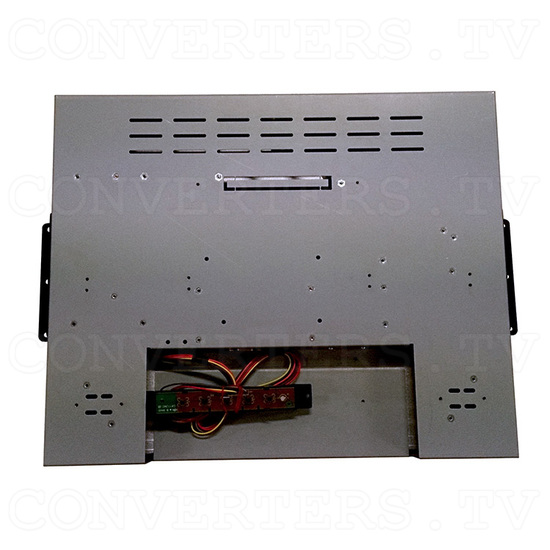

19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Back View
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Back View
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Connection View
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Connection View

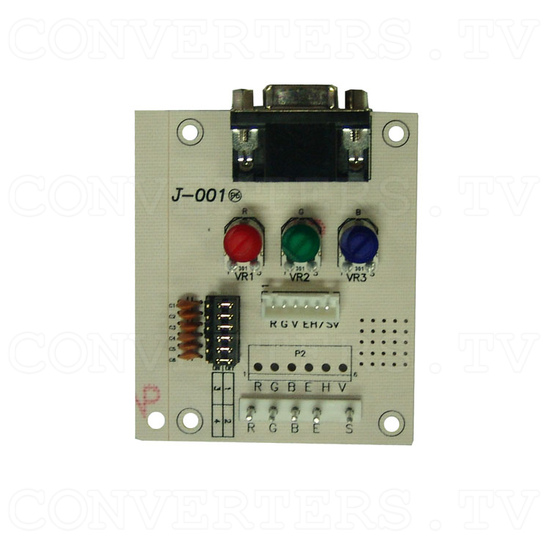

19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - RGB PCB Interface Board
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - RGB PCB Interface Board
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - VGA Cable
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - VGA Cable

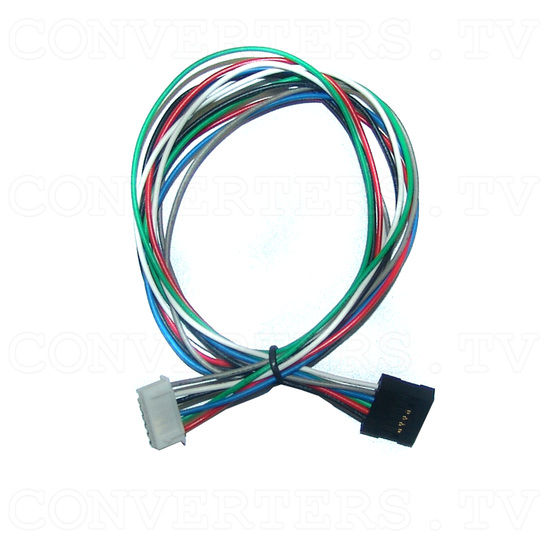

19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - 6 Pin Header Plug
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - 6 Pin Header Plug
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - USB cable
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - USB cable

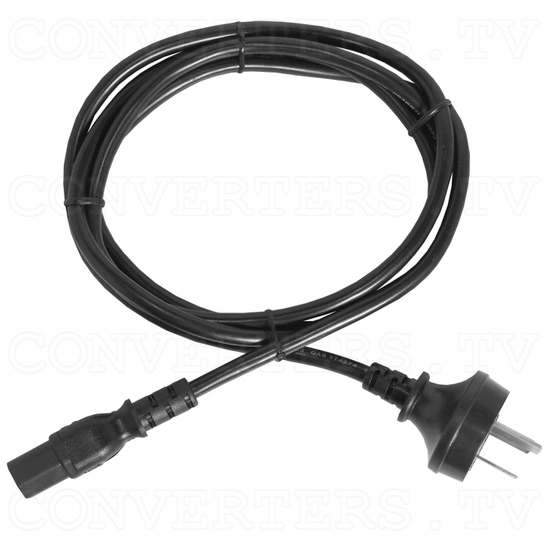

19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - 250V Power Cord
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - 250V Power Cord
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Power Supply 110v OR 240v
19 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Power Supply 110v OR 240v
