17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel

save 18%

Product ID :

15106

Price :

375.00 USD (Change Currency)

RRP: 459.40 USD

(less sale discount 84.40 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The 17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel is a 2012 model TFT-LCD monitor from our range of LCD based Industrial style RGB to VGA converters. Specifically designed for the retrofit of older style CRT monitors commonly found in CNC machinery and Arcade Game cabinets, the simple open frame panel construction with a detachable controller ensures easy installation and connection. Inbuilt automatic detection of the source signal allows for quick and easy connection while a comprehensive OSD menu allows for total control of image size, position and overall appearance.

The 17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel is rated for upscale to SXGA resolution and accepts various CGA, EGA and VGA display timings. Video signal input to the panel is via a 15 pin D-sub connector. A special RGB adaptor is supplied for connection of CGA and EGA RGB combined and separate sync circuitry. The RGB adaptor also allows control over colour intensity and impedance matching.

Display is full 16.7M colour range with 5:4 aspect ratio and wide viewing angle.

Unit Dimensions:	36.0 x 4.4 x 30.0 cm	Shipping Weight:	5.00 kg
Location:	NSW, Australia	Item Type:	RGB Open Frame LCD Monitors
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (480.02 KB)

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Product Details

Features:

Easy to instal Open Frame construction
Simple to connect and operate
Lightweight and sturdy full metal construction
Detachable Control bar
Plug'n'Play functionality with DDC (Display Data Channel) support for EDID (Extended Display Identification Data)
Input Mode: CGA, EGA, VGA
Input Syncs: Combined (HV); Separate (H+V) and SoG (Sync on Green)
Input Connection: VGA 15pin D-sub or RGB Adaptor PCB
Auto input signal detect and adjustment
Full OSD interface for image display quality
In-built Power Saver function ('sleeps' when idle, 'awake' when operated)
Screen Treatment: Anti-Glare; Hard Coating (3H)

Specifications:

Screen Size(diag): 17 Inch TFT
Screen Size(cm): 33.7 (w) x 27.3 (h)
Panel Size(cm): 36.0 (w) x 30.0 (h) x 4.4 (d)
Pixel Pitch(mm): 0.297 (w) x 0.297 (h)
Blacklight: 2 x CCFL
Cell Type: TN
Scan Frequency (H): 15 ~ 85kHz
Scan Frequency (V): 48 ~ 75Hz
Colours: 16.7M (6 bits + FRC)
Colour Config: R.G.B. Stripe
Aspect Ratio: 5:4
Contrast Ratio: 700:1(min) 1000:1(typ)
Max Resolution: SXGA (1280*1024)
Viewing angle:
Bandwidth: 130MHz Dot Clock
Brightness: 250cd/m2
Weight: 3.35kg
Power: 100-240vAC to 12vDC 5A (centre positive)
Power Consumption(watts): 14.45W
Operating Temperature: 0C ~ 60C
Storage Temperature: -20C ~ 60C
Humidity: 5 ~ 95%
ROHS Compliant

CGA + EGA + VGA + SVGA Input Specifications:

CGA - 15.4kHz x 58.8Hz (Resolution - 640x198 @ 58)
CGA - 15.1kHz x 57.6Hz (Resolution - 640x215 @ 57)
CGA - 15.7kHz x 60Hz (Resolution - 640x215 @ 60)
CGA - 16.0kHz x 61Hz (Resolution - 640x215 @ 61)
CGA - 16.3kHz x 62Hz (Resolution - 640x215 @ 62)
CGA - 16.6kHz x 63.4Hz (Resolution - 640x215 @ 63.4)
CGA - 16.80kHz x 64Hz (Resolution - 640x215 @ 64)
CGA - 15.6kHz x 50.3Hz (Resolution - 640x265 @ 50)
EGA - 21.8kHz x 58.9Hz (Resolution - 640x350 @58)
EGA - 24.4kHz x 59.5Hz (Resolution - 645x355 @59)
EGA - 23.5kHz x 52Hz (Resolution - 720x378 @52)
EGA - 26.4kHz x 57.4Hz (Resolution - 720x400 @57)
VGA - 31.469kHz x 70.087Hz (Resolution - 640x400 @ 70)
VGA - 31.469kHz x 59.940Hz (Resolution - 640x480 @ 60)
VGA - 37.861kHz x 72.809Hz (Resolution - 640x480 @ 72)
VGA - 37.500kHz x 75.000Hz (Resolution - 640x480 @ 75)
SVGA - 35.156kHz x 56.250Hz (Resolution - 800x600 @ 56)
SVGA - 37.879kHz x 60.317Hz (Resolution - 800x600 @ 60)
SVGA - 48.077kHz x 72.188Hz (Resolution - 800x600 @ 72)
SVGA - 46.875kHz x 75.000Hz (Resolution - 800x600 @ 75)

Other Supported Resolutions:

640*350@70Hz
640*480@59/60/66/72/75Hz
800*600@35/37/46/48/56/60/72/75Hz
1024*768@60/70/75Hz
1280*960@60Hz
1280*1024@60/75Hz
1366@768@50/60Hz

Power Supplies:

Multi-Voltage Power Supply : Power Supply 100-240V 50-60hz 1.2A - 12v 5000mA

Video and Audio Connection Type

Connects From :	Connects To :
VGA 15pin D-Sub (15k/24k/31kHz)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) EGA (24K) SVGA (800 x 600 @ 4:3) RGB (15K Video) RGB Sync on Green RGsB RGB Combined Sync - RGBH+V RGB Separate Sync - RGBHV RGB 31K CGA Combined Sync (15khz) CGA Separate Sync (15khz) CGA Sync on Green (15khz)	SXGA (1280 x 1024 @ 5:4)

What is included with 17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel

1 x 17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel
1 x 15 Pin D-sub VGA Cable
1 x 6 Pin to 6 Pin Header Plug Wire Cable
1 x 100-240vAC Power Cable
1 x Product Manual
1 x RGB PCB Interface Board
1 x 5 Pin RGB Cable
1 x Power Supply 100-240V 50-60hz 1.2A - 12v 5000mA

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel Images

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Full View

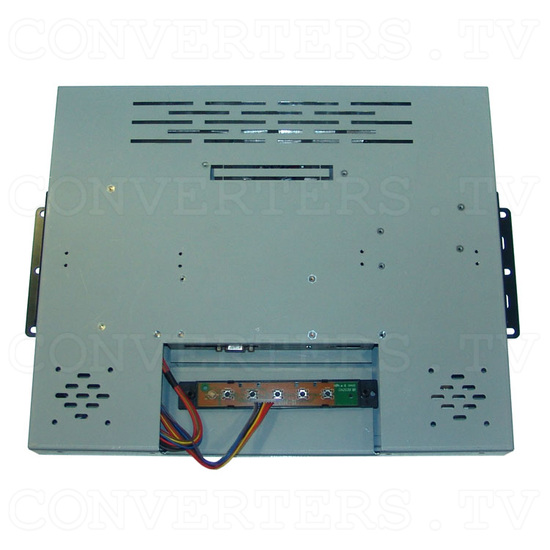

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Back View

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Bottom View

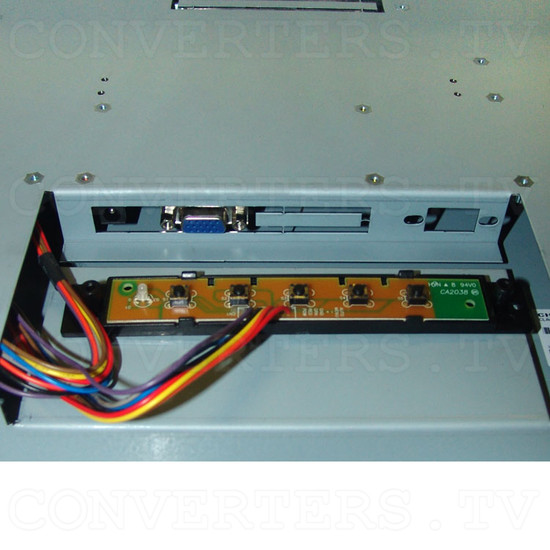

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Connection - Detail

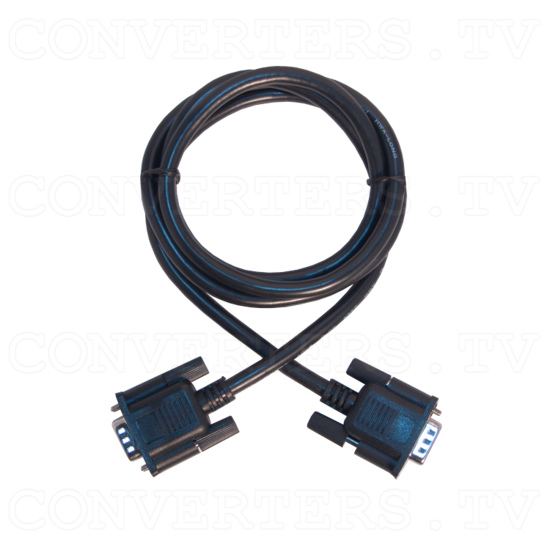

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - VGA Cable

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - 6 Pin Header Plug

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - 250V Power Cord

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - PCB - Full View

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - PCB - Top View

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - 5 Pin RGB Cable

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Power Supply 110v OR 240v

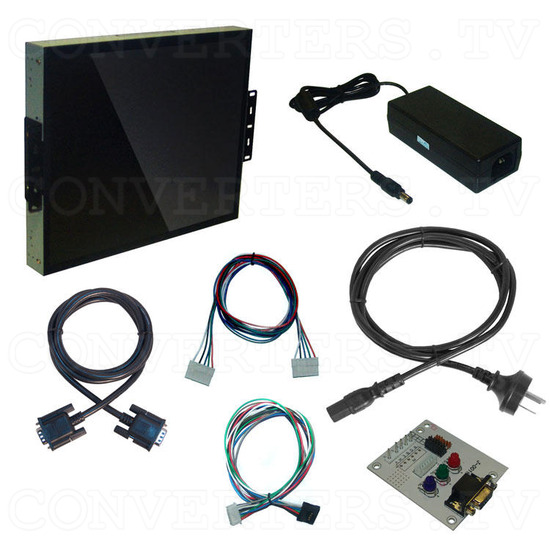

17 Inch Delta CGA EGA Multi-frequency to SXGA LCD Panel - Full Kit
