15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel

save 13%

Superseded

The 15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel is a model TFT-LCD monitor and is from our range of LCD based Industrial style RGB to VGA converters. Specifically designed for retrofit of older style CRT monitors commonly found in CNC machinery and Arcade Game cabinets, the simple open frame panel construction with detachable controller ensures easy instal and connection. Inbuilt auto detection of the source signal allows for quick and easy connection while a comprehensive OSD menu allows for total control of image size, position and overall appearance.

The 15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel is rated for upscale to XGA resolution and accepts various CGA, EGA and VGA display timings. Video signal input to the panel is via a 15 pin D-sub connector. A special RGB adaptor is supplied for connection of CGA and EGA RGB combined and separate sync circuitry. The RGB adaptor also allows control over colour intensity and impedance matching.

Display is full 16.7M colour range with 5:4 aspect ratio and wide viewing angle.

Unit Dimensions:	32.8 x 25.7 x 4.4 cm	Shipping Weight:	3.55 kg
Location:	NSW, Australia	Item Type:	RGB Open Frame LCD Monitors
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (479.36 KB)

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Product Details

Features:

Easy to instal Open Frame construction
Simple to connect and operate
Lightweight and sturdy full metal construction
Detachable Control bar
Plug'n'Play functionality with DDC (Display Data Channel) support for EDID (Extended Display Identification Data)
Input Mode: CGA, EGA, VGA
Input Syncs: Combined (HV); Separate (H+V) and SoG (Sync on Green)
Input Connection: VGA 15pin D-sub or RGB Adaptor PCB
Auto input signal detect and adjustment
Full OSD interface for image display quality
In-built Power Saver function ('sleeps' when idle, 'awake' when operated)
Screen Treatment: Anti-Glare; Hard Coating (3H)

Specifications:

Screen Size(diag): 15 Inch TFT
Screen Size(cm): 30.7 (w) x 23.1 (h)
Panel Size(cm): 32.8 (w) x 25.7 (h) x 4.4 (d)
Pixel Pitch(mm): 0.297 (w) x 0.297 (h)
Blacklight: 2 x CCFL
Cell Type: TN
Scan Frequency (H): 15 ~ 85kHz
Scan Frequency (V): 48 ~ 75Hz
Colours: 16.7M (6 bits + FRC)
Colour Config: R.G.B. Stripe
Aspect Ratio: 5:4
Horizontal Viewing Angle: Full range
Contrast Ratio: 500:1
Max Resolution: XGA (1024*768)
Bandwidth: 130MHz Dot Clock
Brightness: 250cd/m2
Weight: 2.468kg
Power: 100-240vAC to 12vDC 5A (centre positive)
Power Consumption(watts): 13.35W
Operating Temperature: 0C ~ 60C
Storage Temperature: -20C ~ 60C
Humidity: 5 ~ 95%
ROHS Compliant

CGA + EGA + VGA + SVGA Input Specifications:

CGA - 15.4kHz x 58.8Hz (Resolution - 640x198 @ 58)
CGA - 15.1kHz x 57.6Hz (Resolution - 640x215 @ 57)
CGA - 15.7kHz x 60Hz (Resolution - 640x215 @ 60)
CGA - 16.0kHz x 61Hz (Resolution - 640x215 @ 61)
CGA - 16.3kHz x 62Hz (Resolution - 640x215 @ 62)
CGA - 16.6kHz x 63.4Hz (Resolution - 640x215 @ 63.4)
CGA - 16.80kHz x 64Hz (Resolution - 640x215 @ 64)
CGA - 15.6kHz x 50.3Hz (Resolution - 640x265 @ 50)
EGA - 21.8kHz x 58.9Hz (Resolution - 640x350 @58)
EGA - 24.4kHz x 59.5Hz (Resolution - 645x355 @59)
EGA - 23.5kHz x 52Hz (Resolution - 720x378 @52)
EGA - 26.4kHz x 57.4Hz (Resolution - 720x400 @57)
VGA - 31.469kHz x 70.087Hz (Resolution - 640x400 @ 70)
VGA - 31.469kHz x 59.940Hz (Resolution - 640x480 @ 60)
VGA - 37.861kHz x 72.809Hz (Resolution - 640x480 @ 72)
VGA - 37.500kHz x 75.000Hz (Resolution - 640x480 @ 75)
SVGA - 35.156kHz x 56.250Hz (Resolution - 800x600 @ 56)
SVGA - 37.879kHz x 60.317Hz (Resolution - 800x600 @ 60)
SVGA - 48.077kHz x 72.188Hz (Resolution - 800x600 @ 72)
SVGA - 46.875kHz x 75.000Hz (Resolution - 800x600 @ 75)

Other Supported Resolutions:

640*350@70Hz
640*480@59/60/66/72/75Hz
800*600@35/37/46/48/56/60/72/75Hz
1024*768@60/70/75Hz
1280*960@60Hz
1280*1024@60/75Hz
1366@768@50/60Hz

Power Supplies:

Multi-Voltage Power Supply : Power Supply 100-240V 50-60hz 1.2A - 12v 5000mA

Video and Audio Connection Type

Connects From :	Connects To :
RGB Combined Sync - RGBH+V RGB Separate Sync - RGBHV RGB Sync on Green - RGsB CGA (15K) VGA 15pin D-Sub (31K+)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) CGA (15k) EGA (24K) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) RGB (15K Video) RGB Sync on Green RGsB CGA Compatible 15K Video Source RGB Combined Sync - RGBH+V RGB Separate Sync - RGBHV RGB 31K CGA Combined Sync (15khz) CGA Separate Sync (15khz) CGA Sync on Green (15khz)	XGA (1024 x 768 @ 4:3)

What is included with 15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel

1 x 15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel
1 x 6 Pin Header Plug
1 x 5 Pin RGB Cable
1 x Product Manual
1 x 250V Power Cord
1 x RGB PCB Interface Board
1 x Power Supply 100-240V 50-60hz 1.2A - 12v 5000mA

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel Images

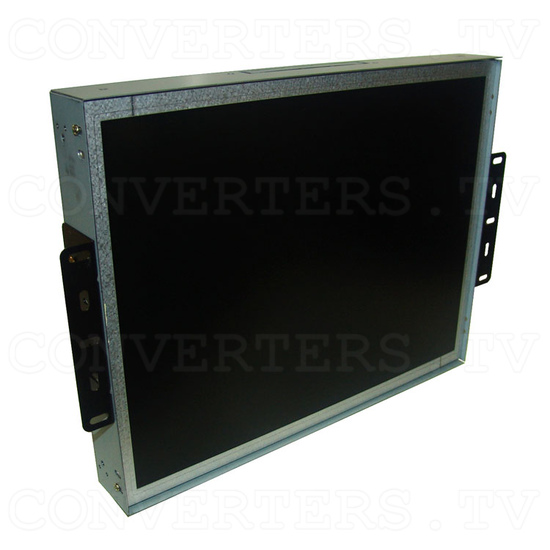

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Full View

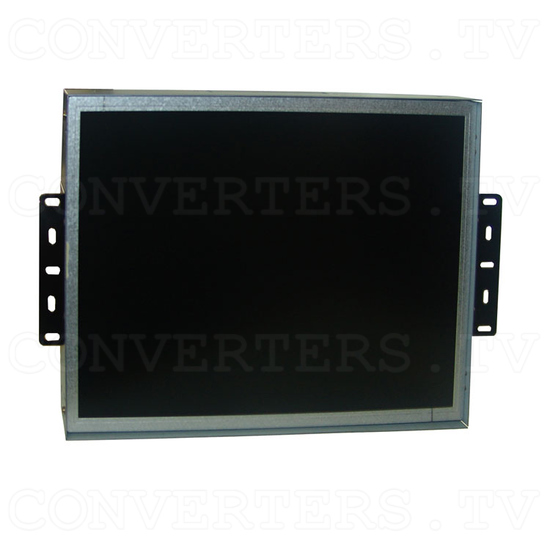

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Front View

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Back View

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Side View

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Bottom View

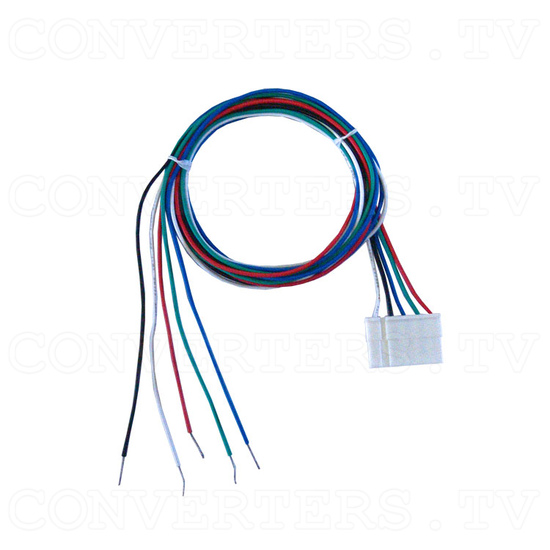

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - 5 Pin RGB Cable

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - 6 Pin Header Plug

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - RGB PCB Interface Board

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - 250V Power Cord

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Power Supply 110v OR 240v

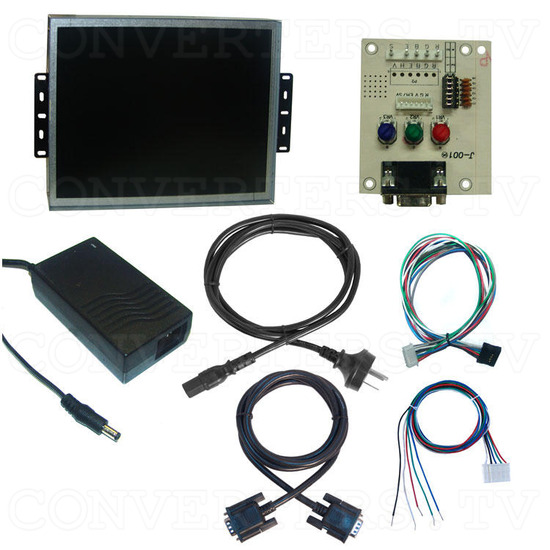

15 Inch Delta CGA EGA Multi-frequency to XGA LCD Panel - Full Kit
