Advanced 12.1 Inch CGA EGA VGA to SVGA LCD Panel (Normal Viewing Angle), which can accept a wide range of RGB inputs including CGA, EGA, VGA and SVGA. Ideal as an update for replacement of older superceded CRT and LCD monitors, this unit is made for CNC Industrial and Commercial applications. The VESA plug & play system allows the monitor to automatically adjust itself to the match the frequency of the user's connected input device. The frequency range for horizontal is 15KHz to 47KHz and for vertical is 48Hz to 75Hz. For users connecting this model to a computer it uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer, so the computer system can be set to monitor auto adjust. This model of monitor will auto adjust itself to enhance the picture quality of the device connected to it. As well as self test function which will check to ensure all functions of the monitor are working properly. To ensure maximum compatibility with input signals, it has more timing data and resolutions than any other LCD panel. The current resolution and timing information for the connected input device is displayed in the top bar of the OSD menu. Image positioning for Horizontal and Vertical and an all important crush feature allows you to shrink the size of the image both horizontal and vertically to make the image fit on the screen. The monitor has a Super MVA - Wide Viewing Angle. As well as a OSD menu and a self test function. The easy to understand and clear graphics of the OSD (on screen display) menu make it simple to make any changes neccessary. Power Supply for the 12.1 Inch CGA EGA VGA to SVGA LCD Panel can be 110VAC or 240VAC, regulated via a Universal Switch Mode Power Adapter to 12VDC 4A. (Please specify power cord required when ordering.)
12.1 Inch CGA EGA VGA to SVGA LCD Panel

12.1 Inch CGA EGA VGA to SVGA LCD Panel



Made In Taiwan

Product ID : 00492
Price : 450.00 USD (Change Currency)
Available : 2-4 Weeks


  Freight Quote On Sale
Contact Staff


Advanced 12.1 Inch CGA EGA VGA to SVGA LCD Panel (Normal Viewing Angle), which can accept a wide range of RGB inputs including CGA, EGA, VGA and SVGA. Ideal as an update for replacement of older superceded CRT and LCD monitors, this unit is made for CNC Industrial and Commercial applications.

The VESA plug & play system allows the monitor to automatically adjust itself to the match the frequency of the user's connected input device. The frequency range for horizontal is 15KHz to 47KHz and for vertical is 48Hz to 75Hz.

For users connecting this model to a computer it uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer, so the computer system can be set to monitor auto adjust.

This model of monitor will auto adjust itself to enhance the picture quality of the device connected to it. As well as self test function which will check to ensure all functions of the monitor are working properly.

To ensure maximum compatibility with input signals, it has more timing data and resolutions than any other LCD panel. The current resolution and timing information for the connected input device is displayed in the top bar of the OSD menu.

Image positioning for Horizontal and Vertical and an all important crush feature allows you to shrink the size of the image both horizontal and vertically to make the image fit on the screen.

The monitor has a Super MVA - Wide Viewing Angle. As well as a OSD menu and a self test function. The easy to understand and clear graphics of the OSD (on screen display) menu make it simple to make any changes neccessary.

Power Supply for the 12.1 Inch CGA EGA VGA to SVGA LCD Panel can be 110VAC or 240VAC, regulated via a Universal Switch Mode Power Adapter to 12VDC 4A. (Please specify power cord required when ordering.)


Unit Dimensions: 28.5 x 4.5 x 21.0 cm Shipping Weight: 2.75 kg
Location: NSW, Australia Item Type: CRT + LCD Monitors
Condition: New Warranty : 12 Months
Certificates : CE, UL Manual : PDF User Manual (217.52 KB)


12.1 Inch CGA EGA VGA to SVGA LCD Panel - Product Details


Features:

  • Compact, durable metal casing.
  • Easy to adapt to CNC machines.
  • Function button control board can be placed in convenient position for access.
  • OSD menu for full display image management.
  • Input Modes: CGA/EGA/VGA to SVGA.
  • Resolution Range: 640 x 200 (CGA) to 800 x 600 (SVGA).
  • Auto Power Saver for when no signal is detected at inputs.
  • Fast Image display response time for when signal is detected at inputs.

Specifications:

  • Screen Size: 12.1 inch TFT
  • Aspect Ratio: 4:3
  • Weight: 1.2kg
  • Dimensions (cm's): 28.0(w) x 4.5(d) x 21.0(h)
  • Input Mode: CGA/EGA/VGA/SVGA
  • Max Resolution: 800 x 600
  • RGB CGA/EGA Input connections: 10 pin in-line plug.
  • RGB VGA Input connection: 15 pin D-sub socket.
  • Windows Compatibility: 98, 2000, XP
  • PC Interface: Analog Interface
  • Input Signal: 0.7Vpp Analog 75ohm
  • Sync: TTL level Separate, Composite
  • Sync Polarity: Positive (+ve) & Negative (-ve)
  • Scan Frequency Horizontal: 15~47KHZ
  • Scan Frequency Vertical 48~75Hz
  • Screen Horizontal Size: 246.0mm
  • Screen Vertical Size: 184.5mm
  • Colours: 262K Colors
  • 5 Function Keys: Power, Menu/Auto, Up, Down, Source/Esc
  • OSD Funcions: Contrast, Brightness, Sharpness, Phase, Clocking, Colour Temperature, Colour RGB, Auto Colour, Image Alignment (H and V), Screen test, OSD Timer, Language and Input source.
  • Power 100~240V 47/63Hz via 12VDC 4A adapter
  • Power Consumption: 25 Watts Max
  • Power management: Vesa-Dpms 25 watts Power down mode ≤3 Watts
  • Bandwidth: 30MHz Dot Clock
  • Pixel Pitch(mm): 0.3075 x 0.3075
  • Backlight: CCFL x 2
  • Cell Type: TN
  • Contrast Ratio: 500:1 Typ
  • Brightness: 200cd/m squared
  • Viewing Angle: H=140 degrees, V=110 degrees
  • Response Time: 35ms(on + off)
  • Operating Temperature: 0 degrees ~ 40 Degrees
  • Humidity - 10~85%

CGA + EGA + VGA + SVGA Input Specifications


  • CGA - 15.4kHz x 58.8Hz (Resolution - 640x198 @ 58)
  • CGA - 15.1kHz x 57.6Hz (Resolution - 640x215 @ 57)
  • CGA - 15.7kHz x 60Hz (Resolution - 640x215 @ 60)
  • CGA - 16.0kHz x 61Hz (Resolution - 640x215 @ 61)
  • CGA - 16.3kHz x 62Hz (Resolution - 640x215 @ 62)
  • CGA - 16.6kHz x 63.4Hz (Resolution - 640x215 @ 63.4)
  • CGA - 16.80kHz x 64Hz (Resolution - 640x215 @ 64)
  • CGA - 15.6kHz x 50.3Hz (Resolution - 640x265 @ 50)
  • CGA - 18.4kHz x 50Hz (Resolution - 640x350 @ 50)
  • EGA - 21.8kHz x 58.9Hz (Resolution - 640x350 @58)
  • EGA - 24.4kHz x 59.5Hz (Resolution - 645x355 @59)
  • EGA - 23.5kHz x 52Hz (Resolution - 720x378 @52)
  • EGA - 26.4kHz x 57.4Hz (Resolution - 720x400 @57)
  • VGA - 31.469kHz x 70.087Hz (Resolution - 640x400 @ 70)
  • VGA - 31.469kHz x 59.940Hz (Resolution - 640x480 @ 60)
  • VGA - 37.861kHz x 72.809Hz (Resolution - 640x480 @ 72)
  • VGA - 37.500kHz x 75.000Hz (Resolution - 640x480 @ 75)
  • SVGA - 35.156kHz x 56.250Hz (Resolution - 800x600 @ 56)
  • SVGA - 37.879kHz x 60.317Hz (Resolution - 800x600 @ 60)
  • SVGA - 48.077kHz x 72.188Hz (Resolution - 800x600 @ 72)
  • SVGA - 46.875kHz x 75.000Hz (Resolution - 800x600 @ 75)

Power Supplies:

  • Multi-Voltage Power Supply : Australian Power Cord 240V


Video and Audio Connection Type


Connects From : Connects To :
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA (15K)
  • VGA 15pin D-Sub (31K+)
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • RGB Sync on Green - RGsB
  • CGA (15K)
  • VGA 15pin D-Sub (31K+)


Video and Audio Signal Conversion


Converts From : Converts To :
  • VGA (640 x 480 @ 4:3)
  • CGA (15k)
  • EGA (24K)
  • SVGA (800 x 600 @ 4:3)
  • RGB (15K Video)
  • CGA Compatible 15K Video Source
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA Combined Sync (15khz)
  • CGA Separate Sync (15khz)
  • CGA Sync on Green (15khz)
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)


What is included with 12.1 Inch CGA EGA VGA to SVGA LCD Panel


  • 1 x 12.1 Inch CGA, EGA, VGA to XGA LCD Panel
  • 1 x VGA Cable
  • 1 x Product Manual
  • 1 x Power Adapter 110vAC - 240vAC to 12vDC 4A
  • 1 x 10 pin CGA Cable
  • 2 x Mounting Brackets and screws
  • 1 x 250V Power Cable 10A

12.1 Inch CGA EGA VGA to SVGA LCD Panel Images

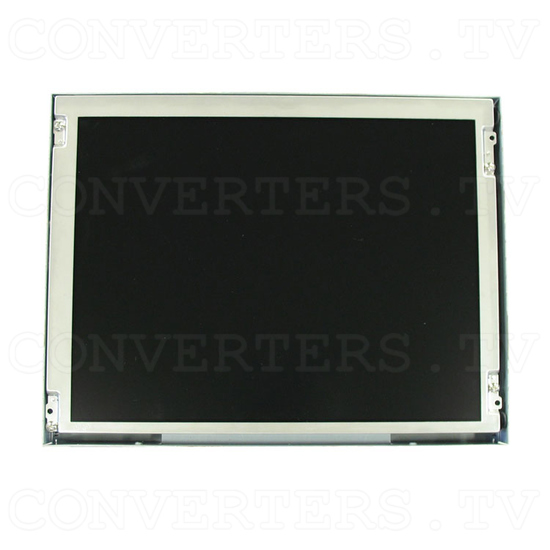

12.1 Inch CGA EGA VGA to SVGA LCD Panel - Full View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Full View

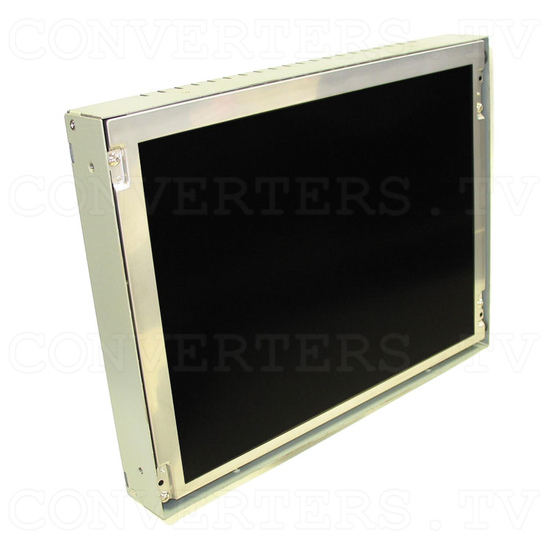

12.1 Inch CGA EGA VGA to SVGA LCD Panel - Front View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Front View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Back View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Back View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Top View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Top View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Bottom View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Bottom View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Side View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Side View
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Power Adapter
12.1 Inch CGA EGA VGA to SVGA LCD Panel - Power Adapter
12.1 Inch CGA EGA VGA to SVGA LCD Panel - USB Cable (Male to Male)
12.1 Inch CGA EGA VGA to SVGA LCD Panel - USB Cable (Male to Male)
12.1 Inch CGA EGA VGA to SVGA LCD Panel - VGA Cable
12.1 Inch CGA EGA VGA to SVGA LCD Panel - VGA Cable
12.1 Inch CGA EGA VGA to SVGA LCD Panel - 10 Pin RGB Cable
12.1 Inch CGA EGA VGA to SVGA LCD Panel - 10 Pin RGB Cable
12.1 Inch CGA EGA VGA to SVGA LCD Panel - USB Cable (Male to Male)
12.1 Inch CGA EGA VGA to SVGA LCD Panel - USB Cable (Male to Male)

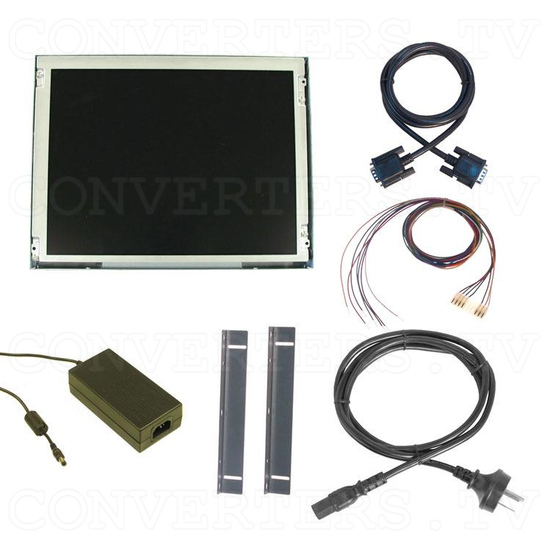

12.1 Inch CGA EGA VGA to SVGA LCD Panel - Full Kit
