  Home - 10.4 Inch CGA EGA VGA to SVGA LCD Panel Last Update: Fri 1st December 2023
Advanced 10.4 Inch CGA EGA VGA to SVGA LCD Panel, which can accept a wide range of RGB inputs of CGA, EGA, VGA to SVGA. Ideal as an update for replacement of older, smaller superceded CRT and LCD monitors, this unit is made for CNC Industrial and Commercial applications. The VESA plug & play system allows the monitor to automatically adjust itself to the match the frequency of the user's device. For users connecting this model to a computer it uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer, so the computer system can be set to monitor auto adjust. This model of monitor will auto adjust itself to enhance the picture quality of the device connected to it. As well as self test function which will check to ensure all functions of the monitor are working properly. To ensure maximum compatibility with input signals, it has more timing data and resolutions than other LCD panel. The current resolution and timing information for the connected input device is displayed in the top bar of the OSD menu. The 10.4 Inch CGA EGA VGA to SVGA LCD Panel has a Super Wide Viewing Angle. Also as a standard feature is the OSD menu (On Screen Display) and a Self-Test function. The easy to understand and clear graphics of the OSD (On Screen Display) menu make it simple to make any changes necessary. Power Supply for the 10.4 Inch CGA EGA VGA to SVGA LCD Panel can be 110VAC or 240VAC, regulated via a Universal Switch Mode Power Adapter to 12VDC 4A. (Please specify power cord required when ordering.)
10.4 Inch CGA EGA VGA to SVGA LCD Panel

10.4 Inch CGA EGA VGA to SVGA LCD Panel



Made In Taiwan

Product ID : 00464
Price : 450.00 USD (Change Currency)
Available : Stock


  Freight Quote
Contact Staff


Advanced 10.4 Inch CGA EGA VGA to SVGA LCD Panel, which can accept a wide range of RGB inputs of CGA, EGA, VGA to SVGA. Ideal as an update for replacement of older, smaller superceded CRT and LCD monitors, this unit is made for CNC Industrial and Commercial applications.

The VESA plug & play system allows the monitor to automatically adjust itself to the match the frequency of the user's device.

For users connecting this model to a computer it uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer, so the computer system can be set to monitor auto adjust.

This model of monitor will auto adjust itself to enhance the picture quality of the device connected to it. As well as self test function which will check to ensure all functions of the monitor are working properly.

To ensure maximum compatibility with input signals, it has more timing data and resolutions than other LCD panel. The current resolution and timing information for the connected input device is displayed in the top bar of the OSD menu.

The 10.4 Inch CGA EGA VGA to SVGA LCD Panel has a Super Wide Viewing Angle. Also as a standard feature is the OSD menu (On Screen Display) and a Self-Test function. The easy to understand and clear graphics of the OSD (On Screen Display) menu make it simple to make any changes necessary.

Power Supply for the 10.4 Inch CGA EGA VGA to SVGA LCD Panel can be 110VAC or 240VAC, regulated via a Universal Switch Mode Power Adapter to 12VDC 4A. (Please specify power cord required when ordering.)


Unit Dimensions: 24.7 x 17.7 x 3.0 cm Shipping Weight: 3.00 kg
Location: NSW, Australia Item Type: RGB Open Frame LCD Monitors
Condition: New Warranty : 12 Months
Certificates : CE, UL Manual : PDF User Manual (332.18 KB)


10.4 Inch CGA EGA VGA to SVGA LCD Panel - Product Details


Features:

  • Compact, durable metal casing.
  • Easy to adapt to CNC machines.
  • Function button control board can be placed in convenient position for access.
  • OSD menu for full display image management.
  • Input Modes: CGA/EGA/VGA to SVGA.
  • Resolution Range: 640 x 200 (CGA) to 800 x 600 (SVGA).
  • Auto Power Saver for when no signal is detected at inputs.
  • Fast Image display response time for when signal is detected at inputs.

Specifications:

  • Screen Size: 10.4 inch TFT
  • Aspect Ratio: 4:3
  • Weight: 1.0kg
  • Dimensions (cm's): 24.7(w) x 3.0(d) x 17.6(h)
  • Input Mode: CGA/EGA/VGA/SVGA
  • Max Resolution: 800 x 600
  • RGB CGA/EGA Input connections: 10 pin in-line plug.
  • RGB VGA Input connection: 15 pin D-sub socket.
  • Windows Compatibility: 98, 2000, XP, and others
  • PC Interface: Analog Interface
  • Input Signal: 0.7Vpp Analog 75ohm
  • Sync: TTL level Separate, Composite,
  • Sync Polarity: Positive (+ve) & Negative (-ve)
  • Scan Frequency Horizontal: 15~48KHZ
  • Scan Frequency Vertical 50~75Hz
  • Screen Horizontal Size: 211.2mm
  • Screen Vertical Size: 158.4mm
  • Color Support: 262K Colors
  • 5 Function Keys: Power, Menu/Auto, Up, Down, Source/Esc
  • OSD Funcions: Contrast, Brightness, Sharpness, Phase, Clocking, Colour Temperature, Colour RGB, Auto Colour, Image Alignment (H and V), Screen test, OSD Timer, Language and Input source.
  • Power 100~240V 47/63Hz via 12VDC 4A adapter (Please specify when Ordering)
  • Power Consumption: 20W Max
  • Power Management: VESA-DPMS 20 watts. Power down mode ≤3 Watts.
  • Bandwidth: 30MHz Dot Clock
  • Pixel Pitch(mm): 0.264 x 0.264
  • Backlight: CCFL x 1
  • Cell Type: TN
  • Contrast Ratio: 500:1 Type
  • Brightness: 230cd/m squared
  • Viewing Angle: H=140 degrees, V=120 degrees
  • Response Time: 35ms(on + off) Type
  • Operating Temperature: 0 degrees ~ 40 Degrees
  • Humidity - 10~85%

CGA + EGA + VGA + SVGA Input Specifications


  • CGA - 15.4kHz x 58.8Hz (Resolution - 640x198 @ 58)
  • CGA - 15.1kHz x 57.6Hz (Resolution - 640x215 @ 57)
  • CGA - 15.7kHz x 60Hz (Resolution - 640x215 @ 60)
  • CGA - 16.0kHz x 61Hz (Resolution - 640x215 @ 61)
  • CGA - 16.3kHz x 62Hz (Resolution - 640x215 @ 62)
  • CGA - 16.6kHz x 63.4Hz (Resolution - 640x215 @ 63.4)
  • CGA - 16.80kHz x 64Hz (Resolution - 640x215 @ 64)
  • CGA - 15.6kHz x 50.3Hz (Resolution - 640x265 @ 50)
  • EGA - 21.8kHz x 58.9Hz (Resolution - 640x350 @58)
  • EGA - 24.4kHz x 59.5Hz (Resolution - 645x355 @59)
  • EGA - 23.5kHz x 52Hz (Resolution - 720x378 @52)
  • EGA - 26.4kHz x 57.4Hz (Resolution - 720x400 @57)
  • VGA - 31.469kHz x 70.087Hz (Resolution - 640x400 @ 70)
  • VGA - 31.469kHz x 59.940Hz (Resolution - 640x480 @ 60)
  • VGA - 37.861kHz x 72.809Hz (Resolution - 640x480 @ 72)
  • VGA - 37.500kHz x 75.000Hz (Resolution - 640x480 @ 75)
  • SVGA - 35.156kHz x 56.250Hz (Resolution - 800x600 @ 56)
  • SVGA - 37.879kHz x 60.317Hz (Resolution - 800x600 @ 60)
  • SVGA - 48.077kHz x 72.188Hz (Resolution - 800x600 @ 72)
  • SVGA - 46.875kHz x 75.000Hz (Resolution - 800x600 @ 75)

Power Supplies:

  • 110 Volt Model : 125V Power Cord
OR
  • 240 Volt Model : Power Cable 250V 10A


Video and Audio Connection Type


Connects From : Connects To :
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA (15K)
  • EGA (24K)
  • VGA 15pin D-Sub (31K+)
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA (15K)
  • EGA (24K)
  • VGA 15pin D-Sub (31K+)


Video and Audio Signal Conversion


Converts From : Converts To :
  • VGA (640 x 480 @ 4:3)
  • CGA (15k)
  • EGA (24K)
  • SVGA (800 x 600 @ 4:3)
  • RGB (15K Video)
  • CGA Compatible 15K Video Source
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA Combined Sync (15khz)
  • CGA Separate Sync (15khz)
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)


What is included with 10.4 Inch CGA EGA VGA to SVGA LCD Panel


  • 1 x 10.4 Inch CGA EGA VGA to SVGA LCD Panel
  • 1 x VGA Cable
  • 1 x 10 Pin RGB Cable
  • 2 x Mounting Brackets and screws
  • 1 x Power Adapter 110vAC - 240vAC to 12vDC 4A
  • 1 x Product Manual

10.4 Inch CGA EGA VGA to SVGA LCD Panel Images


10.4 Inch CGA EGA VGA to SVGA LCD Panel - Full View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Full View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Back View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Back View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Side View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Side View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Front View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Front View
10.4 Inch CGA EGA VGA to SVGA LCD Panel - VGA Cable
10.4 Inch CGA EGA VGA to SVGA LCD Panel - VGA Cable
10.4 Inch CGA EGA VGA to SVGA LCD Panel - 10 Pin RGB Cable
10.4 Inch CGA EGA VGA to SVGA LCD Panel - 10 Pin RGB Cable

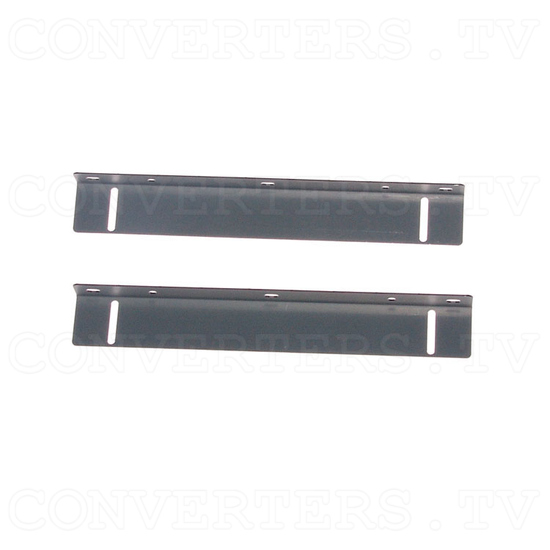

10.4 Inch CGA EGA VGA to SVGA LCD Panel - Mounting Brackets
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Mounting Brackets
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Power Adapter
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Power Adapter
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Power Supply 110v OR 240v
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Power Supply 110v OR 240v

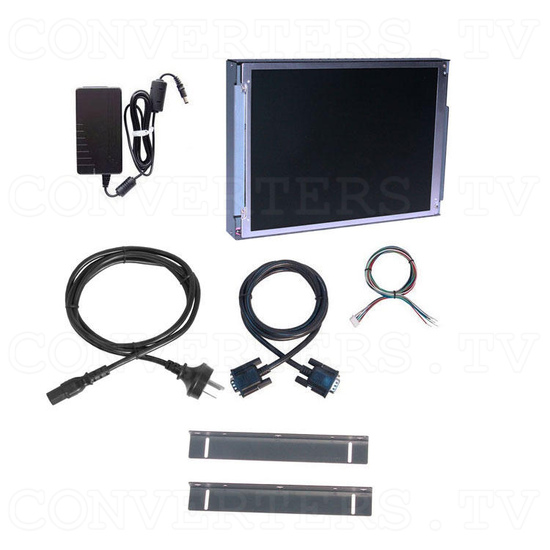

10.4 Inch CGA EGA VGA to SVGA LCD Panel - Full Kit
10.4 Inch CGA EGA VGA to SVGA LCD Panel - Full Kit
