VGA to CGA - RGB Converter

save 50%

Superseded

Convert VGA signal to Composite, S-Video and CGA-RGB through this industrial converter. Features pure hardware design with no software driver requirement, compatible with any operation system.

Can output a Composite, S-video or CGA-RGB output at the standard 15K video signal. Supports position, size and zoom function. This converter has power conservation via the VESA DPMS method, compatible with VGA monitor power saving settings.

Thanks to the true 24 bit A/D conversion process it is able to show true 16. million color conversion. Works with a VGA display of 640 x 480, 800 x 600 and 1024 x 768 resolutions.

Unit Dimensions:	12.2 x 9.0 x 1.3 cm	Shipping Weight:	0.50 kg
Location:	NSW, Australia	Item Type:	RGB Converters
Condition:	New	Warranty :	12 Months
Manual :	User Manual (171.96 KB)

VGA to CGA - RGB Converter - Product Details

Features:

Switchable NTSC, PAL, PAL M, PAL N, PAL combination- supports 640x480, 800x600, 1024x768 display mode.
Supports Composite video, S-Video or CGA-RGB output.
Supports position, size & zoom function.
System settings auto saved power down/up.
Power conservation by VESA DPMS method, compatible with VGA monitor power saving.
True 24 bit A/D converter for true 16.7 million colour conversion.
Container 3 colour wideband amplifier.
5V+ DC power working.

Specifications:

Output 1: CGA-RGB
Video: Analog RGB 2.5Vp-p / 1K ohm Hf-15.7kHz, Vf-60Hz
Sync: Sync Combine (H+V) negative/positive, TTL 3.5V - 5.0Vp-p
Output 2: Composite Video
Video: 1Vp-p (±0.2V) 75 ohms
Sync: negative
Output 3: S-Video
Video: Y: 0.7Vp-p (±0.2V) 75 ohms, C: 0.3Vp-p (±0.1V)
Sync: negative
Input: VGA / SVGA
Video: Analog RGB 0.7Vp-p 75 ohm
Sync: Sync Separate, negative/positive TTL 5.0Vp-p

Connectors:

Output 1: CGA - 6 pin in-line (R,G,B,Gnd,H+V,Gnd)
Output 2: CV - RCA Jack
Output 3: SV - 4 pin mini-din (female)
Input: 15 pin D-sub standard (female)

User Controls:

Buttons for: Zoom, Size, Position, TV system dip-switch selector block.

Environmental:

Operating Temp: 0 to 55 degrees C
Storage Temp: -20 to 70 degrees C

Physical:

Dimensions (cm's): 12.2(l) x 9.0(w) x 1.5(h)
Weight (grams): 85
Power: 5V DC (centre pin positive)
Consumption: 3.0W Max

Please Note:

AC Power supply available in 110V or 220V (please mention the type you require when ordering)
AC Power plug adapter available for most countries (please mention the type you require when ordering)

Video and Audio Connection Type

Connects From :	Connects To :
VGA 15pin D-Sub (31K+)	Composite - RCA / AV (TV) S-Video (TV) RGB Combined Sync - RGBH+V CGA (15K)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3)	PAL B NTSC M - NTSC 3.58 NTSC N - NTSC 4.43 CGA (15k) PAL D PAL N PAL G PAL H PAL I PAL M RGB Combined Sync - RGBH+V

What is included with VGA to CGA - RGB Converter

1 x VGA to CGA - RGB Converter
1 x Product Manual
1 x 6 Pin RGB Cable
1 x Open Wire Power Cord

VGA to CGA - RGB Converter Images

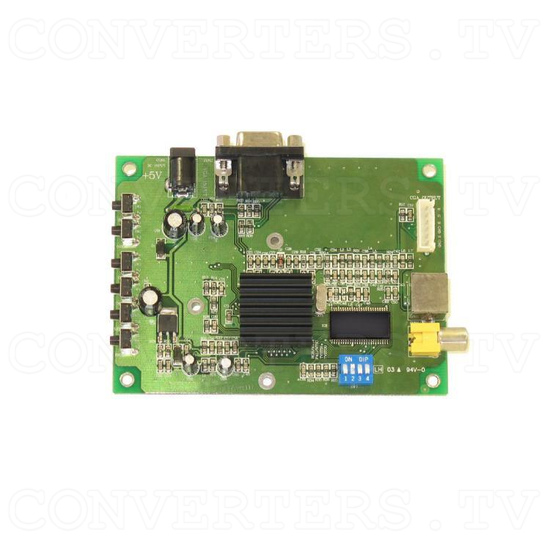

VGA to CGA - RGB Converter - Full View

VGA to CGA - RGB Converter - Front View

VGA to CGA - RGB Converter - Back View

VGA to CGA - RGB Converter - Left View

VGA to CGA - RGB Converter - Right View

VGA to CGA - RGB Converter - Top View

VGA to CGA - RGB Converter - Open Wire Power Cord

VGA to CGA - RGB Converter - Full Kit
