Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale

save 35%

Product ID :

00902

Price :

177.65 USD (Change Currency)

RRP: 274.85 USD

(less sale discount 97.20 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale is designed to maximize digital signage advertising, entertainment and interaction. Video Wall display modes include 2x2, 3x3, 3x2, 4x4, 4x3 and 5x5 LCD or PLASMA monitors at full HD HDMI 720p or 1080p. PC resolutions up to SXGA 1280*1024 are also accepted, converted and up-scaled to a digital 720p or 1080p signal for Video Wall display. Extremely versatile, easy to set up and use.

A single input, multiple output HDMI or VGA Splitter is required for use with the Digital Video Wall Control Box (with RS232 & VGA/HDMI upscale). This takes a source HDMI or VGA video signal input and splits and distributes it equally to the required number of HDMI monitor outlets (4,6,9,12,16,25).

Individual Video Wall Controller Processors control each monitor, with each Processor daisy-chained together. All Video Wall functions are controlled by a hand held remote controller or RS232 commands. Image display adjustments can be made for individual, or all monitors together: Video Wall display mode, horizontal and vertical position, zoom in and out. A 'blanking' feature allows a total of the horizontal and vertical size of a Video Wall to be blanked out.

The Digital Video Wall Control Box (with RS232 & VGA/HDMI upscale) has 6 modes of operation, from a 2 horizontal by 2 vertical monitors Video Wall (4 monitors) to a 5 horizontal by 5 vertical monitors Video Wall (25 monitors). Where Video Wall modes 3x2 and 4x3 are used, the larger number of monitors is in the horizontal plane.

Unit Dimensions:	20.0 x 15.5 x 4.5 cm	Shipping Weight:	1.50 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (352.3 KB)

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Product Details

Features:

Supports TV / Video / Movie / Gaming / Advertising Wall applications
Supports 6 Video Wall Modes: 2x2(4); 3x2(6); 3x3(9); 4x3(12; 4x4(16), 5x5(25) HxV(monitors)
Supports HDMI and PC VGA (both with Audio) input sources
HDMI input resolution: 480p, 576p, 720p, 1080i, 1080p
PC VGA input resolution: VGA (640*480) ~ SXGA (1280*1024) + WXGA (1366*768@60 only)
HDMI output resolution: 720p or 1080p
Supports RS232 Control Interface with PC. (Special adaptor board required)
Video Wall IR control by hand held Remote Control

Specifications:

Input Ports: 1 x HDMI; 1 x PC VGA; 1 x RS232(female); 1 x L/R Audio(3.5mm phone jack); 1 x IR
Output Ports: 1 x HDMI; 1 x RS232(male); 1 x L/R(RCA jack)
IR Frequency: 38Mhz
IR Cable Length: 3 meters
HDMI Input Resolutions: 480p/480i; 576p/576i; 720p; 1080p/1080i
VGA Input Resolutions: VGA(640*480); SVGA(800*600); XGA(1024*768); SXGA(1280*1024)
HDMI Output Resolution: 720p or 1080p
Audio Format: Unbalanced LPCM 2 Channel
Power: 5vDC 3A (US/EU standards, CE/FCC/UL certified)
Power consumption (watts): 13.5w
Dimensions (cm): 20.0(w) x 15.5(d) x 4.5(h)
Weight (grams): 815g
Chassis Material: Aluminum
Silkscreen Colour: Black
Operating Temp: 0c ~ 40c / 32f ~ 104f
Storage Temp: -20c ~ 60c / -4f ~ 140f
Relative Humidity: 20 ~ 90% RH (Non-condensing)
ESD Protection: Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge)

Accepted PC VGA Resolutions:

640*480@60/72/75Hz (VGA)
800*600@56/60/72/75Hz (SVGA)
1024*768@60/70/75Hz (XGA)
1280*1024@60/75Hz (SXGA)
1366*768@60Hz (WXGA)

Accepted HD HDMI/DVI Resolutions:

720*480p@59/60Hz
1280*720p@59/60Hz
1920*1080i@59/60Hz
1920*1080p@59/60Hz
720*576p@50Hz
1280*720p@50Hz
1920*1080i@50Hz
1920*1080p@50Hz

Special Requirements:

HDMI or VGA Splitter to feed 4 ~ 25 x HDMI input monitors
RS232 PC Level Shift Interface Board (In order to interface TTL logic that is either 3.3v or 5v based to RS232)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i	HDTV 720p HDTV 1080p

What is included with Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale

1 x Digital Video Wall Control Box (with RS232 & VGA/HDMI upscale)
1 x RS232 Interconnect Cable
1 x Product Manual
1 x Remote
1 x Infrared sensor
1 x Switch mode Power Supply 100-240v 50-60Hz 0.3A, DC 5V - 1.2A

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale Images

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Full View

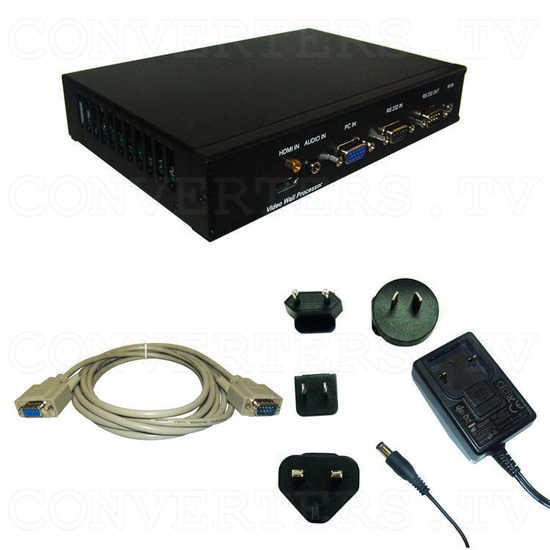

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Front View

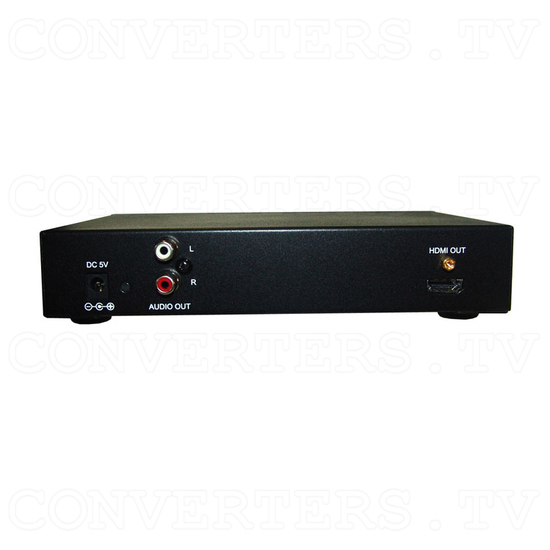

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Back View

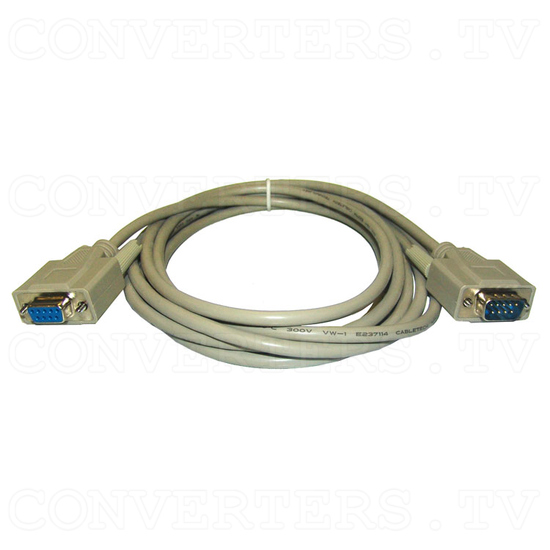

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - RS232 Interconnect Cable

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Remote

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Infrared sensor

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Power Supply 110v OR 240v

Video Wall Controller Processor for Video Walls - with RS232 and VGA/HDMI Upscale - Full Kit
