DVI to DVI Scaler Converter

save 38%

Superseded

The DVI to DVI Scaler Converter is ideal for scaling DVI source signals to other higher, or, lower DVI resolution signals. Full support for input DVI signal timings include VGA ~ WSXGA, WUXGA, WXGA, WXGA+, SXGA+; and selectable output timings include High Def 720p, or, 1080p, PC WXGA, and WUXGA. Ideal for connecting older DVI video devices to later model DVI TV's and vice versa. Audio is connected direct from video/audio source to sound system amp. DVI input/output compatible with HDMI interface using a HDMI to DVI cable, or converter.

Unit Dimensions:	11.0 x 6.5 x 2.0 cm	Shipping Weight:	0.43 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL

DVI to DVI Scaler Converter - Product Details

Features:

Compact and lightweight design
Black plastic cover with clear designations for input, output, power and OSD Timing selection
DVI Output supports HDMI 1.2, HDCP 1.1 and DVI 1.0
Support RGB 4:4:4/YUV 4:4:4@8/10/12Bit and YUV 4:2:2@8Bit Colour
Support HDCP
Selectable Fast Switch Hot Key for Output
Selectable DVI Output resolutions: 720p / 1080p / WXGA 1280*800 / WXGA 1366*768 / WUXGA 1920*1200 (RB)
DVI Input resolution auto-detected
DVI Input supports HDMI 1.3 @ 8/10/12 Bit Deep Colour Mode
Support DVI Input resolutions: VGA-WSXGA, WUXGA (Reduced Blanking), WXGA 1366*768, WXGA+ 1440*900, SXGA+ 1400*1050, 480p/720p/1080p@60Hz.
Interlaced video to Progressive video conversion with various display supplements
Supports HDMI input/output using HDMI to DVI cable or converter
Low power consumption

Specifications:

Input Port: 1 x DVI-I (Dual Link)
Output Port: 1 x DVI-I (Dual Link)
Support RGB 4:4:4/YUV 4:4:4@8/10/12Bit and YUV 4:2:2@8Bit Colour
Support HDCP
Support HD Input resolutions: VGA-WSXGA, WUXGA (Reduced Blanking), WXGA 1366*768, WXGA+ 1440*900, SXGA+ 1400*1050, 480p/720p/1080p@60Hz.
Selectable HD output resolutions: 720p / 1080p / WXGA 1280*800 / WXGA 1366*768 / WUXGA 1920*1200 (RB)
TMDS Clock Frequency Bandwidth: 225MHz
Power Supply: 100-240vAC to +5vDC 1A (US/EU standards, CE/FCC/UL certified)
Power Consumption: 2.7w
Dimensions: 11.0(l) x 6.5(d) x 2.0(h)
Weight: 90 gm
Operating Temp: 0c ~ 40c / 32f ~ 104f
Storage Temp: -20c ~ 60c / -4f ~ 140f
Humidity: 20-90% RH (non-condensing)

Supported DVI/HDMI PC & HD Output Timings:

1280*800@60Hz
1366*768@60Hz
1920*1200@60Hz
1280*720p@59/60Hz
1920*1080p@59/60Hz

Supported DVI/HDMI PC & HD Input Timings:

640*480@60Hz
800*600@60Hz
1024*768@60Hz
1280*960@60Hz
1280*1024@60Hz
1366*768@60Hz
1600@1200@60Hz
1920*1200@60Hz
720*480i@59/60Hz
720*480p@59/60Hz
720*576i@50Hz
720*576p@50Hz
1280*720p@50/59/60Hz
1920*1080i@50/59/60Hz
1920*1080p@50/59/60Hz

Video and Audio Connection Type

Connects From :	Connects To :
DVI - I (HDTV)	DVI - I (HDTV)

Video and Audio Signal Conversion

Converts From :	Converts To :
VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WXGA HD (1280 x 720 @ 16:9) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i WUXGA (1920 X 1200 @ 16:10) SXGA+ (1400 X 1050 @ 4:3) SXGA- (1280 X 960 @ 4:3)	HDTV 720p HDTV 1080p WXGA (1280 x 800 @ 16:10) WXGA (1360 X 768 @ 16:9) WUXGA (1920 X 1200 @ 16:10)

What is included with DVI to DVI Scaler Converter

1 x DVI to DVI Format Converter
1 x 100-240V 0.2A 50/60Hz to 5V DC 1000mA 6W Max Power Supply (Center Positive)

DVI to DVI Scaler Converter Images

DVI to DVI Scaler Converter - Full View

DVI to DVI Scaler Converter - Top View

DVI to DVI Scaler Converter - Left View

DVI to DVI Scaler Converter - Right View

DVI to DVI Scaler Converter - Power Supply 110v OR 240v

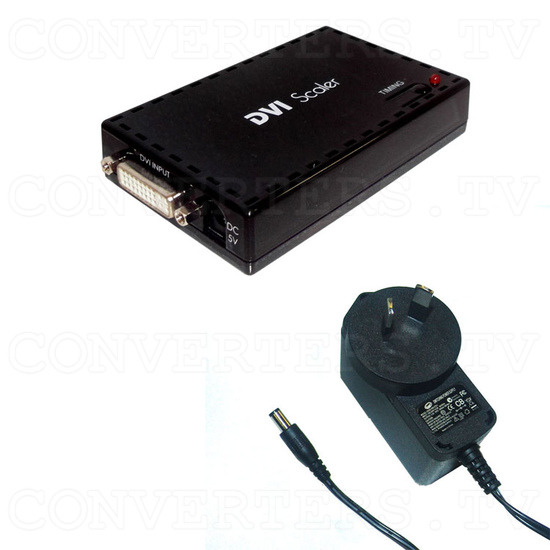

DVI to DVI Scaler Converter - Full Kit
