The 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is a 2012 model TFT-LCD monitor from our range of LCD based Industrial style RGB to VGA converters. Specifically designed for the retrofit of older style CRT monitors commonly found in CNC machinery and Arcade Game cabinets, the simple open frame panel construction with a detachable controller ensures easy installation and connection. Inbuilt automatic detection of the source signal allows for quick and easy connection while a comprehensive OSD menu allows for total control of image size, position and overall appearance.
The 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is rated for upscale to SXGA resolution and accepts various CGA, EGA and VGA display timings. Video signal input to the panel is via a 15 pin D-sub connector. A special RGB adaptor is supplied for connection of CGA and EGA RGB combined and separate sync circuitry. The RGB adaptor also allows control over colour intensity and impedance matching.
With the addition of a Resistive Touch-screen panel, the 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel becomes a very powerful tool when used in Industrial, Commercial or Educational applications. The touch screen can be operated by finger or stylus contact and gives easy, accurate control over displayed screen functions. The 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel display has a full 16.7M colour range with 5:4 aspect ratio and a wide viewing angle.
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel
The 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is a 2012 model TFT-LCD monitor from our range of LCD based Industrial style RGB to VGA converters. Specifically designed for the retrofit of older style CRT monitors commonly found in CNC machinery and Arcade Game cabinets, the simple open frame panel construction with a detachable controller ensures easy installation and connection. Inbuilt automatic detection of the source signal allows for quick and easy connection while a comprehensive OSD menu allows for total control of image size, position and overall appearance.
The 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel is rated for upscale to SXGA resolution and accepts various CGA, EGA and VGA display timings. Video signal input to the panel is via a 15 pin D-sub connector. A special RGB adaptor is supplied for connection of CGA and EGA RGB combined and separate sync circuitry. The RGB adaptor also allows control over colour intensity and impedance matching.
With the addition of a Resistive Touch-screen panel, the 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel becomes a very powerful tool when used in Industrial, Commercial or Educational applications. The touch screen can be operated by finger or stylus contact and gives easy, accurate control over displayed screen functions. The 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel display has a full 16.7M colour range with 5:4 aspect ratio and a wide viewing angle.
Unit Dimensions:
36.1 x 4.4 x 30.0 cm
Shipping Weight:
4.20 kg
Location:
NSW, Australia
Item Type:
RGB Open Frame LCD Monitors
Condition:
New
Warranty :
12 Months
Certificates :
CE, CTick, UL
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Product Details
Features:
Easy to instal Open Frame construction
Simple to connect and operate
Lightweight and sturdy full metal construction
Detachable Control bar
Plug'n'Play functionality with DDC (Display Data Channel) support for EDID (Extended Display Identification Data)
Input Mode: CGA, EGA, VGA
Input Syncs: Combined (HV); Separate (H+V) and SoG (Sync on Green)
Input Connection: VGA 15pin D-sub or RGB Adaptor PCB
Auto input signal detect and adjustment
Full OSD interface for image display quality
In-built Power Saver function ('sleeps' when idle, 'awake' when operated)
Screen Treatment: Anti-Glare; Hard Coating (3H)
Specifications:
Screen Size(diag): 17 Inch TFT
Screen Size(cm): 33.7 (w) x 27.3 (h)
Panel Size(cm): 36.1 (w) x 30.0 (h) x 4.4 (d)
Pixel Pitch(mm): 0.297 (w) x 0.297 (h)
Blacklight: 2 x CCFL
Cell Type: TN
Scan Frequency (H): 15 ~ 85kHz
Scan Frequency (V): 48 ~ 75Hz
Colours: 16.7M (6 bits + FRC)
Colour Config: R.G.B. Stripe
Aspect Ratio: 5:4
Contrast Ratio: 700:1(min) 1000:1(typ)
Max Resolution: SXGA (1280*1024)
Viewing angle:
Bandwidth: 130MHz Dot Clock
Brightness: 250cd/m2
Weight: 3.67kg
Power: 100-240vAC to 12vDC 5A (centre positive)
Power Consumption(watts): 14.45W
Operating Temperature: 0C ~ 60C
Storage Temperature: -20C ~ 60C
Humidity: 5 ~ 95%
ROHS Compliant
CGA + EGA + VGA + SVGA Input Specifications:
CGA - 15.4kHz x 58.8Hz (Resolution - 640x198 @ 58)
CGA - 15.1kHz x 57.6Hz (Resolution - 640x215 @ 57)
CGA - 15.7kHz x 60Hz (Resolution - 640x215 @ 60)
CGA - 16.0kHz x 61Hz (Resolution - 640x215 @ 61)
CGA - 16.3kHz x 62Hz (Resolution - 640x215 @ 62)
CGA - 16.6kHz x 63.4Hz (Resolution - 640x215 @ 63.4)
CGA - 16.80kHz x 64Hz (Resolution - 640x215 @ 64)
CGA - 15.6kHz x 50.3Hz (Resolution - 640x265 @ 50)
EGA - 21.8kHz x 58.9Hz (Resolution - 640x350 @58)
EGA - 24.4kHz x 59.5Hz (Resolution - 645x355 @59)
EGA - 23.5kHz x 52Hz (Resolution - 720x378 @52)
EGA - 26.4kHz x 57.4Hz (Resolution - 720x400 @57)
VGA - 31.469kHz x 70.087Hz (Resolution - 640x400 @ 70)
VGA - 31.469kHz x 59.940Hz (Resolution - 640x480 @ 60)
VGA - 37.861kHz x 72.809Hz (Resolution - 640x480 @ 72)
VGA - 37.500kHz x 75.000Hz (Resolution - 640x480 @ 75)
SVGA - 35.156kHz x 56.250Hz (Resolution - 800x600 @ 56)
SVGA - 37.879kHz x 60.317Hz (Resolution - 800x600 @ 60)
SVGA - 48.077kHz x 72.188Hz (Resolution - 800x600 @ 72)
SVGA - 46.875kHz x 75.000Hz (Resolution - 800x600 @ 75)
Other Supported Resolutions:
640*350@70Hz
640*480@59/60/66/72/75Hz
800*600@35/37/46/48/56/60/72/75Hz
1024*768@60/70/75Hz
1280*960@60Hz
1280*1024@60/75Hz
1366@768@50/60Hz
Video and Audio Connection Type
Connects From :
Connects To :
USB (PC) Type A Device Ports
VGA 15pin D-Sub (15k/24k/31kHz)
Video and Audio Signal Conversion
Converts From :
Converts To :
VGA (640 x 480 @ 4:3)
CGA (15k)
SVGA (800 x 600 @ 4:3)
XGA (1024 x 768 @ 4:3)
SXGA (1280 x 1024 @ 5:4)
RGB (15K Video)
RGB Sync on Green RGsB
CGA Compatible 15K Video Source
RGB Combined Sync - RGBH+V
RGB Separate Sync - RGBHV
RGB 31K
CGA Combined Sync (15khz)
CGA Separate Sync (15khz)
CGA Sync on Green (15khz)
WUXGA (1920 X 1200 @ 16:10)
SXGA (1280 x 960 @ 4:3)
What is included with 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel
1 x 17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel
1 x 100-240vAC to +12vDC 5A PSU
1 x User Manual
1 x RGB PCB Interface Board
1 x 5 Pin RGB Cable
1 x 6 Pin to 6 Pin Header Plug Wire Cable
1 x 15 Pin D-sub VGA Cable
1 x VGA Cable
1 x 6 Pin Header Plug
1 x 250V Power Cord
1 x RGB PCB Interface Board
1 x USB Cable (Male to Male)
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel Images
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Full View
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Front View

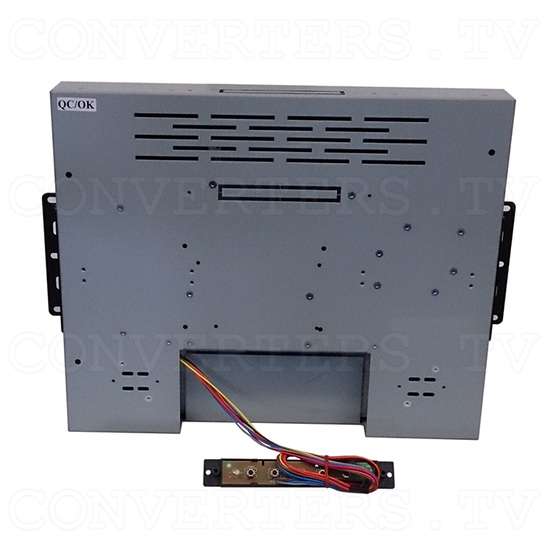

17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Back View
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Rear Connections
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Menu Board
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - RGB PCB Interface Board
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - VGA Cable

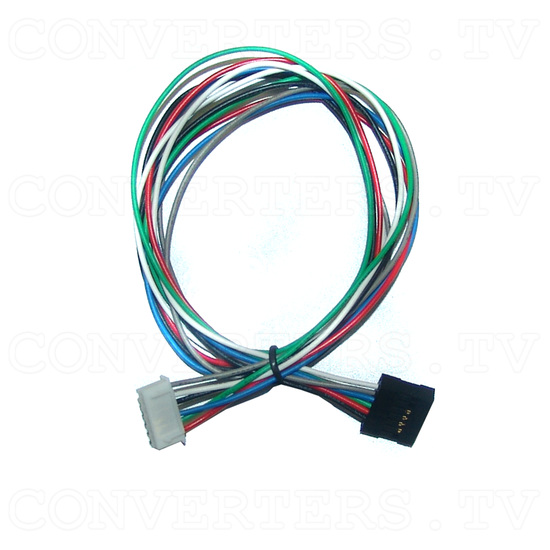

17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - 6 Pin Header Plug
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - USB Cable (Male to Male)
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - 250V Power Cord
17 Inch Delta Resistive Touch Multi-Frequency to SXGA LCD Panel - Power Supply 110v OR 240v
