ProTV IV DVI TV (NTSC Version) is a high resolution TV tuner converter which can display Free to Air TV or Cable TV. It is also capable of converting video signals from VCR's, LD/DVD/VCD Players, V8, DV, Game Consoles and Set Top Boxes to output onto PC monitors.
The ProTV IV DVI TV (NTSC Version) is very easy to use and is simply a plug and play device with no extra software or hardware required. This unit comes with S-Video, C-Video, Component and Audio inputs to allow usage with a wide range of different video sources.
ProTV IV DVI TV (NTSC Version) is a high resolution TV tuner converter which can display Free to Air TV or Cable TV. It is also capable of converting video signals from VCR's, LD/DVD/VCD Players, V8, DV, Game Consoles and Set Top Boxes to output onto PC monitors.
The ProTV IV DVI TV (NTSC Version) is very easy to use and is simply a plug and play device with no extra software or hardware required. This unit comes with S-Video, C-Video, Component and Audio inputs to allow usage with a wide range of different video sources.
Unit Dimensions:
5.2 x 24.0 x 15.3 cm
Shipping Weight:
2.00 kg
Location:
NSW, Australia
Item Type:
NTSC Converters
Condition:
New
Warranty :
12 Months
Certificates :
CE
ProTV IV DVI TV Converter (NTSC) - Product Details
Features:
Enhanced image processing technology so it is possible to enhance video quality from TV, C-Video, S-Video to PC monitor output
Supports NTSC
Double Scan Conversion
Compatible with any VGA monitor (CRT or LCD monitors also with DVI terminals)
Full Screen, true colour of video display
Bundled TV Tuner which makes it possible to play Free to Air TV and Cable TV programs on PC monitors
Easy operation with menu buttons
Auto Channel Memorising to set up channels automatically
On Screen Display (OSD) with IR remote controller
Picture On Picture (POP) function allows viewing of various video sources on resizeable and moveable windows on the PC monitor screen
Specifications:
Supports high resolution 1024x768 on LCD and CRT monitors
Supports NTSC System
Output horizontal frequency 31.5kHz and vertical frequency 75Hz
Full channel with MTS/NICAM capability and can be accessed via remote control
Input impedance of antenna: 75 ohms
OSD Controls: Brightness, Contrast, Hue, Colour and Sharpness
Video Output: TV
Audio Output: TV Stereo, MTS(NTSC)/NICAM(PAL)
Channel auto scan and memory
Audio Input: Max 2.5Vp-p
Audio Output: Max 0.25W x 2
Video Input: 1Vp-p 75 ohm
Video Output: 24Bit RGB, 0.7± 10%
RF Input: 75 ohm Coaxial Cable
VGA RGB Input: 0.7Vp-p
Monitor RGB Output: 0.7Vp-p
Power Supply: 120VAC to 12V DC 1200mA Center positive
Power Supplies:
Multi-Voltage Power Supply : 120V to 12V DC 800mA Power Supply - Center Positive
Video and Audio Connection Type
Connects From :
Connects To :
Composite - RCA / AV (TV)
Component - RGB & YCrCb/YPrPb (TV)
DVI - I (HDTV)
VGA 15pin D-Sub (31K+)
RF - F Connector (TV)
Composite - RCA / AV (TV)
VGA 15pin D-Sub (31K+)
Video and Audio Signal Conversion
Converts From :
Converts To :
NTSC M - NTSC 3.58
NTSC N - NTSC 4.43
VGA (640 x 480 @ 4:3)
SVGA (800 x 600 @ 4:3)
XGA (1024 x 768 @ 4:3)
What is included with ProTV IV DVI TV Converter (NTSC)
1 x ProTV IV DVI TV Converter (NTSC)
1 x VGA Cable (Male to Male)
1 x Line Jack Cable
1 x Remote
1 x Converter Stand
1 x 120VAC to 12V DC 1200mA Power Supply (Center Positive)
Additional Features
NTSC TV Tuner
Remote Control
PC Bypass
ProTV IV DVI TV Converter (NTSC) Images

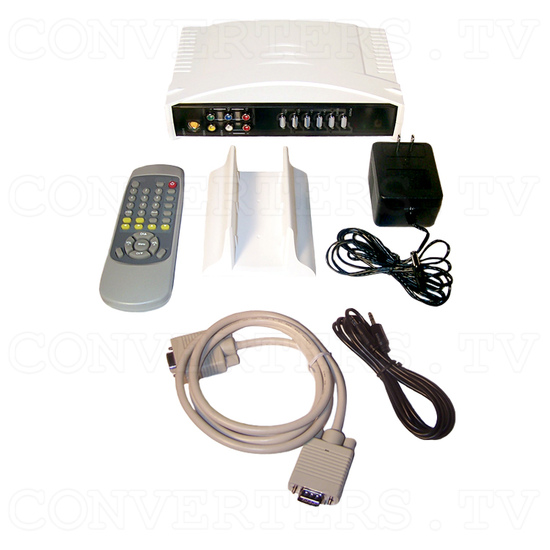

ProTV IV DVI TV Converter (NTSC) - Full View

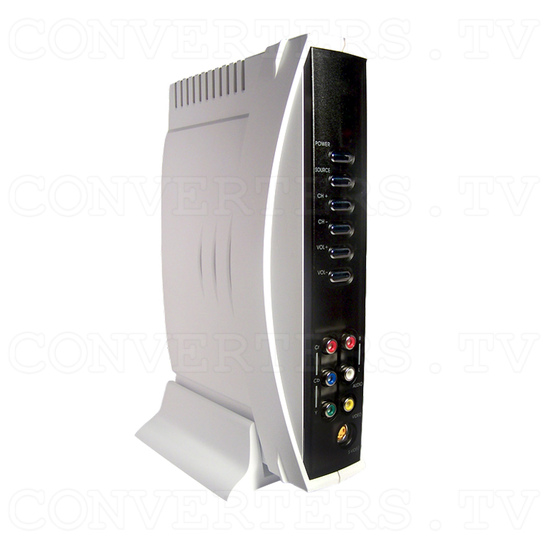

ProTV IV DVI TV Converter (NTSC) - Front View

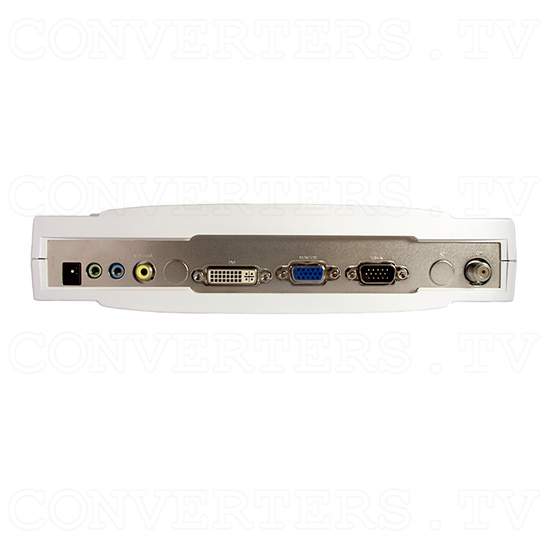

ProTV IV DVI TV Converter (NTSC) - Back View
ProTV IV DVI TV Converter (NTSC) - Side View
ProTV IV DVI TV Converter (NTSC) - Stand

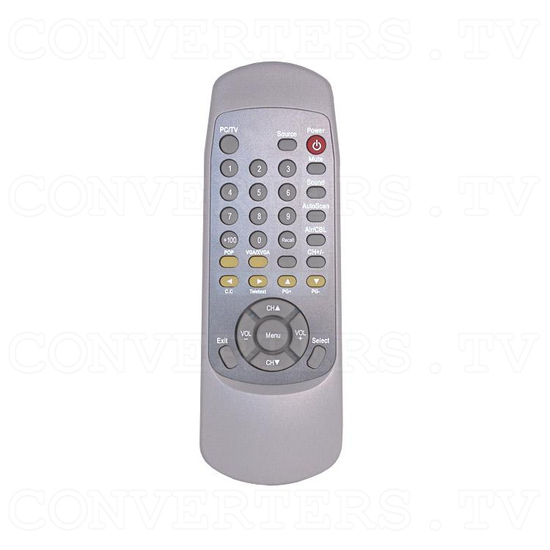

ProTV IV DVI TV Converter (NTSC) - Remote
ProTV IV DVI TV Converter (NTSC) - VGA Cable

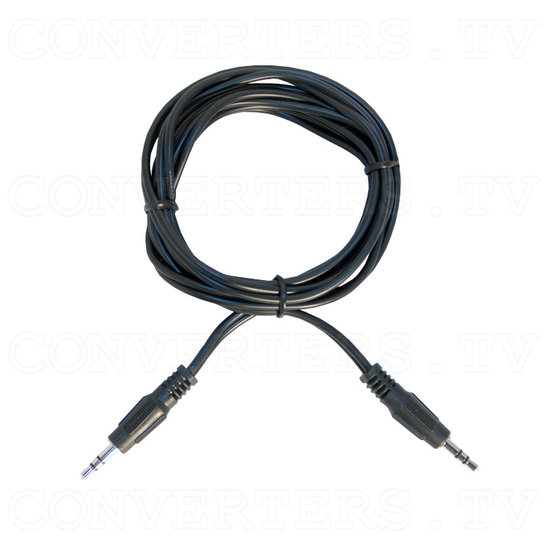

ProTV IV DVI TV Converter (NTSC) - Line Jack Cable
ProTV IV DVI TV Converter (NTSC) - Stereo AV to LineJack
