The HDMI v1.3 1 In 4 Out Multi-Channel Splitter is a high performance device which allows a single HDMI source to be duplicated four times and the new outputs connected to HDTV's, for multi-viewing purposes. Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
For example, you could connect your Blu-Ray player to the splitter via the HDMI input, and then output the signal via HDMI cable to four separate displays, simultaneously. The HDMI v1.3 1 In 4 Out Multi-Channel Splitters buffering capabilities ensures no loss in quality on any of the outputs.
The HDMI cable distance test with 1080p/8bits resolution, the Input/Output can run up to 15/15 meters, and at 1080p/12bits the Input/Output can run up to 10/15 meters.
The HDMI v1.3 1 In 4 Out Multi-Channel Splitter can also be used with DVI devices. Simply connect your DVI source or display by using a HDMI/DVI adaptor.
The HDMI v1.3 1 In 4 Out Multi-Channel Splitter is a high performance device which allows a single HDMI source to be duplicated four times and the new outputs connected to HDTV's, for multi-viewing purposes. Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
For example, you could connect your Blu-Ray player to the splitter via the HDMI input, and then output the signal via HDMI cable to four separate displays, simultaneously. The HDMI v1.3 1 In 4 Out Multi-Channel Splitters buffering capabilities ensures no loss in quality on any of the outputs.
The HDMI cable distance test with 1080p/8bits resolution, the Input/Output can run up to 15/15 meters, and at 1080p/12bits the Input/Output can run up to 10/15 meters.
The HDMI v1.3 1 In 4 Out Multi-Channel Splitter can also be used with DVI devices. Simply connect your DVI source or display by using a HDMI/DVI adaptor.
HDMI v1.3 1 In 4 Out with Multi-Channel Splitter - Product Details
Features:
HDMI 1.3, HDCP1.1 and DVI1.0 compliant
Deep color video up to 12bit, 1080p@(24/60)Hz
One HDMI source that can connect up to four HDMI displays simultaneously
HDCP keysets allows each output to work independently when connecting to a HDMI display
Splits a HDMI source up to four outputs without signal loss
Supports DVI source and DVI display by using HDMI to/from DVI adapter cable
Dolby Digital Plus, DTS digital audio transmission (32-192 kHz Fs sample rate)
Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
HDMI cable distance test with 1080p/8bits resolution the, Input/Output can run up to 15/15 meters. If 1080p/12bits the Input/Output can run up to 10/15 meters
Selects EDID from TV mode or STD mode (this splitter)
Supports CEC bypass
Supports System Reset function
Specifications:
Input Ports: 1 x HDMI
Output Ports: 4 x HDMI
Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm): 206(W) x 111(D) x 32(H)
Weight(g): 248
Chassis Material: Plastic
Colour: Black
Operating Temperature: 0°C ~ 40°C
Power Supplies:
Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive
Video and Audio Connection Type
Connects From :
Connects To :
HDMI (HDTV)
HDMI (HDTV)
Video and Audio Signal Conversion
Converts From :
Converts To :
HDTV 480p
HDTV 576p
HDTV 720p
HDTV 1080p
HDTV 1080i
HDTV 480i
HDTV 576i
VGA (640 x 480 @ 4:3)
SVGA (800 x 600 @ 4:3)
XGA (1024 x 768 @ 4:3)
SXGA (1280 x 1024 @ 5:4)
UXGA (1600 x 1200 @ 4:3)
HDTV 480p
HDTV 576p
HDTV 720p
HDTV 1080p
HDTV 1080i
HDTV 480i
HDTV 576i
What is included with HDMI v1.3 1 In 4 Out with Multi-Channel Splitter
1 x 1 by 4 HDMI 1.3 with Multi-Channel Splitter
1 x Product Manual
1 x Product Manual
1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)
HDMI v1.3 1 In 4 Out with Multi-Channel Splitter Images
HDMI v1.3 1 In 4 Out with Multi-Channel Splitter - Full View

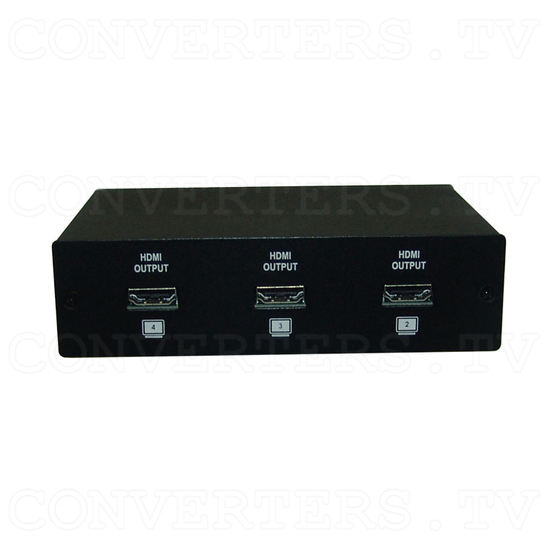

HDMI v1.3 1 In 4 Out with Multi-Channel Splitter - Front View
HDMI v1.3 1 In 4 Out with Multi-Channel Splitter - Back View
HDMI v1.3 1 In 4 Out with Multi-Channel Splitter - Power Supply 110v OR 240v

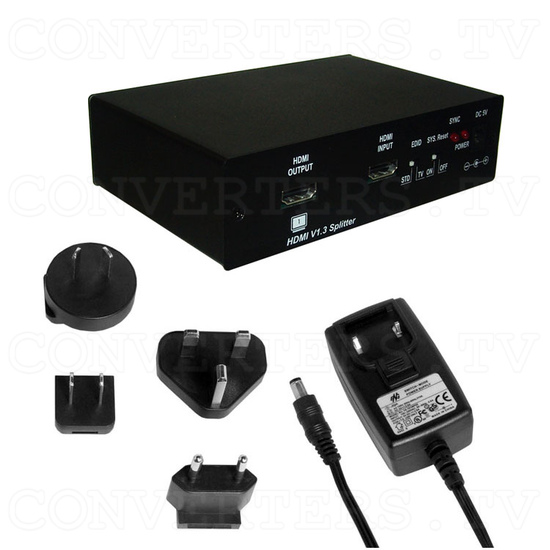

HDMI v1.3 1 In 4 Out with Multi-Channel Splitter - Full Kit
