HDMI to PC/Component Converter with Audio Box

save 7%

Product ID :

00900

Price :

125.60 USD (Change Currency)

RRP: 135.25 USD

(less sale discount 9.65 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The HDMI to PC/Component Converter with Audio Box is designed to convert HDMI and DVI HD signals to Analog PC or Component SD/HD timings. It enables to convert HDMI sources to any analog PC timing for PC monitor, or Component YPbPr timing for Projector or TV. Simple switch operation selects the desired output mode of PC VGA or Component SD/HD to match the input signal format of HDMI PC or HD. The high bandwidth capability of the HDMI to PC/Component Converter with Audio Box supports a wide range of PC and HDTV resolutions and works with DVI source signals.

Applications for Use:

Showroom environment
Advertising, Commercial and Industrial sites
Education Lectures and Demonstrations
Private Home Theatre

Unit Dimensions:	10.0 x 7.6 x 3.0 cm	Shipping Weight:	0.46 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (574.94 KB)

HDMI to PC/Component Converter with Audio Box - Product Details

Features:

HDMI v1.2 and DVI v1.0 compliant
Supports HDMI input with selectable Analog PC VGA (RGBHV) or Component SD/HD (YPbPr) output
Supports output selection between Component YPbPr and PC VGA RGBHV
Output resolution equivalent to Input resolution
Supports input/output resolution as below:
PC: 640x480 = VGA@60, 72, 75, 85, 800x600 = SVGA@56, 60, 72, 75, 85, 1024x768 = XGA@60, 70, 75, 85, 1152x864 = MAC@70, 75, 85, 1280x768 = WXGA@60RB, 60, 1280x800 = WXGA@60RB, 60, 75, 1280x960 = @60, 85, 1280x1024 = SXGA@60, 75, 85, 1366x768 = WXGA@60RB, 60, 1440x1050 = @60RB, 60, 1440x900 = WXGA@60RB, 60, 75, 1600x1200 = UXGA@60, 1680x1050 = WSXGA+@60RB, 60, 1920x1200 = WUXGA@60RB
HD: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50, 720p@60, 1080i@50, 1080i@60, 1080p@24, 1080p@50, 1080p@60
HDMI input support 8-bits without Deep Color support
DVI input compatible with DVI format when using HDMI to DVI adapter
HDMI audio input support LPCM 2CH and sampling rate support from 32KHz to 192KHz
Component output support tri-level sync and output support 720p, 1080i and 1080p
Audio output support stereo R/L
Built in EDID
Note: This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video & audio output.

Specifications:

Operation Frequency: Up to 162MHz
Video Input Port: 1 x HDMI Male Type A; 8 bit colour (No Deep Colour support)
Input Colour Space: RGB & YUV
Video Output Port: 1 x HD15 Pin D-sub for RGBHV and YPbPr (Note: Component output support 720p, 1080i and 1080p tri-level sync)
Video Output Signal: RGBHV - RGB = 0.7v p-p 75 ohm; HV = 3-5v p-p; YPbPr: Y = 1v p-p 75 ohm; PbPr = 0.7v p-p 75 ohm
Audio Output Port: 1 x Analog R/L 3.5mm Audio Jack
Audio output Format: LPCM 2CH sampling rate 32kHz ~ 96kHz
Power Supply: 100-240vAC to 5vDC 1A (+ve centre) (US/EU standards; CE/FCC/UL certified)
Power Consumption (watts): 3.3w
Dimensions (cm): 9.2(L) x 7.6(W) x 3.0(H)
Weight (grams): 172g
ESD Protection: ±8kv (air-gap discharge); ±4kv (contact discharge)
Operating Temp: 0C ~ 40C / 32F ~ 104F
Storage Temp: -20C ~ 60C / -4F ~ -140F
Relative Humidity: 20-90% RH (no condensation)

Support HDMI/DVI PC Res:

640*480@60/72/75Hz
800*600@56/60/72/75Hz
1024*768@60/70/75Hz
1280*960@60Hz
1280*1024@60/75Hz
1366*768@60Hz
1600*1200@60Hz
1920*1200@60Hz

Support HDMI/DVI HD Res:

720*480i@59/60Hz (Not DVI)
720*480p@59/60Hz
720*576i@50Hz (Not DVI)
720*576p@50Hz
1280*720p@59/60Hz
1920*1080i@50/59/60Hz (Not DVI)
1920*1080p@50/59/60Hz

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i	VGA (640 x 480 @ 4:3) SVGA (800 x 600 @ 4:3) XGA (1024 x 768 @ 4:3) SXGA (1280 x 1024 @ 5:4) UXGA (1600 x 1200 @ 4:3) WXGA HD (1280 x 720 @ 16:9) WSXGA (1680x1050 @ 16:10) HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i WUXGA (1920 x 1080 @ 16:10) HDTV 480i HDTV 576i

What is included with HDMI to PC/Component Converter with Audio Box

1 x HDMI to PC/Component Converter with Audio Box
1 x Product Manual
1 x VGA to 3 RCA Cable
1 x 100-240V 0.2A 50/60Hz to 5V DC 1000mA 6W Max Power Supply (Center Positive)

HDMI to PC/Component Converter with Audio Box Images

HDMI to PC/Component Converter with Audio Box - Full View

HDMI to PC/Component Converter with Audio Box - Front View

HDMI to PC/Component Converter with Audio Box - Back View

HDMI to PC/Component Converter with Audio Box - VGA to 3 RCA

HDMI to PC/Component Converter with Audio Box - Power Supply 110v OR 240v

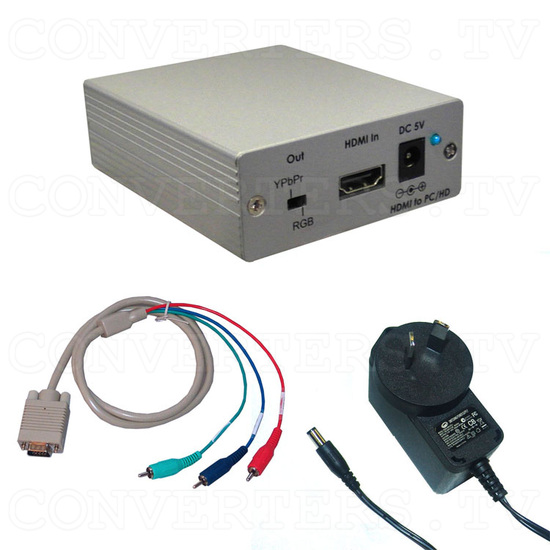

HDMI to PC/Component Converter with Audio Box - Full Kit
