The HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver is designed to receive a HDBaseT signal, via a single CAT5e/6/7 cable, from a compatable transmitter or matrix unit. It allows for transmission of HD, UHD & 3D video and audio signals, Control IR and RS-232, PoE (Power over Ethernet) and full LAN serving, all to a distance up to 100m. The HDMI dual outputs allow for connecting a monitor for local service, plus extension to another ID#15317 for further signal extension across CAT5e/6/7 cable. Full support given by the HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver for video timings of PC VGA ~ WUXGA, HD 480i/p ~ 1080i/p, all 3D formats and UHD 4k2k 3840*2160@30Hz and 4096*2160@24Hz. Supports pass-thru of high definition audio formats LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio with sampling rate of 32kHz ~ 192kHz. Compatible Transmitters: - ID#783: http://www.converters.tv/products/hdtv_to_hdtv/783.html - ID#872: http://www.converters.tv/products/hdtv_to_hdtv/872.html - ID#922: http://www.converters.tv/products/vga_to_hdtv/922.html - ID#991: http://www.converters.tv/products/hdtv_to_hdtv/991.html
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver

HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver

  save 29%

Made In Taiwan

Product ID : 15317
Price : 210.35 USD (Change Currency)

RRP: 295.25 USD (less sale discount 84.90 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


The HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver is designed to receive a HDBaseT signal, via a single CAT5e/6/7 cable, from a compatable transmitter or matrix unit. It allows for transmission of HD, UHD & 3D video and audio signals, Control IR and RS-232, PoE (Power over Ethernet) and full LAN serving, all to a distance up to 100m. The HDMI dual outputs allow for connecting a monitor for local service, plus extension to another ID#15317 for further signal extension across CAT5e/6/7 cable.

Full support given by the HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver for video timings of PC VGA ~ WUXGA, HD 480i/p ~ 1080i/p, all 3D formats and UHD 4k2k 3840*2160@30Hz and 4096*2160@24Hz. Supports pass-thru of high definition audio formats LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio with sampling rate of 32kHz ~ 192kHz.

Compatible Transmitters:

  • ID#783: http://www.converters.tv/products/hdtv_to_hdtv/783.html
  • ID#872: http://www.converters.tv/products/hdtv_to_hdtv/872.html
  • ID#922: http://www.converters.tv/products/vga_to_hdtv/922.html
  • ID#991: http://www.converters.tv/products/hdtv_to_hdtv/991.html


Unit Dimensions: 10.0 x 11.2 x 4.0 cm Shipping Weight: 0.66 kg
Location: NSW, Australia Item Type: CAT5/6 Cable Products
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (295.56 KB)


HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Product Details


Features:

  • HDMI (3D formats and UHD 4k2k), HDCP and DVI compliant
  • Dual HDMI outputs
  • Supports data rates 250Mbps ~ 3Gbps
  • Supports PC VGA ~ WUXGA, HD 480i/p ~ 1080i/p, all 3D formats and UHD 4k2k 3840*2160@30Hz & 4096*2160@24Hz
  • Supports pass-thru HD audio formats LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Audio Sampling Rates 32kHz ~ 192kHz
  • HDMI Input/Output cable distance is 10m@1080p / 8-bit or 12-bit
  • CAT5e/6/7 cable distance up to 100m@HD/UHD/3D
  • Ethernet LAN transmission rate up to 100Mbps
  • Infra-Red bi-directional control
  • RS-232 control
  • Bi-directional Power over Ethernet (PoE) with compatible transmitter

Specifications:

  • Video Bandwidth: 340Mbps / 10.2Gbps
  • Input Ports: 1 x CAT5e/6/7, 1 x LAN, 1 x IR Extender, 1 x USB Mini-B (Service Only)
  • Output Ports: 2 x HDMI, 1 x IR Blaster, 1 x RS-232
  • CAT5e/6/7 distance: Up to 100 metres
  • HDMI cable distance: Up to 10 metres@1080p / 8-bit or 12-bit
  • HDMI Resolutions: VGA ~ WUXGA, 480i/p ~ 1080i/p, all 3D formats and 4k2k (3840*2160@30Hz & 4096*2160@24Hz)
  • Infra-Red Frequency: 30 ~ 50kHz
  • Power Supply: 100-240vAC to 24vDC 1.25A (US/EU standards; CE/FCC/UL certified)
  • Power Consumption (watts): 10w
  • Chassis Material: Black Metal
  • Dimensions (cm's): 10.0(l) x 11.2(w) x 3.8(h)
  • Weight (grams): 282g
  • ESD Protection - Human Body: ±8kV (air-gap); ±4kV (contact)
  • Operating Temperature: 0c ~ 40c
  • Relative Humidity: 20% ~ 90% RH (non-condensing)


Video and Audio Connection Type


Connects From : Connects To :
  • RJ-45 Control Telnet/WebGUI
  • CAT5 / CAT6 Cable RJ-45
  • HDMI (HDTV)


Video and Audio Signal Conversion


Converts From : Converts To :
  • CAT5/6 Protocol
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • WXGA HD (1280 x 720 @ 16:9)
  • WSXGA (1680x1050 @ 16:10)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • WUXGA (1920 x 1080 @ 16:10)
  • HDTV 480i
  • HDTV 576i
  • 4K x 2K
  • 3D


What is included with HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver


  • 1 x HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver
  • 1 x User Manual
  • 1 x Infrared sensor
  • 1 x VGA to Linejack Adaptor Cable
  • 1 x Product Manual
  • 1 x 100-240vAC to +24vDC 1.25A Power Supply

Additional Features


  • HD Bypass

HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver Images


HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Full View
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Full View

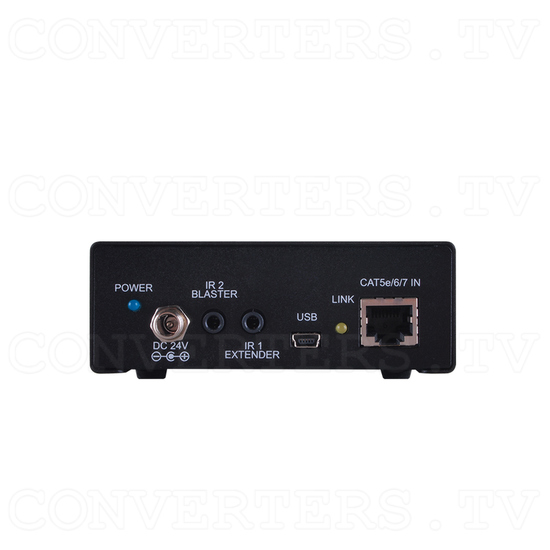

HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Front View
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Front View
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Back View
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Back View
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Infrared sensor
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - Infrared sensor
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - VGA to Linejack Adaptor Cable
HDBaseT Dual HDMI Output over Single CAT5e/6/7 Receiver - VGA to Linejack Adaptor Cable
