The HDMI v1.3 to CAT6 Transmitter is designed to allow you to extend a HDMI signal over a long distance. Instead of using expensive HDMI cables, this unit distributes the signal over a CAT6 cable. When used with an appropriate CAT6 to HDMI Receiver unit, the Input/Output source can run up to 45 meters (1080p/8 bits). The device supports Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, at a bandwidth of up to 225MHz. The unit is also able to be "Cascaded", meaning that several of these HDMI v1.3 to CAT6 units can be linked together to create an even longer Digital HDMI Signal transmission pathway. The unit equalizes and recovers incoming TMDS data before re-transmitting with optimal quality. Included with the HDMI v1.3 to CAT6 Transmitter is an IR Receiver and IR Blaster. This allows you to use your existing remote control to control your device over a 30/45 meter distance. Please note that the signal distance may be influenced by the source and display used, as well as cable specifications. For example a 1080p 8-bit signal is able to be extended further than a 1080p 12-bit signal. For more information please view the product specifications below. We recommend pairing this unit with the ID#749 HDMI v1.3 to CAT6 Transmitter unit.
CAT6 to HDMI v1.3 Receiver

CAT6 to HDMI v1.3 Receiver

  save 20%

Made In Taiwan

Product ID : 15183
Price : 101.00 USD (Change Currency)

RRP: 127.00 USD (less sale discount 26.00 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


The HDMI v1.3 to CAT6 Transmitter is designed to allow you to extend a HDMI signal over a long distance. Instead of using expensive HDMI cables, this unit distributes the signal over a CAT6 cable. When used with an appropriate CAT6 to HDMI Receiver unit, the Input/Output source can run up to 45 meters (1080p/8 bits).

The device supports Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, at a bandwidth of up to 225MHz. The unit is also able to be "Cascaded", meaning that several of these HDMI v1.3 to CAT6 units can be linked together to create an even longer Digital HDMI Signal transmission pathway. The unit equalizes and recovers incoming TMDS data before re-transmitting with optimal quality.

Included with the HDMI v1.3 to CAT6 Transmitter is an IR Receiver and IR Blaster. This allows you to use your existing remote control to control your device over a 30/45 meter distance.

Please note that the signal distance may be influenced by the source and display used, as well as cable specifications. For example a 1080p 8-bit signal is able to be extended further than a 1080p 12-bit signal. For more information please view the product specifications below.

We recommend pairing this unit with the ID#749 HDMI v1.3 to CAT6 Transmitter unit.


Unit Dimensions: 7.9 x 7.2 x 3.0 cm Shipping Weight: 0.60 kg
Location: NSW, Australia Item Type: CAT5/6 Cable Products
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (322.88 KB)


CAT6 to HDMI v1.3 Receiver - Product Details


Features:

  • Complies with HDMI 1.3, HDCP 1.1 and DVI1.1 standards
  • Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio
  • Supports CAT6 cables for data/DDC transmission
  • Supports equalize and recover incoming TMDS data before re-transmitting them with optimal quality regardless of the incoming signal quality
  • Supports high definition resolution, the cable distance test @ 1080p/8bits: Input/Output source can run up to 30/45 meters; @ 1080p/12bits: Input/Output source can run up to 15/15 meters
  • Supports CEC bypass
  • Supports xvYCC
  • Supports IR Receiver & IR Blaster
  • Supports full range of IR frequencies from 20~60 KHz
  • Supports multi cascade for further extension of the signal distance

Specifications:

  • Transmitter: 1 x HDMI, 1 x IR Blaster, 1 x CAT-6 Input Video, 1 x CAT-6 Input DDC
  • HDMI Input Cable: 1080p 8-Bit (15M), 12-Bit (15M)
  • HDMI Output Cable: 1080p 8-Bit (15M), 12-Bit (15M)
  • Cat6 Cable: 1080p 8-Bit (45M), 12-Bit (20M)
  • Power Supply: 5V, 2.6A (US/EU Standards, CE/FCC/UL Certified)
  • ESD Protection: ±8kV (air-gap discharge), ± 4kV (contact discharge)
  • Dimensions (cm): Receiver: 7.9 (w) x 7.2 (d) x 3.0 (h)
  • Weight (g): Receiver: 140g
  • Chassis Material: Aluminium
  • Colour: Silver
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Power Consumption: 5W/TX, 5W/RX
  • Relative Humidity: 20 ~ 90% RH (non-condensing)

Power Supplies:

  • Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive


Video and Audio Connection Type


Connects From : Connects To :
  • CAT5 / CAT6 Cable RJ-45
  • HDMI (HDTV)


Video and Audio Signal Conversion


Converts From : Converts To :
  • CAT5/6 Protocol
  • VGA (640 x 480 @ 4:3)
  • SVGA (800 x 600 @ 4:3)
  • XGA (1024 x 768 @ 4:3)
  • SXGA (1280 x 1024 @ 5:4)
  • UXGA (1600 x 1200 @ 4:3)
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • HDTV 480i
  • HDTV 576i


What is included with CAT6 to HDMI v1.3 Receiver


  • 1 x CAT6 to HDMI v1.3 Receiver
  • 1 x User Manual
  • 1 x IR Blaster
  • 1 x Product Manual
  • 1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

CAT6 to HDMI v1.3 Receiver Images


CAT6 to HDMI v1.3 Receiver - ID#15183 Full View.png
CAT6 to HDMI v1.3 Receiver - ID#15183 Full View.png

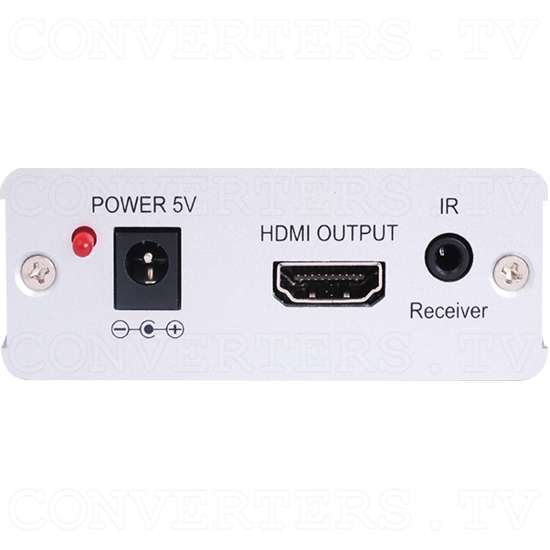

CAT6 to HDMI v1.3 Receiver - ID#15183 Front View.png
CAT6 to HDMI v1.3 Receiver - ID#15183 Front View.png
CAT6 to HDMI v1.3 Receiver - ID#15183 Back View.png
CAT6 to HDMI v1.3 Receiver - ID#15183 Back View.png

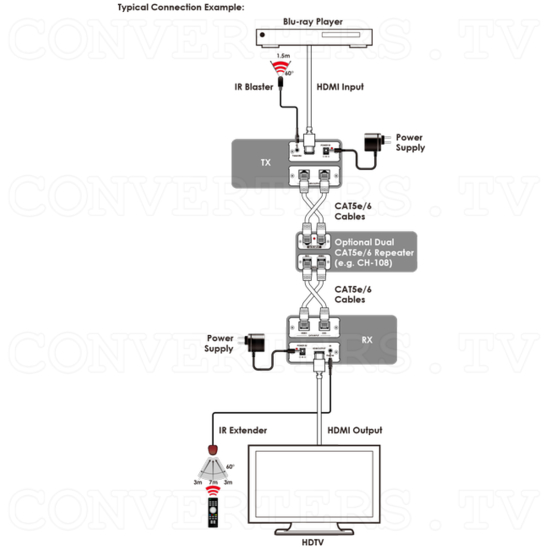

CAT6 to HDMI v1.3 Receiver - ID#15183 Full Con Diagram.png
CAT6 to HDMI v1.3 Receiver - ID#15183 Full Con Diagram.png
CAT6 to HDMI v1.3 Receiver - Infrared Blaster.jpg
CAT6 to HDMI v1.3 Receiver - Infrared Blaster.jpg
CAT6 to HDMI v1.3 Receiver - Power Supply 110v OR 240v
CAT6 to HDMI v1.3 Receiver - Power Supply 110v OR 240v
