HDMI v1.3 Video and Digital Audio Selector 4in:1out

save 35%

Product ID :

00619

Price :

119.60 USD (Change Currency)

RRP: 185.40 USD

(less sale discount 65.80 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

HDMI v1.3 Video and Digital Audio Selector 4in:1out is a high performance switch, allowing quick and easy control of 4 x HDMI video with separate digital coaxial or TOSlink audio sources to display on 1 x High Definition TV or projector. Fully HDMI Video v1.3 compatible, this product supports Dolby Digital TrueHD and DTS-HD Master Audio transmission. Designed for application in Retail Stores, Conference Centres and is ideal for Home Theatre integration.

The HDMI v1.3 Video and Digital Audio Selector 4in:1out has four HDMI inputs and each input has its own individual Coaxial and Optical Fibre TOSlink audio input. The output is a single HDMI video out with one Coaxial and one Optical Fibre audio links. The digital audio is presented to both outputs simultaneously. You may connect either output to your sound system, as required. The audio signal is still carried with the HDMI video signal to your HDTV via the HDMI cable, giving you a third option.

Fully remote controlled for easy use, or with RS-232 for PC control, the versatile HDMI v1.3 Video and Digital Audio Selector simplifies your connection problems in either Professional or Private domains.

Unit Dimensions:	24.0 x 9.0 x 4.3 cm	Shipping Weight:	1.50 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Manual :	User Manual (207.73 KB)

HDMI v1.3 Video and Digital Audio Selector 4in:1out - Product Details

Features:

HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
Supports 30/36/48 bit color depth display
Supports High Definition Digital Audio - Dolby Digital TrueHD and DTS-HD Master Audio
Auto Signal Enhancement feature can improve signal quality over long distance transmission
LED indicators
Ideal for Conference Centres, Retail Shops and Home Theatre integration,
Supports high resolution input: PC: VGA, SVGA, XGA, SXGA, UXGA (1600 x 1200) and 1920 x 1200; HDTV: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Remote control & RS232 for PC control
Power supply 5vDC 2.6A working
Sturdy, compact, easy to install and operate

Specifications:

Frequency Bandwidth: 2.25 Gbps (single link)
HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
30/36/48 bit color depth display
HDMI inputs: 4 x Female ports (Type A)
HDMI output: 1 x Female port (Type A)
PC: VGA, SVGA, XGA, SXGA, UXGA (1600 x 1200) and 1920 x 1200
HDTV: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Supports Dolby Digital TrueHD and DTS-HD Master Audio transmission
Audio inputs: 4 x TOSlink optical fibre; 4 x coaxial cable
Audio output: 1 x TOSlink optical fibre; 1 x coaxial cable
Power Supply: 5vDC 2.6A
Dimensions (cm's): 24.0(w) x 9.0(d) x 4.3(h)
Weight (grams): 850g

Power Supplies:

Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV) Coaxial RCA S/PDIF Optical TOSlink S/PDIF VGA 9 pin D-sub	HDMI (HDTV) Coaxial RCA S/PDIF Optical TOSlink S/PDIF

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i Optical S/PDIF	HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i Optical S/PDIF

What is included with HDMI v1.3 Video and Digital Audio Selector 4in:1out

1 x 4-in 1-out HDMI v1.3 with Digital Audio Switcher 4in:1out
1 x Product Manual
1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

Additional Features

Remote Control

HDMI v1.3 Video and Digital Audio Selector 4in:1out Images

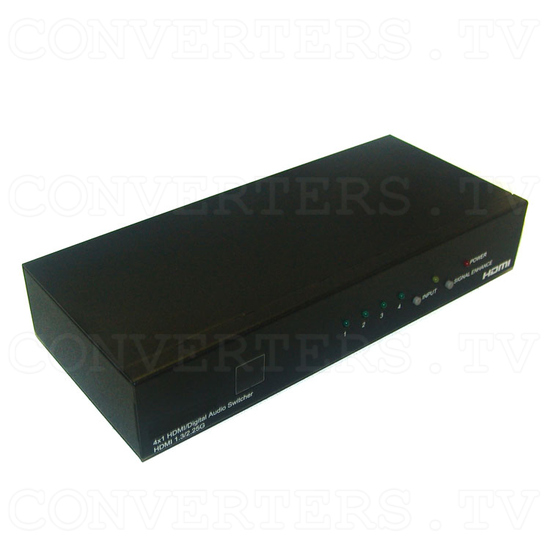

HDMI v1.3 Video and Digital Audio Selector 4in:1out - Full View

HDMI v1.3 Video and Digital Audio Selector 4in:1out - Front View

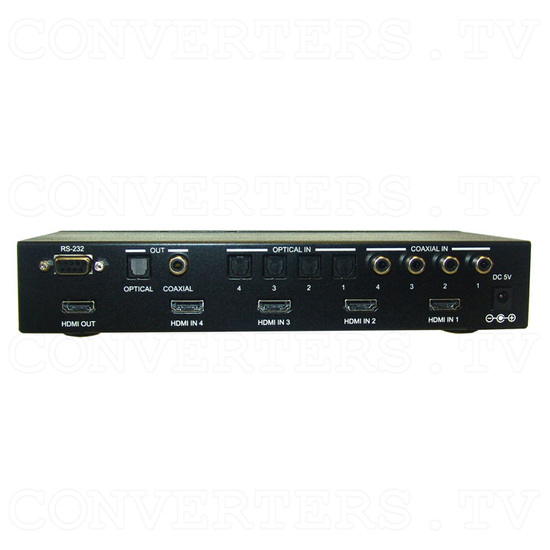

HDMI v1.3 Video and Digital Audio Selector 4in:1out - Back View

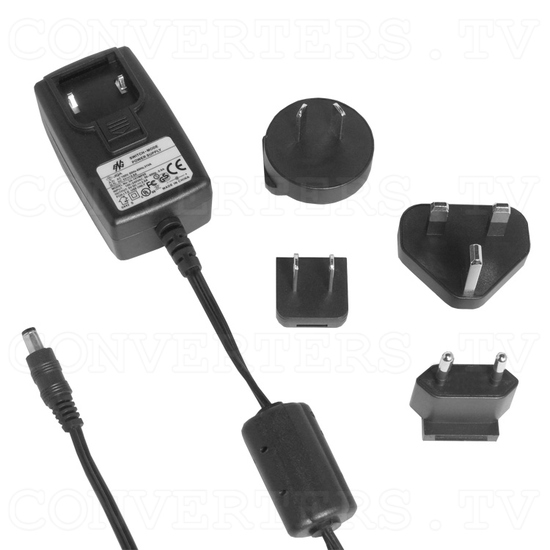

HDMI v1.3 Video and Digital Audio Selector 4in:1out - Power Supply 110v OR 240v

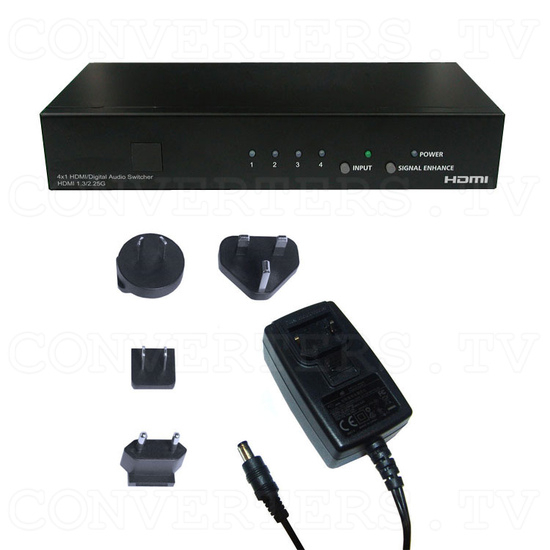

HDMI v1.3 Video and Digital Audio Selector 4in:1out - Full Kit
