HDMI v1.3 1 x 16 HDMI Splitter

Features:

• Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.0
• Deep Color Video up to 12bits, 1080p@(24/60)Hz
• One HDMI source connect up to sixteen HDMI display simultaneously
• HDCP keysets allows each output to work independently when connecting to a HDMI display
• Splits a HDMI source up to sixteen outputs without signal loss
• Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
• Supports LPCM 7.1Ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz Fs sample rate)
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
• HDMI cable distance tested with 1080p/8bits resolution the I/O source can up run up to 15/15 meters. If 1080p/12bits the I/O source can run up to 15/10 meters.

Note:

• Cable tested with 24AWG using cables of another type may result in a different operating distance.
• Cable distance test included the following: PS3 120G and 37" Samsung 12-bit LCD TV.
• Figures provided in this manual are reference figures only, actual figures may depend on source and display use with cable specification.
• Supports EDID functionality. The unit will detect the first HDMI/DVI output source's EDID and record in the unit. If the first detected output source is empty it will pass to next source, until the first HDMI/DVI been detected. When user reconnect all the output sources or re-plug the power, the system will automatically recover the EDID.
• Support xvYCC
• Support CEC bypass

Specifications:

• TMDS Clock Frequency: 2.25Gbps

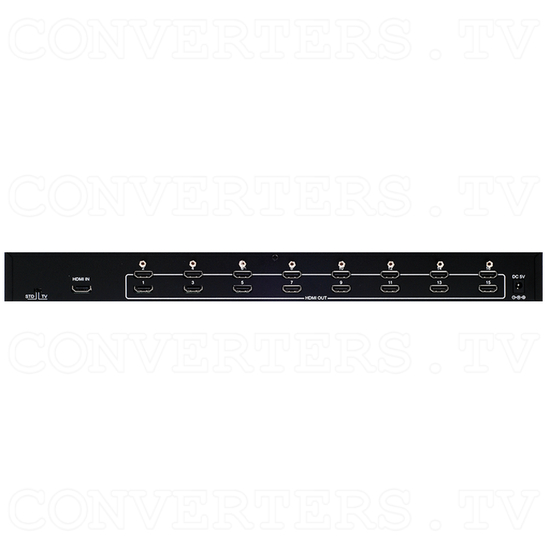

• Input Port: 1 x HDMI,
• Output Ports: 16 x HDMI
• EDID: STD/TV
• HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD
• HDMI Cable In: 1080p 8-bit (15M), 12-bit (15M)
• HDMI Cable Out: 1080p 8-bit (15M), 12-bit (10M)
• IR Frequency: 20~60KHz
• Power Supply: 5V / 6A DC (US/EU standards, CE/FCC/UL certified)
• ESD Protection Human body model: ± 8kV (air-gap discharge), ± 6kV (contact discharge)
• Dimensions(mm): 436 (W) x 120 (D) x 49(H)
• Weight(g): 2000
• Chassis Material: Metal
• Silkscreen Color: Black
• Operating Temperature: 0°C~40°C / 32°F~104°F
• Storage Temperature: -20°C~60°C / -4°F~140°F
• Power Consumption: 20W
• Relative Humidity: 20 ~ 90% RH (non-condensing)

Power Supplies:

• Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 6A Switch Mode Power Supply Centre Positive

• 1 x CYP - HDMI v1.3 1 x16 HDMI Splitter - CLUX-16E
• 1 x Product Manual
• 1 x 250V Power Cord
• 1 x 100-240VAC to 5V DC 6A Switch Mode Power Supply (Centre Positive)
