  Home - HDMI 6G Audio Bridge with Pattern Generator Last Update: Sun 24th September 2023
The HDMI 6G Audio Bridge with Pattern Generator is an advanced tool for generating 6G HDMI test signals for checking HDMI 4K2K UHD devices. With 6 settings covering Ultra HD (4K2K) and Full HD (1080p) resolutions, 4 test patterns, HDCP (1.4, 2.2, non-HDCP) and 3 audio types, all combine to provide over one hundred types of test patterns. The HDMI 6G Audio Bridge with Pattern Generator fully incorporates digital and analog audio inputs for embedding into an HDMI output. The colorful LED readout of the HDMI 6G Audio Bridge with Pattern Generator allows fast and easy selection of patterns and quick viewing of the current status. Applications: - Product testing - R & D design and testing
HDMI 6G Audio Bridge with Pattern Generator

HDMI 6G Audio Bridge with Pattern Generator

  save 3%

Made In Taiwan

Product ID : 15421
Price : 128.25 USD (Change Currency)

RRP: 132.55 USD (less sale discount 4.30 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


The HDMI 6G Audio Bridge with Pattern Generator is an advanced tool for generating 6G HDMI test signals for checking HDMI 4K2K UHD devices. With 6 settings covering Ultra HD (4K2K) and Full HD (1080p) resolutions, 4 test patterns, HDCP (1.4, 2.2, non-HDCP) and 3 audio types, all combine to provide over one hundred types of test patterns.

The HDMI 6G Audio Bridge with Pattern Generator fully incorporates digital and analog audio inputs for embedding into an HDMI output. The colorful LED readout of the HDMI 6G Audio Bridge with Pattern Generator allows fast and easy selection of patterns and quick viewing of the current status.

Applications:
  • Product testing
  • R & D design and testing


Unit Dimensions: 9.7 x 7.8 x 3.0 cm Shipping Weight: 0.49 kg
Location: NSW, Australia Item Type:
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (248.84 KB)


HDMI 6G Audio Bridge with Pattern Generator - Product Details


Features:

  • HDMI with 4K2K 6G support and HDCP 2.2 compliant
  • Generate HDMI timings up to 6Gbps 4K2K@60Hz
  • Generate HDCP v1.4/v2.2 and non-HDCP signals
  • Supports external Stereo (analog) and Optical (digital) audio input

Specifications:

  • Video Bandwidth: 600MHz / 6Gbps
  • Input Port: 1 x HDMI; 1 x Optical; 1 x L/R; 1 x USB (Service only)
  • Output Port: 1 x HDMI
  • Supported Resolutions: 720p@50/60Hz; 1080p@50/60Hz; 4K2K@25/30/50/60Hz
  • Power Supply: 100-240vAC to +5vDC 2.6A (US/EU standards; CE/FCC/UL certified)
  • Power Consumption (watts):
  • Dimensions (cm's): 9.7 (w) x 7.8 (d) x 3.0 (h) with jacks
  • Weight (grams): 197g
  • Chassis: Black Aluminium
  • Operating Temperature: 0c ~ 40c / 32f ~ 104f
  • Relative Humidity: 20% ~ 90% RH (non-condensing)
  • ESD Protection: Human Body Model: ±8kV (air-gap); ±4kV (contact)

Power Supplies:

  • Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive


Video and Audio Connection Type


Connects From : Connects To :
  • HDMI (HDTV)
  • Optical TOSlink S/PDIF
  • Analog Stereo L/R Jacks
  • USB (Service)
  • HDMI (HDTV)


Video and Audio Signal Conversion


Converts From : Converts To :
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • HDTV 480i
  • HDTV 576i
  • Optical S/PDIF
  • Analog Stereo L/R Audio
  • 4K x 2K
  • 3D
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • HDTV 480i
  • HDTV 576i
  • 4K x 2K
  • 3D


What is included with HDMI 6G Audio Bridge with Pattern Generator


  • 1 x HDMI 6G Audio Bridge with Pattern Generator
  • 1 x 100-240vAC to +5vDC 2.6A PSU
  • 1 x User Manual
  • 1 x Product Manual
  • 1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

HDMI 6G Audio Bridge with Pattern Generator Images


HDMI 6G Audio Bridge with Pattern Generator - Full View
HDMI 6G Audio Bridge with Pattern Generator - Full View

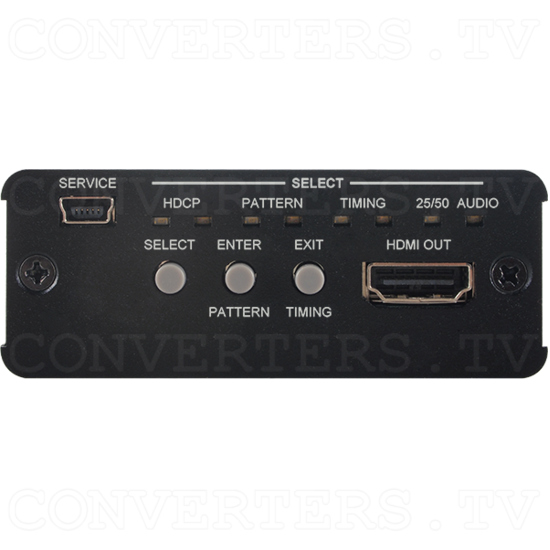

HDMI 6G Audio Bridge with Pattern Generator - Front View
HDMI 6G Audio Bridge with Pattern Generator - Front View

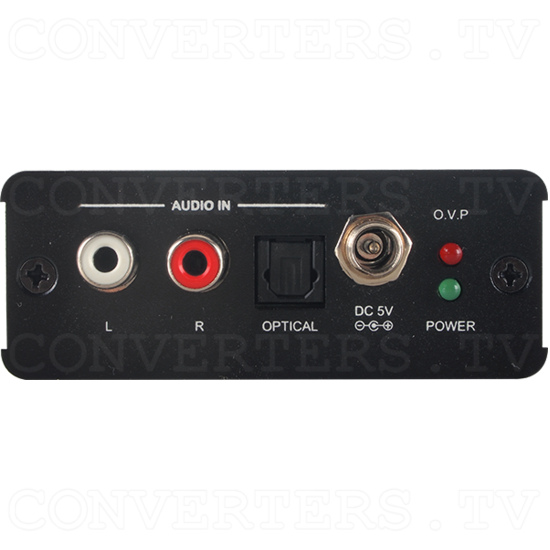

HDMI 6G Audio Bridge with Pattern Generator - Back View
HDMI 6G Audio Bridge with Pattern Generator - Back View
HDMI 6G Audio Bridge with Pattern Generator - Power Supply 110v OR 240v
HDMI 6G Audio Bridge with Pattern Generator - Power Supply 110v OR 240v
