HDMI 4 in 1 out 4k2k Switch

save 21%

Product ID :

15376

Price :

149.65 USD (Change Currency)

RRP: 190.60 USD

(less sale discount 40.95 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The HDMI 4 in 1 out 4k2k Switch allows one of four source HDMI signals to be selected and displayed on one common monitor. Input HDMI source equipment such as Blu-ray and DVD players, Set-Top-Box's and gaming consoles like XBox and PS3 and output to an HDMI TV/Display with HDMI cable. It supports the latest HDMI features such as Ultra HD 4k2k resolutions, all 3D Content, 36-bit Deep Color and High-definition lossless audio formats. It has the added benefit of control via IR remote control, RS-232, IP/Telnet and Web GUI.

The HDMI 4 in 1 out 4k2k Switch is suitable for:

Home Theatre Centres
Lecture Rooms and Hall Presentation
Show Room and Demonstration Room
Public Commercial Display
Advertising and Information Board

Unit Dimensions:	24.0 x 11.1 x 4.8 cm	Shipping Weight:	1.35 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (304.03 KB)

HDMI 4 in 1 out 4k2k Switch - Product Details

Features:

HDMI (with 3D & UHD 4k2k supported) and HDCP compliant
Select any one of four HDMI sources and display on a HDTV, with fast switching between sources
Supports 3D signals pass-through
Supports HDTV resolutions up to UHD 4Kx2K (3840x2160@24/25/30/50/60 YUV_420 & 4096x2160@24/50/60 YUV_420)
Supports HDMI data rate from 300Mbps to 3Gbps and 'Deep Color' up to 1080p/36-bit
Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
Supports Audio pass-through of High-definition Audio formats of LPCM 2CH~7.1CH, Dolby Digital 2CH~5.1CH, DTS 2CH~5.1CH, Dolby TrueHD and DTS-HD Master Audio
HDMI inputs support ‘Standard’ and ‘Apple’ HDCP modes. Selecting ‘Apple’ mode guarantees the compatibility of Apple devices with this matrix
Supports Telnet and WebGUI control

Specifications:

Frequency bandwidth: 300Mbps to 3Gbps
Input Ports: 4 x HDMI, 1 x USB (Service only), 1 x RJ45 (Control), 1 x RS-232, 1 x IR Extender
Output ports: 1 x HDMI
Resolution: 480i/p ~ 1080i/p@50/60, 1080p@24, UHD 4k2k (3840x2160@24/25/30, 50/60 YUV_420 & 4096x2160@24, 50/60YUV_420Hz)
HDMI I/O Cable Distance: 15m@8 & 12bit, 5m@4Kx2K
IR Frequency: 30~50kHz
Power Supply: 100-240vAC to +5vDC 2.6A (US/EU standards, CE/FCC/UL certified)
Power Consumption (W): 4W
Dimensions (cm): 24.0(w) x 10.4(d) x 4.3(h) /Jacks Excluded, 24.0(w) x 11.12(d) x 4.8(h) /Jacks Included
Weight (grams): 0.798kg
Chassis Material: Metal
Silkscreen Color: Black
Operating Temperature: 0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature: -20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity: 20~90% RH (no condensation)
ESD Protection Human Body model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV)	HDMI (HDTV) RJ-45 Control Telnet/WebGUI RS-232 (9 pin D-Sub) IR Extender (Rx)

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i 4K x 2K 3D	HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i 4K x 2K 3D

What is included with HDMI 4 in 1 out 4k2k Switch

1 x 4 x 1 HDMI 4K2K Switcher
1 x Remote Control with Battery
1 x IR Receiver Cable
1 x 100-240vAC to +5vDC 2.6A Power Adaptor
1 x User Manual

Additional Features

Remote Control

HDMI 4 in 1 out 4k2k Switch Images

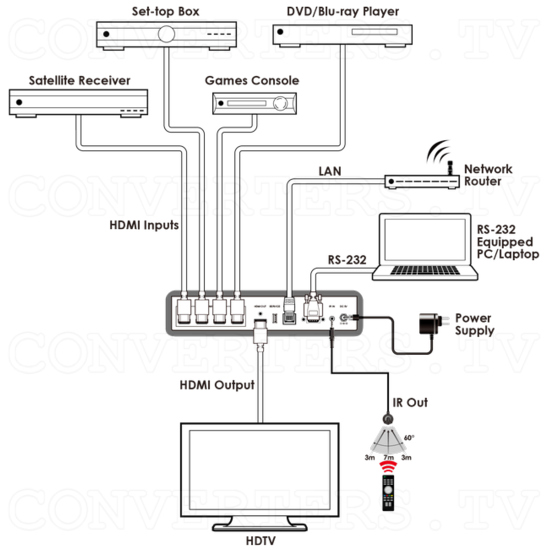

HDMI 4 in 1 out 4k2k Switch - Setup Features

HDMI 4 in 1 out 4k2k Switch - Full View

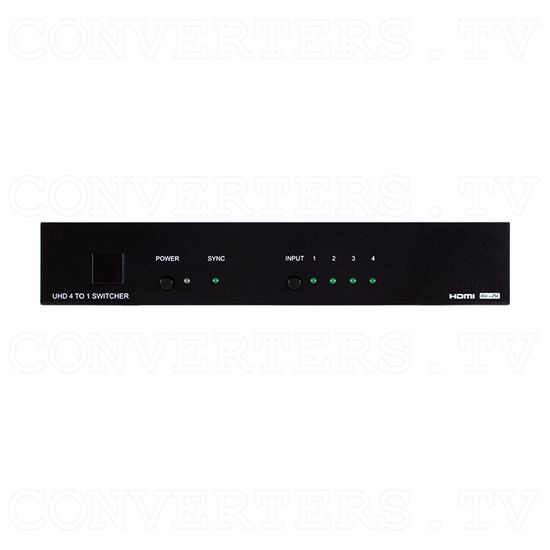

HDMI 4 in 1 out 4k2k Switch - Front View

HDMI 4 in 1 out 4k2k Switch - Back View

HDMI 4 in 1 out 4k2k Switch - 4h1.png
