HDMI 2 In 1 Out Switcher

$100.55
$82.20 USD
Freight Calculator


Availability In Stock
Product No. 780
Condition New
Warranty 12 Months
Manufacturer Cypress Technology
Cypress Technology Product No CH-2170
Location Australia

Product Description

The HDMI 2 In 1 Out Switcher is a quality, high performance HDMI switch designed to allow either of two HDMI sources to be displayed on one High Definition TV. The very simple and compact design makes for effort free control of your HDMI sources such as Blu Ray players, Set Top Box, Cable Box, DVD players, Game consoles, etc. Simple and affordable, the switcher is ideal for any Home Theatre setup.

Standard and High Definition video support for PC: VGA, SVGA, XGA, SXGA and UXGA(1600*1200) and for HDMI/DVI: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Transmission distance from the device output is up to 70m@1080p. Automatic equalization of the received single compensates for long distance transmission of High Definition signals. Output resolution equals selected input resolution.

Simple to install and operate, it is powered by a 100-240vAC to 5vDC power adapter. It makes controlling your HDMI video sources very easy and uncomplicated with clearly marked inputs 1 and 2, and 1 output, plus an easily accessible top mounted switch for input selection, the HDMI 2 In 1 Out Switcher simplifies the operation of your Home Theatre devices. Also works with DVI video equipment using a DVI to HDMI Adapter cable and extend Audio from the source player direct to an external sound system.

Product Details

Features:

  • HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant
  • Input LED indicators: Red=Input 1; Green=Input 2
  • Accepts HDMI and DVI input/output
  • Automatically provides equalisation to compensate for long cable transmission loss up to 70m@1080p
  • Supports high resolution input: PC: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200); HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
  • Easy to install and operate

Specification:

  • Frequency Bandwidth: 1.65Gbps (single link)
  • Output resolution = Input resolution (if 720p in = 720p out; 1080p in = 1080p out)
  • Inputs: 2 x HDMI female ports (Type A connector)

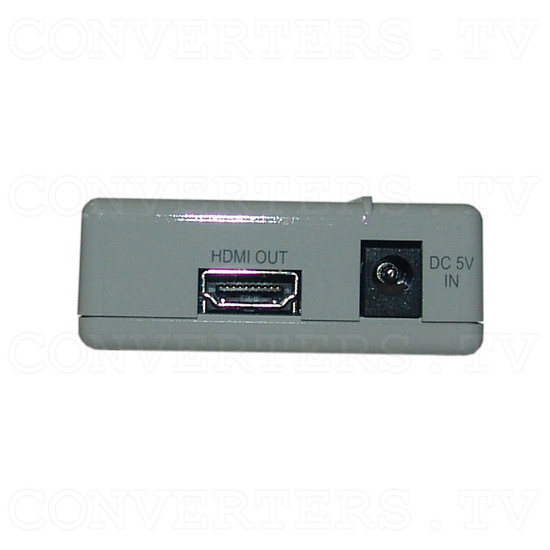

  • Output: 1 x HDMI female port (Type A connector)
  • 100-240vAC to 5vDC Power Adapter, Center Positive
  • Weight(g): 95g
  • Dimensions(mm): 100(W) x 64(L) x 18.5(H)
  • Colour: White
  • Operating Temperature: 0°C~40°C

Accepted Resolutions: HDMI/DVI:

PC:

  • 640*480@60Hz
  • 640*480@72Hz
  • 640*480@75Hz
  • 800*600@56Hz
  • 800*600@60Hz
  • 800*600@72Hz
  • 800*600@75Hz
  • 1024*768@60Hz
  • 1024*768@70Hz
  • 1024*768@75Hz
  • 1280*960@60Hz
  • 1280*1024@60Hz
  • 1280*1024@75Hz
  • 1600*1200@60Hz
  • 1920*1200@60Hz

HD:

  • 720*480i@59Hz
  • 720*480i@60Hz
  • 720*480p@59Hz
  • 720*480p@60Hz
  • 1280*720p@59Hz
  • 1280*720p@60Hz
  • 1920*1080i@59Hz
  • 1920*1080i@60Hz
  • 1920*1080p@59Hz
  • 1920*1080p@60Hz
  • 720*576i@50Hz
  • 720*576p@50Hz
  • 1280*720p@50Hz
  • 1920*1080i@50Hz
  • 1920*1080p@50Hz
  • 1920@1080p@23Hz
  • 1920*1080p@24Hz
  • 1366*768@60Hz
  • 1366*768@50Hz

Dimensions and Weight

Depth
6.4 cm
2.51 inches
Width
10.0 cm
3.93 inches
Height
1.9 cm
0.74 inches
Weight
0.095 kg
0.20 lb

Carton Details

Depth
11.7 cm
4.60 inches
Width
21.0 cm
8.26 inches
Height
6.0 cm
2.36 inches
Weight
0.338 kg
0.74 lb
  • Shipping Weight = 0.338 kgs

Product Information

Product Type
Location
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
Conversion From
Conversion To

HDMI 2 In 1 Out Switcher Manuals

What's Included

  • HDMI 2 In 1 Out Switcher
  • HDMI 2 In 1 Out Switcher User Manual
  • Switch mode Power Supply 100~240v 50
  • 60Hz 0.3A, DC 5V ~ 1.2A
