HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving

save 37%

Product ID :

15393

Price :

1111.65 USD (Change Currency)

RRP: 1775.00 USD

(less sale discount 663.35 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving supports the transmission of HDMI video signals (with resolutions up to UHD 4K2K) and digital multi-channel audio signals over a single CAT5e/6/7 cable for up to 100m distance for each individual output. System setup and control is achieved using IR, RS-232, Telnet or WebGUI protocol. A LAN connectivity port allows a 100BaseT network to be attached to 'Smart TV's' or game consoles.

The HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving supports SD and HD video 480i/p ~ 1080i/p@50/60Hz, all 3D video and UHD 4k2k video formats with the associated 3D and UHD 4k2k equipment attached. Full support is also given for HD digital audio formats such as LPCM 2Ch ~ 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

The Power over Cable (PoC) function can power compatible Receivers, providing greater flexibility in installations.

Applications:

HDMI Matrix System
Video/TV wall display and control
Security surveillance and control
Commercial advertising, display and control
University lecture hall, display and control
Retail sales and demonstration

System Requirements:

HDMI sources connect with HDMI cables; DVI sources connect with DVI to HDMI cables
HDMI displays (TVs or monitors) or HDMI AV Receivers connect with HDMI cables
Industry standard CAT5e/6/7 cables
HDBaseT™ Receivers

Compatible Receivers:

ID#782: https://www.converters.tv/products/hdtv_to_hdtv/782.html
ID#15336: https://www.converters.tv/products/hdtv_to_hdtv/15336.html

Unit Dimensions:	43.6 x 25.6 x 4.8 cm	Shipping Weight:	6.66 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (503.75 KB)

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Product Details

Features:

HDMI, HDCP1.1 and DVI compliant
LCM (Liquid Crystal Module) display of each channel's operating information
Supports all 3D formats and features
Supports resolutions VGA~WUXGA, HD1080p@50/60Hz, 3D and 4K2K @50/60(YUV_420) dependent upon the output display EDID settings
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports 3D signal display dependent upon the output display EDID settings
Supports transmission distances up to 100 meters through CAT5e/6/7 cables
Supports HDMI input/output transmission distance up to 10m at 8-bit/12-bit resolution, or 5m at 4k2k resolution
Supports PoC (Power over Cable) for compatible receivers
Supports bi-directional IR from input and output locations
Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
1U size design
Supports external and internal EDID settings

Specifications:

Video Bandwidth: 340 MHz/10.2 Gbps
Input Ports: 4×HDMI, 5×IR Extender, 1×RS-232, 1×RJ-45(Control), 1×Mini USB Type B (For firmware updated only)
Output Ports: 4×CAT5e/6/7, 5×IR Blaster
Power Supply: 100-240vAC to +24vDC 3.75A (US/EU standards, CE/FCC/UL certified)
Power Consumption (watts): 66w
Dimensions: 43.6 cm (W)×24.9 cm (D)×4.4 cm(H)/ Jacks Excluded, 43.6 cm (W)×25.62 cm (D)×4.8 cm (H)/Jacks Included
Weight: 3.352 kg
Chassis Material: Metal
Silkscreen Color: Black
Operating Temperature: 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature: −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity: 20~90 % RH (non-condensing)
ESD Protection: Human-body Model: ± 8kV (Air-gap discharge), ± 4kV (Contact discharge)

Includes:

1 x HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving
1 × IR Extender
1 × IR Blaster
1 × 24vDC 3.75A Power Adaptor
1 × Power Cord
1 × IR Remote Control with battery
1 x Right and Left Ear Jack Set
1 x User Manual

Note:

Do not connect the LAN/CONTROL port to CAT outputs of this device.
Do not connect more than one Ethernet/network link within the Matrix system, doing so may cause equipment malfunction and damage
The PoC (Power over Cable) function is designed for powering compatible receiver units only. Non-PoC receivers will need their own power supply. Receivers of another brand may not be compatible.

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV) RS-232 (9 pin D-Sub) LAN IR Extender (Rx)	CAT5 / CAT6 Cable RJ-45 IR Blaster (Tx)

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i 4K x 2K 3D	CAT5/6 Protocol

What is included with HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving

1 x HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving
5 x Infrared Blaster
5 x Infrared Extender
1 x 100-240vAC to +24vDC 3A Power Supply
1 x Remote Control
1 x 250V Power Cord
1 x Product Manual

Additional Features

Remote Control

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving Images

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Full View

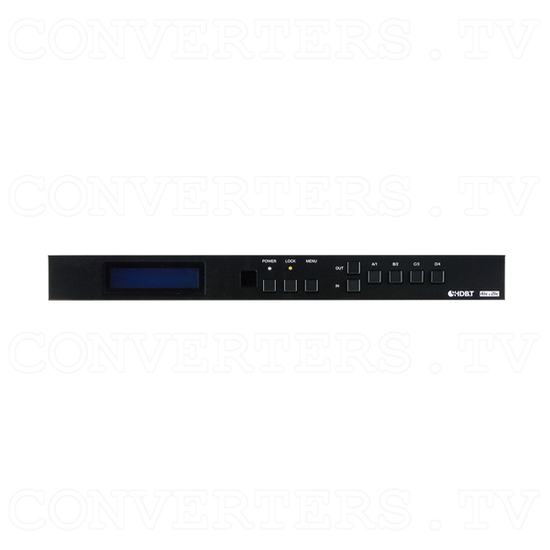

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Front View

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Back Panel

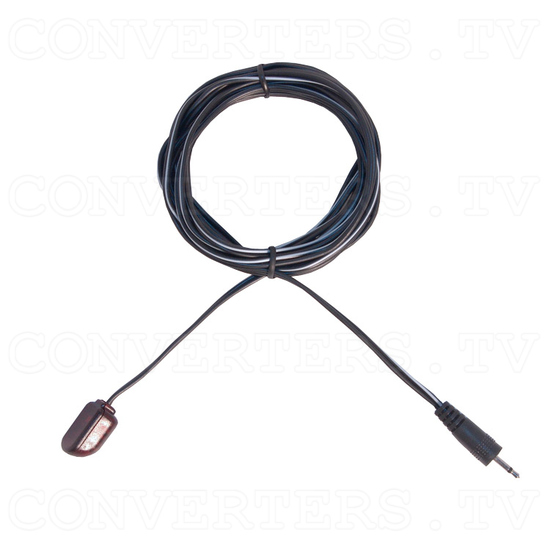

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Infrared sensor

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Infrared Reciever

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Remote Control

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Bracket

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - 250V Power Cord

HDBaseT 4x4 UHD HDMI over CAT5e/6/7 Matrix with LAN Serving - Power Supply 110v OR 240v
