DVI to HDMI Converter

save 33%

Product ID :

15040

Price :

47.40 USD (Change Currency)

RRP: 71.10 USD

(less sale discount 23.70 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The DVI to HDMI Converter accepts digital DVI video and unbalanced LPCM 2CH audio and combines and converts both to a compatible HDMI output signal. Video and audio signals from PC's and HD players outputting resolutions from VGA ~ WUXGA and 480i/p ~ 1080i/p are converted automatically to a comparable HDMI resolution and audio signal to connect to your HDMI TV.

The DVI to HDMI Converter accepts digital DVI video and unbalanced audio and converts all to HDMI video/audio interface standard. Video and audio signals from PC's and HD players outputting resolutions from VGA ~ UXGA-WUXGA and 480i/p ~ 1080i/p, are converted automatically to the same HDMI resolution + LPCM audio signal, to connect to your HDMI TV.

The DVI to HDMI Converter also allows a single DVI+SPDIF audio source to access an HDMI input TV. The converter allows one digital DVI+SPDIF device to be connected to a HD TV, monitor or projector. SPDIF audio is also passed through, converting coax to optical TOSlink or TOSlink to coax, allowing easy connection to most sound systems.

Ideal for connecting early digital DVI enabled devices to modern HDMI enabled HDTV's. Plug'n'Play, no software required.

Unit Dimensions:	8.2 x 7.0 x 3.3 cm	Shipping Weight:	0.34 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (590.17 KB)

DVI to HDMI Converter - Product Details

Features:

Converts digital DVI + SPDIF audio signal to HDMI interface standard signal (video + audio in one connection)
Plug'n'Play, no software required for operation, installs in minutes
Support video input: DVI digital - PC VGA~UXGA/WUXGA and HD 480i/p~1080i/p
Support audio input: SPDIF TOSlink and Coaxial unbalanced LPCM 2CH
Support video output: HDMI digital - 480i/p~1080i/p@24/50/60Hz, output format same as input
Support audio output: SPDIF TOSlink and Coaxial unbalanced LPCM 2CH
HDMIv1.3; HDCP 1.1; DVI 1.0 protocol compliant
Support CEC
Audio format support: Unbalanced LPCM 7.1/DTS-HD/Dolby-trueHD/Dolby-AC3/DSD
LED indication: when source and sink is working, the relative LED light will be lit.
Support HDMI output transmission distance up to 35m (low res) 20m (high res)
No loss of quality
Need DC5V/1A power supply

Specifications

DVI Digital Interface: DVI-D Dual Link
HDMI Digital Interface: Type A male
Audio Input: Unbalanced LPCM 2CH DTS-HD/Dolby -true HD/LPCM7.1/Dolby-AC3/DSD
HDMI/DVI resolution: HD 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i PC VGA~WUXGA@56/60/72/75Hz
Max transimission bandwidth: 5.1Gpbs
Power (volts): 100V-240vAC to +5vDC 1A (centre positive)
Power (watts): 5w
Operating temperature range: -15C to +55ºC
Operating humidity range: 5-90%RH (non condensation)
Dimensions (L x W x H): 82 x 69 x 33mm
Weight: 150g

Video and Audio Connection Type

Connects From :	Connects To :
DVI - D (HDTV) Coaxial RCA S/PDIF Optical TOSlink S/PDIF	HDMI (HDTV) Coaxial RCA S/PDIF Optical TOSlink S/PDIF

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i	HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i

What is included with DVI to HDMI Converter

1 x DVI to HDMI Converter
1 x Product Manual
1 x 100-240vAC to +5vDC 1A Power Adaptor

DVI to HDMI Converter Images

DVI to HDMI Converter - Full View

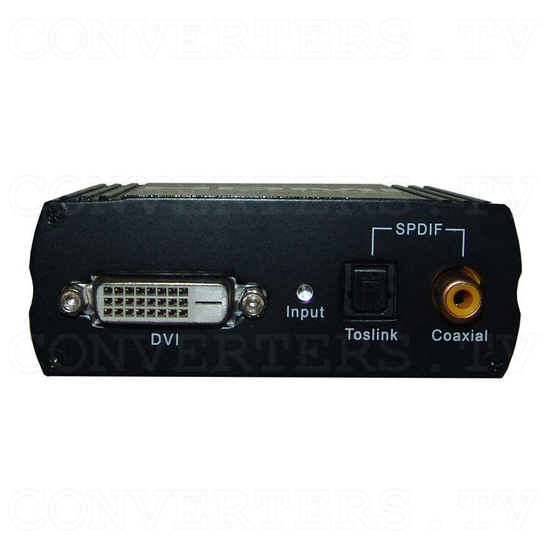

DVI to HDMI Converter - Front View

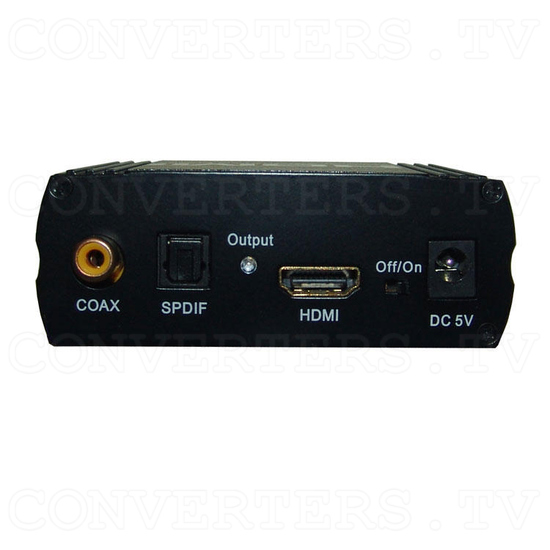

DVI to HDMI Converter - Back View

DVI to HDMI Converter - Power Supply 110v OR 240v

DVI to HDMI Converter - Full Kit
