The DVI Over CAT5 Transmitter allows a user to distribute a DVI signal over CAT5 cable. When used with a DVI Over CAT5 Receiver Box, this unit provides a great way to transmit and extend a DVI signal over a long distance (100-250metres depending on Receiver used). The unit transfers the HD image signal via DVI, as well as offering Left/Right and Coaxial audio ports for the transfer of analog/digital audio signals. Through the dedicated DDC port, the device also supports HDCP and CEC. The DVI over CAT5 Transmitter supports high definition input up to 1080P/UXGA, with output resolution following input resolution. The unit is suitable for anyone who wishes to further extend a DVI signal, and has many practical uses including digital signage, advertising, and home theatre integration. If the HDCP and DDC status are known for the source and display, then the following scenarios will apply: -If source and display support HDCP, users just need to use 1 CAT5/6 cable. -If source and display don't support HDCP, users need to use 2 CAT5/6 cables. -If display supports HDCP but source doesn't, users just need to use 1 CAT5/6 cable. -If source supports HDCP but display doesn't, there's no result.
DVI over CAT5 Transmitter

DVI over CAT5 Transmitter

  save 15%

Made In Taiwan

Product ID : 00750
Price : 113.70 USD (Change Currency)

RRP: 133.55 USD (less sale discount 19.85 USD )
Available : Stock


  Freight Quote On Sale
Contact Staff


The DVI Over CAT5 Transmitter allows a user to distribute a DVI signal over CAT5 cable. When used with a DVI Over CAT5 Receiver Box, this unit provides a great way to transmit and extend a DVI signal over a long distance (100-250metres depending on Receiver used).

The unit transfers the HD image signal via DVI, as well as offering Left/Right and Coaxial audio ports for the transfer of analog/digital audio signals. Through the dedicated DDC port, the device also supports HDCP and CEC.

The DVI over CAT5 Transmitter supports high definition input up to 1080P/UXGA, with output resolution following input resolution. The unit is suitable for anyone who wishes to further extend a DVI signal, and has many practical uses including digital signage, advertising, and home theatre integration.

If the HDCP and DDC status are known for the source and display, then the following scenarios will apply:

  • If source and display support HDCP, users just need to use 1 CAT5/6 cable.
  • If source and display don't support HDCP, users need to use 2 CAT5/6 cables.
  • If display supports HDCP but source doesn't, users just need to use 1 CAT5/6 cable.
  • If source supports HDCP but display doesn't, there's no result.


Unit Dimensions: 12.5 x 13.0 x 3.0 cm Shipping Weight: 1.00 kg
Location: NSW, Australia Item Type: CAT5/6 Cable Products
Condition: New Warranty : 12 Months
Certificates : CE, CTick, UL Manual : PDF User Manual (326.57 KB)
PDF User Manual (348.55 KB)


DVI over CAT5 Transmitter - Product Details


Features:

  • Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications
  • Supports Equalizer, Gain, CTI (Colour Transient Improvement) adjustment
  • Supports high definition input up to 1080P/UXGA - output resolution follows input
  • Easy to install and simple to operate
  • Connect CAT 5 back to DVI without signal loss
  • Supports DDC/HDCP signal transferring through DDC cable
  • Built-in EDID at transmitter
  • Support both external Coaxial and Stereo Sound

Specifications:

  • Transmitter Input port: 1 x DVI-I female port (Accept DVI-D signal only), 1 x Coaxial, 1 x L/R Audio
  • Transmitter Output port: 2 x CAT5 RJ 45 8pin
  • Receiver Input port: 2 x CAT5 RJ 45 8pin
  • Receiver Output port: 1 x DVI-I female port, 1 x Coaxial, 1 x L/R Audio
  • Resolution: HD- 480p 60, 576p 60, 720P 50/60, 1080i 50/60Hz, 1080p 50/60Hz, PC- 640 x 480=VGA72, VGA75, 800 x 600=SVGA56, SVGA60, SVGA72, SVGA75, 1024 x 768=XGA60, XGA70, XGA75, 1280 x 1024=SXGA60, SXGA75, 1600 x 1200=UXGA60, 1920 x 1200=Reduced blanking WUXGA
  • Power Supply: 5V / 2.6A DC power supply
  • Dimensions (mm): 125 x 130 x 30 / each
  • Weight (g): 700 /each
  • Material: Aluminium
  • Colour: Silver

Power Supplies:

  • Multi-Voltage Power Supply : 100 - 240VAC to 5V DC 2.6A Switch Mode Power Supply - Center Positive


Video and Audio Connection Type


Connects From : Connects To :
  • DVI - I (HDTV)
  • CAT5 / CAT6 Cable RJ-45


Video and Audio Signal Conversion


Converts From : Converts To :
  • HDTV 480p
  • HDTV 576p
  • HDTV 720p
  • HDTV 1080p
  • HDTV 1080i
  • HDTV 480i
  • HDTV 576i
  • CAT5/6 Protocol


What is included with DVI over CAT5 Transmitter


  • 1 x DVI over CAT5 Transmitter
  • 1 x User Manual ID#750 & ID#751
  • 1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive)

DVI over CAT5 Transmitter Images


DVI over CAT5 Transmitter - Full View
DVI over CAT5 Transmitter - Full View

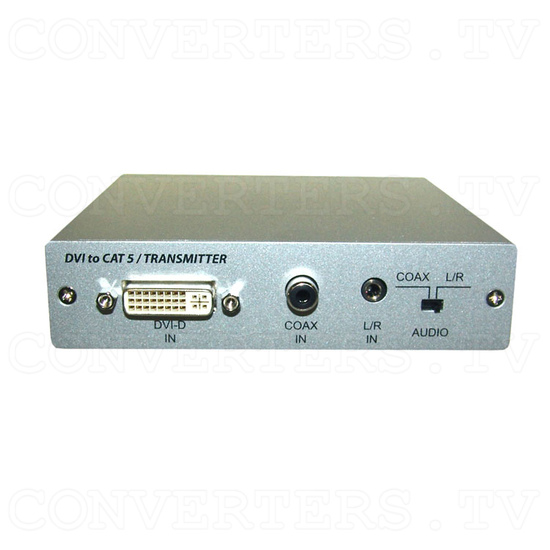

DVI over CAT5 Transmitter - Front View
DVI over CAT5 Transmitter - Front View
DVI over CAT5 Transmitter - Back View
DVI over CAT5 Transmitter - Back View

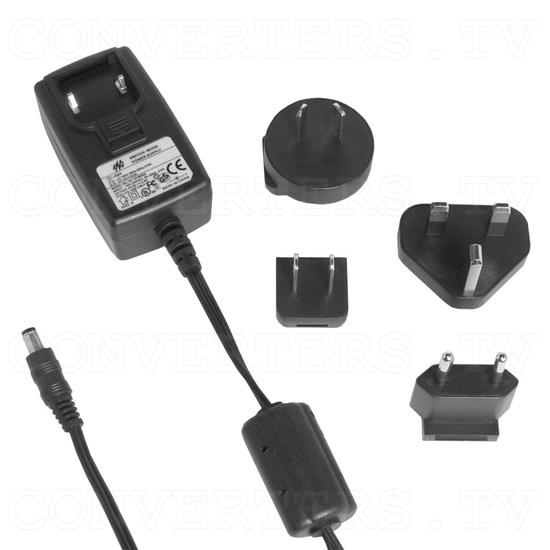

DVI over CAT5 Transmitter - Power Supply 110v OR 240v
DVI over CAT5 Transmitter - Power Supply 110v OR 240v
DVI over CAT5 Transmitter - Full Kit
DVI over CAT5 Transmitter - Full Kit
