4K2K HDMI Analyser and Enhancer

save 18%

Product ID :

15420

Price :

101.55 USD (Change Currency)

RRP: 123.35 USD

(less sale discount 21.80 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The new 4K2K HDMI Analyser and Enhancer is a tool designed for analysing HDMI HD and UHD 4K2K 6G video and audio signals. It can indicate the Bandwidth and HDCP details and allows for EDID and YUV420 selections. It can extend the signal up to a distance of ten metres and also allows users to upload EDID settings to a PC application, which can then be used to create alternative EDID settings for other specific uses. With direct selection keys for easy switching between modes and status LEDs which allow at-a-glance viewing of the device's status, the 4K2K HDMI Enhancer is a perfect tool for all professional Installers.

Applications:

HDMI signal extension
Display Source and Sink (HDTV) signal status
EDID selection
HDCP verification
4K2K YUV444 down sampling to 4K2K YUV420

Unit Dimensions:	9.7 x 5.0 x 2.3 cm	Shipping Weight:	0.44 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (221.55 KB)

4K2K HDMI Analyser and Enhancer - Product Details

Features:

HDMI 2.0 with 4K2K 6G suppot, HDCP 2.2/1.4 and DVI compliant
Supports signal analysis of source and display up to 6G 4K2K
Supports 6G bandwidth down-sampling to 3G
Supports HDMI 2.0
Supports HDCP v1.4 & v2.2a
Supports EDID selection from Internal, External and User
Supports application control via USB
Supports LED display of current operating status
Supports firmware update by USB

Specifications:

Video Bandwidth: 600MHz / 6Gbps
Input Ports: 1 x HDMI; 1 x USB (Service Only)
Output Ports: 1 x HDMI
HDMI Resolutions: VGA ~ WUXGA (RB), 480i/p ~ 1080i/p@24/50/60Hz; 4K2K@24/25/30Hz; 4K2K@50/60Hz (YUV444)
HDMI Cable Distance: 10m@1080p/8-bit; 10m@1080p/12-bit; 5m@4K2K
Power Supply: 100-240vAC to +5vDC 2.6A (US/EU standards; CE/FCC/UL certified)
Power Consumption (watts):
Dimensions (cm;s): 9.7 (w) x 5.0 (d) x 2.3 (h) with jacks
Weight (grams): 70g
Chassis: Black Metal
Operating Temperature: 0c ~ 40c / 32f ~ 104f
Relative Humidity: 20% ~ 90% RH (non-condensing)
ESD Protection: Human Body Model: ±8kV (air-gap); ±4kV (contact)

Power Supplies:

Multi-Voltage Power Supply : 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive) Screw Connector

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV) USB (Service)	HDMI (HDTV)

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i 4K x 2K 3D	HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i 4K x 2K 3D

What is included with 4K2K HDMI Analyser and Enhancer

1 x 4K2K HDMI Analyser And Enhancer
1 x 100-240vAC to +5vDC 2.6A PSU
1 x Product Manual
1 x 100-240VAC to 5V DC 2.6A Switch Mode Power Supply (Center Positive) Screw Connector

4K2K HDMI Analyser and Enhancer Images

4K2K HDMI Analyser and Enhancer - Full View

4K2K HDMI Analyser and Enhancer - Front View

4K2K HDMI Analyser and Enhancer - Back View

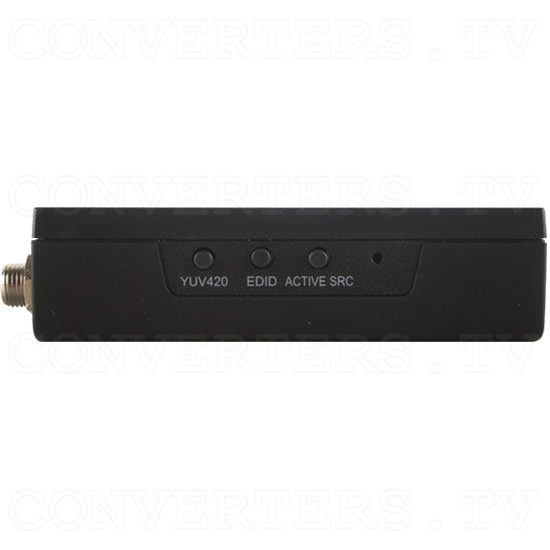

4K2K HDMI Analyser and Enhancer - Side View

4K2K HDMI Analyser and Enhancer - Power Supply 110v OR 240v
