UHD 4K 6G Audio Extractor w/ HDCP2.2

save 29%

Product ID :

15523

Price :

150.00 USD (Change Currency)

RRP: 210.00 USD

(less sale discount 60.00 USD )

Available :

Stock

Freight Quote On Sale Contact Staff

The UHD 4K 6G Audio Extractor w/ HDCP2.2 extracts the HDMI audio with up to 192kHz sampling rate and converts it to analog stereo audio, for connection to external powered speakers or an Audio Amplifier.

Both the input and output HDMI ports support 4K UHD video, up to 4K@60Hz (YUV 4:4:4, 8-bit) and the pass-through of LPCM 7.1CH, bitstream and HD bitstream audio formats. The LPCM 2CH audio is extracted and presented as separate S/PDIF 2CH digital and RCA 2CH analog audio output ports.

The UHD 4K 6G Audio Extractor w/ HDCP2.2 has in-built EDID management support, which allows the user to select from three EDID sources. These include from the attached TV, or from two pre-set User EDID's, which may be edited by the use of optional PC software.

All in all, a very powerful tool ideal for high quality audio distribution from HDMI sources to a Home Theatre video and audio system.

Unit Dimensions:	12.8 x 11.7 x 3.0 cm	Shipping Weight:	0.50 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (1.08 MB)

UHD 4K 6G Audio Extractor w/ HDCP2.2 - Product Details

Features:

HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an adaptor
HDCP 1.4 and 2.2 compliant
Supports HDMI resolutions up to 3840*2160@60Hz (YUV 4:4:4, 8-bit) & 4096*2160@60Hz(YUV 4:4:4, 8-bit)
Supports 48-bit Deep Colour up to 1080p60
Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over HDMI
Analog audio extraction supports LPCM 2CH sources
Optical S/PDIF audio extraction supports LPCM 2CH sources
Supports HDMI and S/PDIF audio sampling rates up to 192kHz
Provides EDID management with EDID by-pass (TV) and two User modifiable EDID's
PC based EDID management software tool support
Supports RS-232 style control via a Virtual COM port over USB

Specifications:

Video Bandwidth: 18Gbps (600MHz)
Input Ports: 1 x HDMI; 1 x mini-USB (service and control only)
Output Ports: 1 x HDMI; 1 x Optical S/PDIF (digital audio); 2 x RCA (analog audio)
HDMI Audio Sampling Rate: Up to 192kHz
Optical Audio Sampling Rate: Up to 192kHz
HDMI Cable I/O Distance: 10m-1080p@60Hz, 12-bit; 15m-1080p@60Hz, 8-bit
HDMI Audio Format: LPCM 2.0/5.1/7.1, standard Bitstream, HD Bitstream
Optical Out Audio Format: LPCM 2.0, standard Bitstream
Analog Out Audio Format: 2 channel stereo
Power Supply: 100-240vAC to +5vDC 2.6 (US/EU standards; CE/FCC/UL approved)
Power Consumption (watts): 3.91w
Dimensions (cm's): 12.8 (w) x 10.8 (d) x 2.5 (h) case only; 12.8 (w) x 11.7 (d) x 3.0 (h) all included
Weight (grams): 358g
Chassis: Black Metal
Operating Temperature: 0c ~ 40c / 32f ~ 104f
Relative Humidity: 20% ~ 90% RH (non-condensing)
ESD Protection: Human Body Model: +/- 8kV (air-gap discahrge); +/-4kV (contact discharge)

Video and Audio Connection Type

Connects From :	Connects To :
HDMI (HDTV) USB (Service)	HDMI (HDTV) Optical TOSlink S/PDIF Analog Stereo L/R Jacks

Video and Audio Signal Conversion

Converts From :	Converts To :
HDTV 480p HDTV 576p HDTV 720p HDTV 1080p HDTV 1080i HDTV 480i HDTV 576i 4K x 2K 3D	Optical S/PDIF Analog Stereo L/R Audio

What is included with UHD 4K 6G Audio Extractor w/ HDCP2.2

1 x UHD 4K 6G Audio Extractor w/ HDCP2.2
1 x Product Manual

UHD 4K 6G Audio Extractor w/ HDCP2.2 Images

UHD 4K 6G Audio Extractor w/ HDCP2.2 - ID#15523 Full View.png

UHD 4K 6G Audio Extractor w/ HDCP2.2 - ID#15523 Front View.png

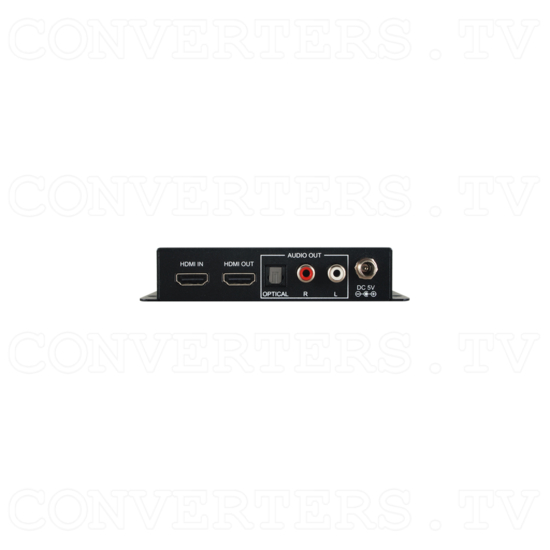

UHD 4K 6G Audio Extractor w/ HDCP2.2 - ID#15523 Back View.png
