Convert CGA (15k frequency) into VGA (31k frequency). This image can be displayed on a CRT or TFT monitor with sustaining contrastive modification. The unit can accept both seperate and combined syncs. This product is NOT suitable for output to LCD panel.
RGB, CGA to VGA Converter (640 x 480)

RGB, CGA to VGA Converter (640 x 480)



Made In Taiwan

Superseded

This product has been replaced by :
CGA to VGA Converter - LCD Suitable

CGA to VGA Converter - LCD Suitable
44.00 USD
View other products in this category
YUV to RGB Converter CM-333 / CYU-333

YUV to RGB Converter CM-333 / CYU-333
69.00 USD


Convert CGA (15k frequency) into VGA (31k frequency). This image can be displayed on a CRT or TFT monitor with sustaining contrastive modification. The unit can accept both seperate and combined syncs.

This product is NOT suitable for output to LCD panel.


Unit Dimensions: 9.5 x 1.3 x 13.0 cm Shipping Weight: 0.21 kg
Location: NSW, Australia Item Type: RGB Converters
Condition: New Warranty : 12 Months
Manual : PDF User Manual (100.01 KB)



RGB, CGA to VGA Converter (640 x 480) - Product Details


Features:

  • 14.5k ~ 16.5k CGA to 29.0k ~ 33.0k VGA conversion
  • Supports combined and separated frequencies of horizontal and vertical sync
  • +5v needed for PCB to work

Specifications:

  • Input 1 (J01) Sync. Combination CGA Signal
  • Video: ANALOG rgb 15Vpp/1K Ohms (adjust by VR01)
  • Sync.: Negative H/V, TTL 3.5~ 5.0Vpp
  • Input 2 (J02) Sync. Separation CGA Signal
  • Video: Analog RGB 15Vpp/ 1K Ohms (adjust by VR01)
  • Sync.: Negative/ Positive, H, V TTL 3.5 ~ 5.0Vpp
  • Output (J03)VGA/ SVGA Signal
  • Video: Analog RGB 0.7Vpp/75 Ohms
  • Sync. Negative Separate TTL 5.0Vpp
  • Input 1 (J01) CGA Video Connector: 5Pin (R, G, B, GND, Sync.)
  • Input 2 (J02) CGA Video Connector: 8Pin (R,G,B, GND, H, V, NC, GND)
  • Output (J03) VGA/ SVGA Video Connector: 15Pin D-Sub(Standard)
  • Adjustor: Contrastive Adjustor (VR01)


Video and Audio Connection Type


Connects From : Connects To :
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA (15K)
  • VGA 15pin D-Sub (31K+)


Video and Audio Signal Conversion


Converts From : Converts To :
  • CGA (15k)
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • VGA (640 x 480 @ 4:3)


What is included with RGB, CGA to VGA Converter (640 x 480)


  • 1 x RGB, CGA to VGA Converter (640 x 480)
  • 1 x Product Manual
  • 1 x 6 Pin RGB Cable
  • 1 x 5 Pin RGB Cable
  • 1 x Power Cord

RGB, CGA to VGA Converter (640 x 480) Images


RGB, CGA to VGA Converter (640 x 480) - Full View
RGB, CGA to VGA Converter (640 x 480) - Full View
RGB, CGA to VGA Converter (640 x 480) - Front View
RGB, CGA to VGA Converter (640 x 480) - Front View
RGB, CGA to VGA Converter (640 x 480) - Back View
RGB, CGA to VGA Converter (640 x 480) - Back View
RGB, CGA to VGA Converter (640 x 480) - Left View
RGB, CGA to VGA Converter (640 x 480) - Left View
RGB, CGA to VGA Converter (640 x 480) - Right View
RGB, CGA to VGA Converter (640 x 480) - Right View
RGB, CGA to VGA Converter (640 x 480) - Top View
RGB, CGA to VGA Converter (640 x 480) - Top View

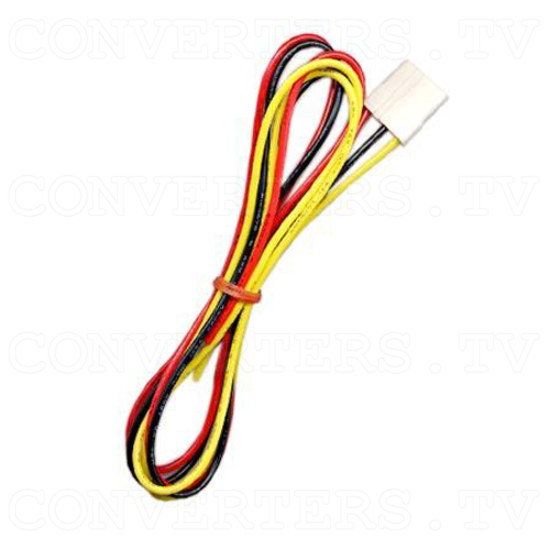

RGB, CGA to VGA Converter (640 x 480) - 5 Pin RGB Cable
RGB, CGA to VGA Converter (640 x 480) - 5 Pin RGB Cable
RGB, CGA to VGA Converter (640 x 480) - Open Wire 6 Pin RGB Cable
RGB, CGA to VGA Converter (640 x 480) - Open Wire 6 Pin RGB Cable
RGB, CGA to VGA Converter (640 x 480) - Power Cord
RGB, CGA to VGA Converter (640 x 480) - Power Cord
RGB, CGA to VGA Converter (640 x 480) - Instruction Sheet
RGB, CGA to VGA Converter (640 x 480) - Instruction Sheet
RGB, CGA to VGA Converter (640 x 480) - Full Kit
RGB, CGA to VGA Converter (640 x 480) - Full Kit
