A CGA to VGA Converter - LCD Suitable allowing a 15khz RGB signal to display on PC monitor or TFT monitor at 640x480. This converter has been pre-programmed to work via dipswitch settings for the following gaming PCBs; -Normal ICB CM99, Subsino -CYE -IGS -Amatic -Jolly Joker -Witch Game -Cuty Line -Dyna X -Psikyo -Bigigo -For Seperate Sync
CGA to VGA Converter - LCD Suitable

CGA to VGA Converter - LCD Suitable

  save 66%

Made In Taiwan

Product ID : 00077
Price : 41.45 USD (Change Currency)

RRP: 123.65 USD (less sale discount 82.20 USD )
Available : Stock


  Freight Quote On Sale Extended Warranty
Contact Staff


A CGA to VGA Converter - LCD Suitable allowing a 15khz RGB signal to display on PC monitor or TFT monitor at 640x480.

This converter has been pre-programmed to work via dipswitch settings for the following gaming PCBs;

  • Normal ICB CM99, Subsino
  • CYE
  • IGS
  • Amatic
  • Jolly Joker
  • Witch Game
  • Cuty Line
  • Dyna X
  • Psikyo
  • Bigigo
  • For Seperate Sync


Unit Dimensions: 11.5 x 1.3 x 9.0 cm Shipping Weight: 0.12 kg
Location: NSW, Australia Item Type: CGA Converters
Condition: New Warranty : 90 Days Warranty
Manual : PDF User Manual (104.6 KB)



CGA to VGA Converter - LCD Suitable - Product Details


Features:

  • CGA game board signal can display on PC Monitor or TFT monitor
  • Designed for low picture noise and detects a wide range in game
  • Low-resolution enhance to high-resolution
  • Enhances sharpness and tiny pixels
  • Support CGA and VGA input select bypass SW
  • Support multi-game board select by 16ch DIP SW
  • RGB gain by 3 VR
  • Non-Interlaced signal working

Specifications:

  • Power DC 8-16V 2.0W Max
  • Nominally +12vDC (centre positive +ve)

Signals:

  • Input 1 Sync Combine CGA
  • Video: Analog RGB 1-5 VP-P/1K ohms (adjust by VR)
  • Sync: Negative/Positive H/V TTL 3.5-5.0 VP-p
  • Input 2 SYNC Seperate CGA
  • Video: Analog RGB 0.7VP-p/75 ohms
  • Sync: Negative/Positive Seperate TTL 3.5-5.0 VP-P
  • Input 3 SVGA Bypass SVGA
  • Video: Analog RGB 0.7VP-p/75 ohms
  • Sync: Negative/Positive Seperate TTL 5.0 VP-P
  • Output: VGA/SVGA
  • Video: Analog RGB 0.7VP-p/75 ohms
  • Sync: Negative/Positive Seperate TTL 5.0 VP-P

Video Connector:

  • Input 1 CGA: 6 Pin (R,G,B,GND,H/V,N.C.)
  • Input 2 CGA: 6 Pin (R,G,B,GND,H,V)
  • Input 1 SVGA: 15 Pin D-SUB(Standard)
  • Output VGA/SVGA: 15 Pin D-SUB(Standard)

User Controls:

  • VGA Bypass switch
  • VR (R G B Gain adjust)
  • Dip Switch (select Game Board)

Environmental Limits:

  • Operating Temp: 0 to 55 degrees C
  • Storage Temp: -20 to 70 degrees C

Factory Presets:

  • Timing for Input 1:
  • H-Freq 15.45 V-Freq 60
  • H-Freq 15.6 V-Freq 59.1
  • H-Freq 15.6 V-Freq 55.3
  • Output H-Freq 30.9 V-Freq 60
  • Output H-Freq 31.2 V-Freq 59.1
  • Output H-Freq 31.2 V-Freq 55.3
  • Timing for Input 2
  • H-Freq 14.5-16.5 V-Freq 50-65
  • Output H-Freq 29-33 V-Freq 50-65
  • Timing for Input 3
  • H-Freq All VGA/SVGA Type V-Freq All VGA/SVGA Type
  • Output H-Freq Same Input Type V-Freq Same Input


Video and Audio Connection Type


Connects From : Connects To :
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA (15K)
  • VGA 15pin D-Sub (31K+)


Video and Audio Signal Conversion


Converts From : Converts To :
  • CGA (15k)
  • RGB Combined Sync - RGBH+V
  • RGB Separate Sync - RGBHV
  • CGA Combined Sync (15khz)
  • CGA Separate Sync (15khz)
  • VGA (640 x 480 @ 4:3)


What is included with CGA to VGA Converter - LCD Suitable


  • 1 x RGB, CGA to VGA Converter (LCD Suitable)
  • 1 x Product Manual
  • 1 x 6 Pin RGB Cable
  • 1 x Open Wire Power Cord

Additional Features


  • PC Bypass

CGA to VGA Converter - LCD Suitable Images


CGA to VGA Converter - LCD Suitable - Full View
CGA to VGA Converter - LCD Suitable - Full View
CGA to VGA Converter - LCD Suitable - Front View
CGA to VGA Converter - LCD Suitable - Front View
CGA to VGA Converter - LCD Suitable - Back View
CGA to VGA Converter - LCD Suitable - Back View
CGA to VGA Converter - LCD Suitable - Side View
CGA to VGA Converter - LCD Suitable - Side View
CGA to VGA Converter - LCD Suitable - Top View
CGA to VGA Converter - LCD Suitable - Top View

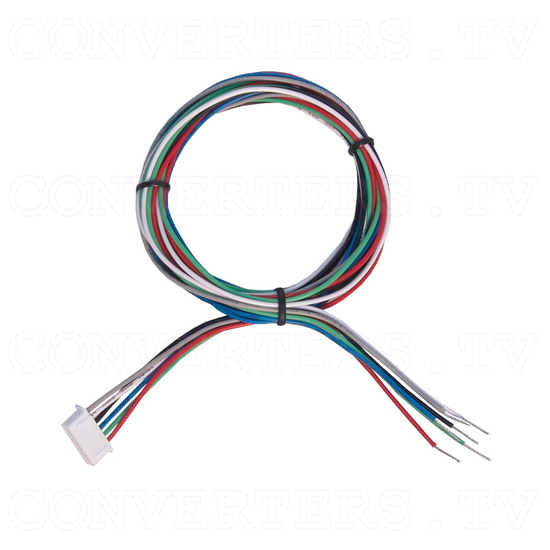

CGA to VGA Converter - LCD Suitable - Open Wire 6 Pin RGB Cable
CGA to VGA Converter - LCD Suitable - Open Wire 6 Pin RGB Cable
CGA to VGA Converter - LCD Suitable - Open Wire Power Cord
CGA to VGA Converter - LCD Suitable - Open Wire Power Cord
CGA to VGA Converter - LCD Suitable - Manual
CGA to VGA Converter - LCD Suitable - Manual

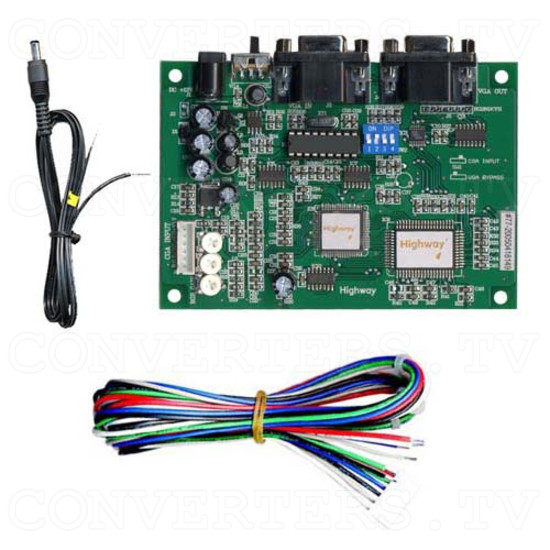

CGA to VGA Converter - LCD Suitable - Full Kit
CGA to VGA Converter - LCD Suitable - Full Kit
