CGA RGB and Component YCbCr to WXGA Upscaler

save 38%

Product ID :

15014

Price :

93.10 USD (Change Currency)

RRP: 149.30 USD

(less sale discount 56.20 USD )

Available :

2-4 Weeks

Freight Quote On Sale Contact Staff

The CGA/RGB and Component to PC VGA Upscaler will accept an analog CGA or Component YCbCr video signal and upscales the signal for display on a PC screen, enabling connection of Standard Definition CGA/RGB or Component signal sources to modern LCD panels.

The CGA/RGB and Component to PC VGA Upscaler enables you to connect your Standard Definition CGA/RGB or Component signal source from an arcade game board or DVD player to an LCD computer monitor.

Newly added advanced features such as Phase and H/V position adjustment, plus Field Invert settings, are accessible by OSD menu adjustments. Also included are Input Colour Space (RGB or YCbCr), System Information, System Reset and Exit.

Settings and parameters are held in memory (last memory recall), even after total power off, and the Operating System Reset will reload default system values. These added features make the CGA RGB and Component to PC VGA Upscaler a powerful upgrade tool for enhanced viewing pleasure.

Easy to instal and setup. No driver software required. Plug-n-Play!

Unit Dimensions:	11.0 x 6.4 x 2.6 cm	Shipping Weight:	0.44 kg
Location:	NSW, Australia	Item Type:
Condition:	New	Warranty :	12 Months
Certificates :	CE, CTick, UL	Manual :	User Manual (250.4 KB)

CGA RGB and Component YCbCr to WXGA Upscaler - Product Details

Features:

Accepts CGA RGB or Component YCbCr video formats and upscales to various PC formats
Scales CGA 15.7kHz RGB or Component 480i/576i up to VGA/XGA/WXGA PC resolution
50/60Hz frame rate conversion ensures glitch-free display
The input of RGB is auto detected and can be RGBHV, RGB H+V or RGsB(sync. on G)
Automatic 3:2/2:2 film mode detection
High-resolution output picture
OSD menu display adjust features (Phase adjust, Manual Input selection, Hor/Ver positioning, Field Inversion, System reset, Exit)
Plug & Play - no driver software required and easy to set up for use
Palm size design for compact installation

Specifications:

Input Port: 1 x VGA 15pin D-sub female type
Accepted Input Signals: Analog CGA 15.7kHz RGB 0.7v p-p 75ohm; Hsync/Vsync 2v p-p ~ 5v p-p 75ohm; YCbCr: Y - 1v p-p 75ohm, CbCr - 0.7v p-p 75ohm
Accepted Input Timings:
CGA: Horizontal = 15.750kHz / Vertical = 60Hz - Non Interlace
480i: Horizontal = 15.734kHz / Vertical = 59.94Hz - Non Interlace
576i: Horizontal = 15.625kHz / Vertical = 50Hz - Interlace
Input Format Auto Detection: CGA RGB or Component YCbCr
Input Sync Auto Detection: RGBHV(combined); RGBH+V(separate); RGsB(sync on green)
Output Port: 1 x VGA 15pin D-sub female type
Output Timing Selection: VGA (640*480); XGA (1024*768); WXGA (1366*768)
Output Sync: RGBHV(combined); RGBH+V(separate)
Power Supply: 100-240vAC to 5vDC 1.2A (US/EU Standards; CE/FCC/UL certified)
Power Consumption: 1A
Dimensions (cm's): 11.0(w) x 6.4(h) x 2.6(d)
Weight (gms): 96g
Chassis and Colour: Durable Plastic / White
Operating Temp: 0c ~ 40c / 32f ~ 104f
Storage Temp: -20c ~ 60c / -4f ~ 140f
Relative Humidity: 20 ~ 90% RH (non-condensing)

Power Supplies:

Multi-Voltage Power Supply : Switch mode Power Supply 100-240v 50-60Hz 0.3A, DC 5V - 1.2A

Video and Audio Connection Type

Connects From :	Connects To :
VGA 15pin D-Sub (31K+)	VGA 15pin D-Sub (31K+)

Video and Audio Signal Conversion

Converts From :	Converts To :
CGA (15k) RGB (15K Video) RGB Sync on Green RGsB HDTV 480i HDTV 576i RGB Combined Sync - RGBH+V RGB Separate Sync - RGBHV CGA Combined Sync (15khz) CGA Separate Sync (15khz) CGA Sync on Green (15khz)	VGA (640 x 480 @ 4:3) XGA (1024 x 768 @ 4:3) WXGA HD (1280 x 720 @ 16:9)

What is included with CGA RGB and Component YCbCr to WXGA Upscaler

1 x CGA RGB and Component YCbCr to WXGA Upscaler
1 x Product Manual
1 x Switch mode Power Supply 100-240v to DC 5V - 1.2A

CGA RGB and Component YCbCr to WXGA Upscaler Images

CGA RGB and Component YCbCr to WXGA Upscaler - Full View

CGA RGB and Component YCbCr to WXGA Upscaler - Front View

CGA RGB and Component YCbCr to WXGA Upscaler - Back View

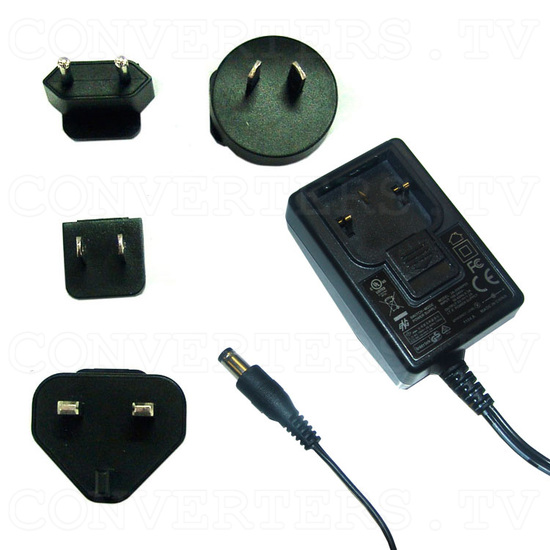

CGA RGB and Component YCbCr to WXGA Upscaler - Power Supply 110v OR 240v

CGA RGB and Component YCbCr to WXGA Upscaler - Full Kit
